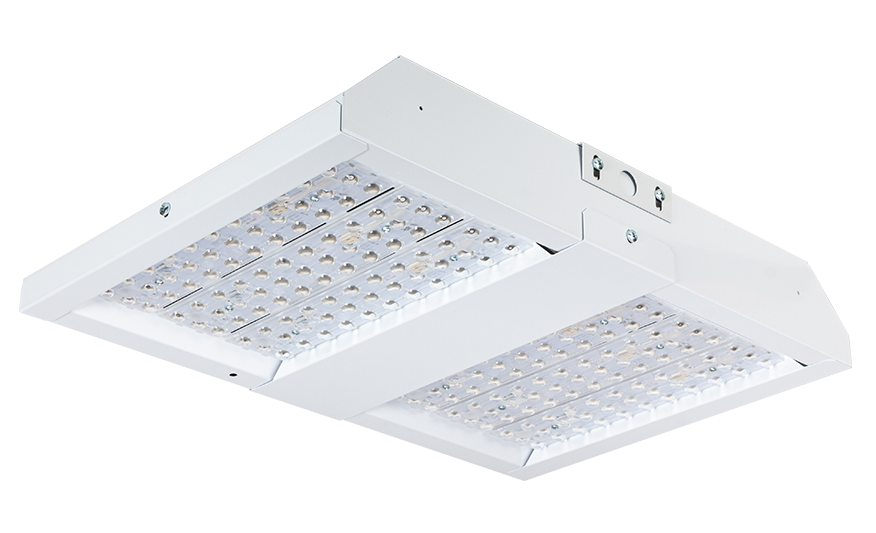

EXPO
High Output Low/High bay with Extra Wide Optic
- TM66 Certified options available for specification
- Suitable for sports halls, industrial-warehousing and warehousing areas up to 20m mounting height
- Tamlite I-Tech extra wide beam optic designed for high optical control
- Tamlite I-Tech optic designed for high optical control
- Versatile high/low bay luminaire
- Can save up to 60% energy
- Gear options including DALI and emergency available
- IP65 version also available
- Made in Britain
- CRI: Ra>80
- Steel body finished in white (RAL 9016)
- Integral driver
- Supplied in neutral white (4000K) LED
- Up to 168 lumens per Watt efficacy
Product Filter
If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.
| Order Code | Description | lm | W | lm/W | Dia(mm) | H(mm) | L(mm) | W(mm) | D(mm) |
|---|---|---|---|---|---|---|---|---|---|
| EXP630ECW | 43W - Extra Wide Beam - 5000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ECWA3 | 43W - Extra Wide Beam - 5000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ECWA3V2M | 43W - Extra Wide Beam - 5000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ECWD | 43W - Extra Wide Beam - 5000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ECWD3 | 43W - Extra Wide Beam - 5000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ECWD3V2M | 43W - Extra Wide Beam - 5000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ECWDA3 | 43W - Extra Wide Beam - 5000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ECWDA3V3M | 43W - Extra Wide Beam - 5000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ECWDD3 | 43W - Extra Wide Beam - 5000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ECWDD3V3M | 43W - Extra Wide Beam - 5000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ECWDM3 | 43W - Extra Wide Beam - 5000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ECWDM3V3M | 43W - Extra Wide Beam - 5000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ECWDV3M | 43W - Extra Wide Beam - 5000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ECWM3 | 43W - Extra Wide Beam - 5000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ECWM3V2M | 43W - Extra Wide Beam - 5000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ECWV2M | 43W - Extra Wide Beam - 5000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630EDL | 43W - Extra Wide Beam - 6000K-6500K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630EDLA3 | 43W - Extra Wide Beam - 6000K-6500K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630EDLA3V2M | 43W - Extra Wide Beam - 6000K-6500K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630EDLD | 43W - Extra Wide Beam - 6000K-6500K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630EDLD3 | 43W - Extra Wide Beam - 6000K-6500K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630EDLD3V2M | 43W - Extra Wide Beam - 6000K-6500K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630EDLDA3 | 43W - Extra Wide Beam - 6000K-6500K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630EDLDA3V3M | 43W - Extra Wide Beam - 6000K-6500K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630EDLDD3 | 43W - Extra Wide Beam - 6000K-6500K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630EDLDD3V3M | 43W - Extra Wide Beam - 6000K-6500K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630EDLDM3 | 43W - Extra Wide Beam - 6000K-6500K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630EDLDM3V3M | 43W - Extra Wide Beam - 6000K-6500K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630EDLDV3M | 43W - Extra Wide Beam - 6000K-6500K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630EDLM3 | 43W - Extra Wide Beam - 6000K-6500K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630EDLM3V2M | 43W - Extra Wide Beam - 6000K-6500K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630EDLV2M | 43W - Extra Wide Beam - 6000K-6500K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ENW | 43W - Extra Wide Beam - 4000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ENWA3 | 43W - Extra Wide Beam - 4000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ENWA3V2M | 43W - Extra Wide Beam - 4000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ENWD | 43W - Extra Wide Beam - 4000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ENWD3 | 43W - Extra Wide Beam - 4000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ENWD3V2M | 43W - Extra Wide Beam - 4000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ENWDA3 | 43W - Extra Wide Beam - 4000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ENWDA3V3M | 43W - Extra Wide Beam - 4000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ENWDD3 | 43W - Extra Wide Beam - 4000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ENWDD3V3M | 43W - Extra Wide Beam - 4000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ENWDM3 | 43W - Extra Wide Beam - 4000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ENWDM3V3M | 43W - Extra Wide Beam - 4000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ENWDV3M | 43W - Extra Wide Beam - 4000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ENWM3 | 43W - Extra Wide Beam - 4000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ENWM3V2M | 43W - Extra Wide Beam - 4000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP630ENWV2M | 43W - Extra Wide Beam - 4000K | 6300 | 43 | 147 | 0 | 0 | 380 | 560 | 85 |
| EXP960ECW | 60W - Extra Wide Beam - 5000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ECWA3 | 60W - Extra Wide Beam - 5000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ECWA3V2M | 60W - Extra Wide Beam - 5000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ECWD | 60W - Extra Wide Beam - 5000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ECWD3 | 60W - Extra Wide Beam - 5000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ECWD3V2M | 60W - Extra Wide Beam - 5000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ECWDA3 | 60W - Extra Wide Beam - 5000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ECWDA3V3M | 60W - Extra Wide Beam - 5000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ECWDD3 | 60W - Extra Wide Beam - 5000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ECWDD3V3M | 60W - Extra Wide Beam - 5000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ECWDM3 | 60W - Extra Wide Beam - 5000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ECWDM3V3M | 60W - Extra Wide Beam - 5000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ECWDV3M | 60W - Extra Wide Beam - 5000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ECWM3 | 60W - Extra Wide Beam - 5000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ECWM3V2M | 60W - Extra Wide Beam - 5000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ECWV2M | 60W - Extra Wide Beam - 5000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960EDL | 60W - Extra Wide Beam - 6000K-6500K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960EDLA3 | 60W - Extra Wide Beam - 6000K-6500K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960EDLA3V2M | 60W - Extra Wide Beam - 6000K-6500K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960EDLD | 60W - Extra Wide Beam - 6000K-6500K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960EDLD3 | 60W - Extra Wide Beam - 6000K-6500K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960EDLD3V2M | 60W - Extra Wide Beam - 6000K-6500K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960EDLDA3 | 60W - Extra Wide Beam - 6000K-6500K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960EDLDA3V3M | 60W - Extra Wide Beam - 6000K-6500K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960EDLDD3 | 60W - Extra Wide Beam - 6000K-6500K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960EDLDD3V3M | 60W - Extra Wide Beam - 6000K-6500K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960EDLDM3 | 60W - Extra Wide Beam - 6000K-6500K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960EDLDM3V3M | 60W - Extra Wide Beam - 6000K-6500K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960EDLDV3M | 60W - Extra Wide Beam - 6000K-6500K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960EDLM3 | 60W - Extra Wide Beam - 6000K-6500K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960EDLM3V2M | 60W - Extra Wide Beam - 6000K-6500K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960EDLV2M | 60W - Extra Wide Beam - 6000K-6500K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ENW | 60W - Extra Wide Beam - 4000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ENWA3 | 60W - Extra Wide Beam - 4000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ENWA3V2M | 60W - Extra Wide Beam - 4000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ENWD | 60W - Extra Wide Beam - 4000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ENWD3 | 60W - Extra Wide Beam - 4000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ENWD3V2M | 60W - Extra Wide Beam - 4000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ENWDA3 | 60W - Extra Wide Beam - 4000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ENWDA3V3M | 60W - Extra Wide Beam - 4000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ENWDD3 | 60W - Extra Wide Beam - 4000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ENWDD3V3M | 60W - Extra Wide Beam - 4000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ENWDM3 | 60W - Extra Wide Beam - 4000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ENWDM3V3M | 60W - Extra Wide Beam - 4000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ENWDV3M | 60W - Extra Wide Beam - 4000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ENWM3 | 60W - Extra Wide Beam - 4000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ENWM3V2M | 60W - Extra Wide Beam - 4000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP960ENWV2M | 60W - Extra Wide Beam - 4000K | 9600 | 60 | 160 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ECW | 74W - Extra Wide Beam - 5000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ECWA3 | 74W - Extra Wide Beam - 5000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ECWA3V2M | 74W - Extra Wide Beam - 5000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ECWD | 74W - Extra Wide Beam - 5000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ECWD3 | 74W - Extra Wide Beam - 5000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ECWD3V2M | 74W - Extra Wide Beam - 5000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ECWDA3 | 74W - Extra Wide Beam - 5000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ECWDA3V3M | 74W - Extra Wide Beam - 5000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ECWDD3 | 74W - Extra Wide Beam - 5000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ECWDD3V3M | 74W - Extra Wide Beam - 5000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ECWDM3 | 74W - Extra Wide Beam - 5000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ECWDM3V3M | 74W - Extra Wide Beam - 5000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ECWDV3M | 74W - Extra Wide Beam - 5000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ECWM3 | 74W - Extra Wide Beam - 5000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ECWM3V2M | 74W - Extra Wide Beam - 5000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ECWV2M | 74W - Extra Wide Beam - 5000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200EDL | 74W - Extra Wide Beam - 6000K-6500K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200EDLA3 | 74W - Extra Wide Beam - 6000K-6500K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200EDLA3V2M | 74W - Extra Wide Beam - 6000K-6500K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200EDLD | 74W - Extra Wide Beam - 6000K-6500K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200EDLD3 | 74W - Extra Wide Beam - 6000K-6500K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200EDLD3V2M | 74W - Extra Wide Beam - 6000K-6500K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200EDLDA3 | 74W - Extra Wide Beam - 6000K-6500K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200EDLDA3V3M | 74W - Extra Wide Beam - 6000K-6500K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200EDLDD3 | 74W - Extra Wide Beam - 6000K-6500K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200EDLDD3V3M | 74W - Extra Wide Beam - 6000K-6500K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200EDLDM3 | 74W - Extra Wide Beam - 6000K-6500K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200EDLDM3V3M | 74W - Extra Wide Beam - 6000K-6500K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200EDLDV3M | 74W - Extra Wide Beam - 6000K-6500K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200EDLM3 | 74W - Extra Wide Beam - 6000K-6500K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200EDLM3V2M | 74W - Extra Wide Beam - 6000K-6500K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200EDLV2M | 74W - Extra Wide Beam - 6000K-6500K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ENW | 74W - Extra Wide Beam - 4000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ENWA3 | 74W - Extra Wide Beam - 4000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ENWA3V2M | 74W - Extra Wide Beam - 4000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ENWD | 74W - Extra Wide Beam - 4000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ENWD3 | 74W - Extra Wide Beam - 4000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ENWD3V2M | 74W - Extra Wide Beam - 4000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ENWDA3 | 74W - Extra Wide Beam - 4000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ENWDA3V3M | 74W - Extra Wide Beam - 4000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ENWDD3 | 74W - Extra Wide Beam - 4000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ENWDD3V3M | 74W - Extra Wide Beam - 4000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ENWDM3 | 74W - Extra Wide Beam - 4000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ENWDM3V3M | 74W - Extra Wide Beam - 4000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ENWDV3M | 74W - Extra Wide Beam - 4000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ENWM3 | 74W - Extra Wide Beam - 4000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ENWM3V2M | 74W - Extra Wide Beam - 4000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1200ENWV2M | 74W - Extra Wide Beam - 4000K | 12100 | 74 | 164 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ECW | 105W - Extra Wide Beam - 5000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ECWA3 | 105W - Extra Wide Beam - 5000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ECWA3V2M | 105W - Extra Wide Beam - 5000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ECWD | 105W - Extra Wide Beam - 5000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ECWD3 | 105W - Extra Wide Beam - 5000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ECWD3V2M | 105W - Extra Wide Beam - 5000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ECWDA3 | 105W - Extra Wide Beam - 5000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ECWDA3V3M | 105W - Extra Wide Beam - 5000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ECWDD3 | 105W - Extra Wide Beam - 5000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ECWDD3V3M | 105W - Extra Wide Beam - 5000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ECWDM3 | 105W - Extra Wide Beam - 5000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ECWDM3V3M | 105W - Extra Wide Beam - 5000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ECWDV3M | 105W - Extra Wide Beam - 5000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ECWM3 | 105W - Extra Wide Beam - 5000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ECWM3V2M | 105W - Extra Wide Beam - 5000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ECWV2M | 105W - Extra Wide Beam - 5000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630EDL | 105W - Extra Wide Beam - 6000K-6500K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630EDLA3 | 105W - Extra Wide Beam - 6000K-6500K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630EDLA3V2M | 105W - Extra Wide Beam - 6000K-6500K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630EDLD | 105W - Extra Wide Beam - 6000K-6500K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630EDLD3 | 105W - Extra Wide Beam - 6000K-6500K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630EDLD3V2M | 105W - Extra Wide Beam - 6000K-6500K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630EDLDA3 | 105W - Extra Wide Beam - 6000K-6500K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630EDLDA3V3M | 105W - Extra Wide Beam - 6000K-6500K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630EDLDD3 | 105W - Extra Wide Beam - 6000K-6500K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630EDLDD3V3M | 105W - Extra Wide Beam - 6000K-6500K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630EDLDM3 | 105W - Extra Wide Beam - 6000K-6500K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630EDLDM3V3M | 105W - Extra Wide Beam - 6000K-6500K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630EDLDV3M | 105W - Extra Wide Beam - 6000K-6500K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630EDLM3 | 105W - Extra Wide Beam - 6000K-6500K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630EDLM3V2M | 105W - Extra Wide Beam - 6000K-6500K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630EDLV2M | 105W - Extra Wide Beam - 6000K-6500K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ENW | 105W - Extra Wide Beam - 4000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ENWA3 | 105W - Extra Wide Beam - 4000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ENWA3V2M | 105W - Extra Wide Beam - 4000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ENWD | 105W - Extra Wide Beam - 4000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ENWD3 | 105W - Extra Wide Beam - 4000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ENWD3V2M | 105W - Extra Wide Beam - 4000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ENWDA3 | 105W - Extra Wide Beam - 4000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ENWDA3V3M | 105W - Extra Wide Beam - 4000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ENWDD3 | 105W - Extra Wide Beam - 4000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ENWDD3V3M | 105W - Extra Wide Beam - 4000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ENWDM3 | 105W - Extra Wide Beam - 4000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ENWDM3V3M | 105W - Extra Wide Beam - 4000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ENWDV3M | 105W - Extra Wide Beam - 4000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ENWM3 | 105W - Extra Wide Beam - 4000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ENWM3V2M | 105W - Extra Wide Beam - 4000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1630ENWV2M | 105W - Extra Wide Beam - 4000K | 16300 | 105 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ECW | 109W - Extra Wide Beam - 5000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ECWA3 | 109W - Extra Wide Beam - 5000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ECWA3V2M | 109W - Extra Wide Beam - 5000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ECWD | 109W - Extra Wide Beam - 5000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ECWD3 | 109W - Extra Wide Beam - 5000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ECWD3V2M | 109W - Extra Wide Beam - 5000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ECWDA3 | 109W - Extra Wide Beam - 5000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ECWDA3V3M | 109W - Extra Wide Beam - 5000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ECWDD3 | 109W - Extra Wide Beam - 5000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ECWDD3V3M | 109W - Extra Wide Beam - 5000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ECWDM3 | 109W - Extra Wide Beam - 5000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ECWDM3V3M | 109W - Extra Wide Beam - 5000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ECWDV3M | 109W - Extra Wide Beam - 5000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ECWM3 | 109W - Extra Wide Beam - 5000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ECWM3V2M | 109W - Extra Wide Beam - 5000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ECWV2M | 109W - Extra Wide Beam - 5000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800EDL | 109W - Extra Wide Beam - 6000K-6500K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800EDLA3 | 109W - Extra Wide Beam - 6000K-6500K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800EDLA3V2M | 109W - Extra Wide Beam - 6000K-6500K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800EDLD | 109W - Extra Wide Beam - 6000K-6500K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800EDLD3 | 109W - Extra Wide Beam - 6000K-6500K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800EDLD3V2M | 109W - Extra Wide Beam - 6000K-6500K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800EDLDA3 | 109W - Extra Wide Beam - 6000K-6500K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800EDLDA3V3M | 109W - Extra Wide Beam - 6000K-6500K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800EDLDD3 | 109W - Extra Wide Beam - 6000K-6500K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800EDLDD3V3M | 109W - Extra Wide Beam - 6000K-6500K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800EDLDM3 | 109W - Extra Wide Beam - 6000K-6500K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800EDLDM3V3M | 109W - Extra Wide Beam - 6000K-6500K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800EDLDV3M | 109W - Extra Wide Beam - 6000K-6500K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800EDLM3 | 109W - Extra Wide Beam - 6000K-6500K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800EDLM3V2M | 109W - Extra Wide Beam - 6000K-6500K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800EDLV2M | 109W - Extra Wide Beam - 6000K-6500K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ENW | 109W - Extra Wide Beam - 4000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ENWA3 | 109W - Extra Wide Beam - 4000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ENWA3V2M | 109W - Extra Wide Beam - 4000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ENWD | 109W - Extra Wide Beam - 4000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ENWD3 | 109W - Extra Wide Beam - 4000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ENWD3V2M | 109W - Extra Wide Beam - 4000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ENWDA3 | 109W - Extra Wide Beam - 4000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ENWDA3V3M | 109W - Extra Wide Beam - 4000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ENWDD3 | 109W - Extra Wide Beam - 4000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ENWDD3V3M | 109W - Extra Wide Beam - 4000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ENWDM3 | 109W - Extra Wide Beam - 4000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ENWDM3V3M | 109W - Extra Wide Beam - 4000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ENWDV3M | 109W - Extra Wide Beam - 4000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ENWM3 | 109W - Extra Wide Beam - 4000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ENWM3V2M | 109W - Extra Wide Beam - 4000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP1800ENWV2M | 109W - Extra Wide Beam - 4000K | 18300 | 109 | 168 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ECW | 129W - Extra Wide Beam - 5000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ECWA3 | 129W - Extra Wide Beam - 5000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ECWA3V2H | 129W - Extra Wide Beam - 5000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ECWA3V2M | 129W - Extra Wide Beam - 5000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ECWD | 129W - Extra Wide Beam - 5000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ECWD3 | 129W - Extra Wide Beam - 5000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ECWD3V2H | 129W - Extra Wide Beam - 5000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ECWD3V2M | 129W - Extra Wide Beam - 5000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ECWDA3 | 129W - Extra Wide Beam - 5000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ECWDA3V3H | 129W - Extra Wide Beam - 5000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ECWDA3V3M | 129W - Extra Wide Beam - 5000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ECWDD3 | 129W - Extra Wide Beam - 5000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ECWDD3V3H | 129W - Extra Wide Beam - 5000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ECWDD3V3M | 129W - Extra Wide Beam - 5000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ECWDM3 | 129W - Extra Wide Beam - 5000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ECWDM3V3H | 129W - Extra Wide Beam - 5000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ECWDM3V3M | 129W - Extra Wide Beam - 5000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ECWDV3H | 129W - Extra Wide Beam - 5000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ECWDV3M | 129W - Extra Wide Beam - 5000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ECWM3 | 129W - Extra Wide Beam - 5000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ECWM3V2H | 129W - Extra Wide Beam - 5000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ECWM3V2M | 129W - Extra Wide Beam - 5000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ECWV2H | 129W - Extra Wide Beam - 5000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ECWV2M | 129W - Extra Wide Beam - 5000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100EDL | 129W - Extra Wide Beam - 6000K-6500K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100EDLA3 | 129W - Extra Wide Beam - 6000K-6500K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100EDLA3V2H | 129W - Extra Wide Beam - 6000K-6500K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100EDLA3V2M | 129W - Extra Wide Beam - 6000K-6500K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100EDLD | 129W - Extra Wide Beam - 6000K-6500K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100EDLD3 | 129W - Extra Wide Beam - 6000K-6500K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100EDLD3V2H | 129W - Extra Wide Beam - 6000K-6500K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100EDLD3V2M | 129W - Extra Wide Beam - 6000K-6500K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100EDLDA3 | 129W - Extra Wide Beam - 6000K-6500K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100EDLDA3V3H | 129W - Extra Wide Beam - 6000K-6500K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100EDLDA3V3M | 129W - Extra Wide Beam - 6000K-6500K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100EDLDD3 | 129W - Extra Wide Beam - 6000K-6500K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100EDLDD3V3H | 129W - Extra Wide Beam - 6000K-6500K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100EDLDD3V3M | 129W - Extra Wide Beam - 6000K-6500K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100EDLDM3 | 129W - Extra Wide Beam - 6000K-6500K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100EDLDM3V3H | 129W - Extra Wide Beam - 6000K-6500K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100EDLDM3V3M | 129W - Extra Wide Beam - 6000K-6500K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100EDLDV3H | 129W - Extra Wide Beam - 6000K-6500K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100EDLDV3M | 129W - Extra Wide Beam - 6000K-6500K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100EDLM3 | 129W - Extra Wide Beam - 6000K-6500K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100EDLM3V2H | 129W - Extra Wide Beam - 6000K-6500K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100EDLM3V2M | 129W - Extra Wide Beam - 6000K-6500K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100EDLV2H | 129W - Extra Wide Beam - 6000K-6500K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100EDLV2M | 129W - Extra Wide Beam - 6000K-6500K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ENW | 129W - Extra Wide Beam - 4000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ENWA3 | 129W - Extra Wide Beam - 4000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ENWA3V2H | 129W - Extra Wide Beam - 4000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ENWA3V2M | 129W - Extra Wide Beam - 4000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ENWD | 129W - Extra Wide Beam - 4000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ENWD3 | 129W - Extra Wide Beam - 4000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ENWD3V2H | 129W - Extra Wide Beam - 4000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ENWD3V2M | 129W - Extra Wide Beam - 4000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ENWDA3 | 129W - Extra Wide Beam - 4000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ENWDA3V3H | 129W - Extra Wide Beam - 4000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ENWDA3V3M | 129W - Extra Wide Beam - 4000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ENWDD3 | 129W - Extra Wide Beam - 4000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ENWDD3V3H | 129W - Extra Wide Beam - 4000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ENWDD3V3M | 129W - Extra Wide Beam - 4000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ENWDM3 | 129W - Extra Wide Beam - 4000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ENWDM3V3H | 129W - Extra Wide Beam - 4000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ENWDM3V3M | 129W - Extra Wide Beam - 4000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ENWDV3H | 129W - Extra Wide Beam - 4000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ENWDV3M | 129W - Extra Wide Beam - 4000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ENWM3 | 129W - Extra Wide Beam - 4000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ENWM3V2H | 129W - Extra Wide Beam - 4000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ENWM3V2M | 129W - Extra Wide Beam - 4000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ENWV2H | 129W - Extra Wide Beam - 4000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2100ENWV2M | 129W - Extra Wide Beam - 4000K | 21000 | 129 | 163 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ECW | 154W - Extra Wide Beam - 5000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ECWA3 | 154W - Extra Wide Beam - 5000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ECWA3V2H | 154W - Extra Wide Beam - 5000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ECWA3V2M | 154W - Extra Wide Beam - 5000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ECWD | 154W - Extra Wide Beam - 5000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ECWD3 | 154W - Extra Wide Beam - 5000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ECWD3V2H | 154W - Extra Wide Beam - 5000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ECWD3V2M | 154W - Extra Wide Beam - 5000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ECWDA3 | 154W - Extra Wide Beam - 5000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ECWDA3V3H | 154W - Extra Wide Beam - 5000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ECWDA3V3M | 154W - Extra Wide Beam - 5000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ECWDD3 | 154W - Extra Wide Beam - 5000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ECWDD3V3H | 154W - Extra Wide Beam - 5000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ECWDD3V3M | 154W - Extra Wide Beam - 5000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ECWDM3 | 154W - Extra Wide Beam - 5000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ECWDM3V3H | 154W - Extra Wide Beam - 5000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ECWDM3V3M | 154W - Extra Wide Beam - 5000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ECWDV3H | 154W - Extra Wide Beam - 5000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ECWDV3M | 154W - Extra Wide Beam - 5000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ECWM3 | 154W - Extra Wide Beam - 5000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ECWM3V2H | 154W - Extra Wide Beam - 5000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ECWM3V2M | 154W - Extra Wide Beam - 5000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ECWV2H | 154W - Extra Wide Beam - 5000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ECWV2M | 154W - Extra Wide Beam - 5000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400EDL | 154W - Extra Wide Beam - 6000K-6500K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400EDLA3 | 154W - Extra Wide Beam - 6000K-6500K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400EDLA3V2H | 154W - Extra Wide Beam - 6000K-6500K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400EDLA3V2M | 154W - Extra Wide Beam - 6000K-6500K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400EDLD | 154W - Extra Wide Beam - 6000K-6500K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400EDLD3 | 154W - Extra Wide Beam - 6000K-6500K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400EDLD3V2H | 154W - Extra Wide Beam - 6000K-6500K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400EDLD3V2M | 154W - Extra Wide Beam - 6000K-6500K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400EDLDA3 | 154W - Extra Wide Beam - 6000K-6500K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400EDLDA3V3H | 154W - Extra Wide Beam - 6000K-6500K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400EDLDA3V3M | 154W - Extra Wide Beam - 6000K-6500K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400EDLDD3 | 154W - Extra Wide Beam - 6000K-6500K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400EDLDD3V3H | 154W - Extra Wide Beam - 6000K-6500K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400EDLDD3V3M | 154W - Extra Wide Beam - 6000K-6500K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400EDLDM3 | 154W - Extra Wide Beam - 6000K-6500K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400EDLDM3V3H | 154W - Extra Wide Beam - 6000K-6500K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400EDLDM3V3M | 154W - Extra Wide Beam - 6000K-6500K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400EDLDV3H | 154W - Extra Wide Beam - 6000K-6500K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400EDLDV3M | 154W - Extra Wide Beam - 6000K-6500K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400EDLM3 | 154W - Extra Wide Beam - 6000K-6500K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400EDLM3V2H | 154W - Extra Wide Beam - 6000K-6500K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400EDLM3V2M | 154W - Extra Wide Beam - 6000K-6500K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400EDLV2H | 154W - Extra Wide Beam - 6000K-6500K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400EDLV2M | 154W - Extra Wide Beam - 6000K-6500K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ENW | 154W - Extra Wide Beam - 4000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ENWA3 | 154W - Extra Wide Beam - 4000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ENWA3V2H | 154W - Extra Wide Beam - 4000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ENWA3V2M | 154W - Extra Wide Beam - 4000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ENWD | 154W - Extra Wide Beam - 4000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ENWD3 | 154W - Extra Wide Beam - 4000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ENWD3V2H | 154W - Extra Wide Beam - 4000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ENWD3V2M | 154W - Extra Wide Beam - 4000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ENWDA3 | 154W - Extra Wide Beam - 4000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ENWDA3V3H | 154W - Extra Wide Beam - 4000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ENWDA3V3M | 154W - Extra Wide Beam - 4000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ENWDD3 | 154W - Extra Wide Beam - 4000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ENWDD3V3H | 154W - Extra Wide Beam - 4000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ENWDD3V3M | 154W - Extra Wide Beam - 4000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ENWDM3 | 154W - Extra Wide Beam - 4000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ENWDM3V3H | 154W - Extra Wide Beam - 4000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ENWDM3V3M | 154W - Extra Wide Beam - 4000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ENWDV3H | 154W - Extra Wide Beam - 4000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ENWDV3M | 154W - Extra Wide Beam - 4000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ENWM3 | 154W - Extra Wide Beam - 4000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ENWM3V2H | 154W - Extra Wide Beam - 4000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ENWM3V2M | 154W - Extra Wide Beam - 4000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ENWV2H | 154W - Extra Wide Beam - 4000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2400ENWV2M | 154W - Extra Wide Beam - 4000K | 24000 | 154 | 156 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ECW | 168W - Extra Wide Beam - 5000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ECWA3 | 168W - Extra Wide Beam - 5000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ECWA3V2H | 168W - Extra Wide Beam - 5000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ECWA3V2M | 168W - Extra Wide Beam - 5000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ECWD | 168W - Extra Wide Beam - 5000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ECWD3 | 168W - Extra Wide Beam - 5000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ECWD3V2H | 168W - Extra Wide Beam - 5000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ECWD3V2M | 168W - Extra Wide Beam - 5000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ECWDA3 | 168W - Extra Wide Beam - 5000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ECWDA3V3H | 168W - Extra Wide Beam - 5000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ECWDA3V3M | 168W - Extra Wide Beam - 5000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ECWDD3 | 168W - Extra Wide Beam - 5000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ECWDD3V3H | 168W - Extra Wide Beam - 5000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ECWDD3V3M | 168W - Extra Wide Beam - 5000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ECWDM3 | 168W - Extra Wide Beam - 5000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ECWDM3V3H | 168W - Extra Wide Beam - 5000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ECWDM3V3M | 168W - Extra Wide Beam - 5000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ECWDV3H | 168W - Extra Wide Beam - 5000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ECWDV3M | 168W - Extra Wide Beam - 5000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ECWM3 | 168W - Extra Wide Beam - 5000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ECWM3V2H | 168W - Extra Wide Beam - 5000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ECWM3V2M | 168W - Extra Wide Beam - 5000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ECWV2H | 168W - Extra Wide Beam - 5000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ECWV2M | 168W - Extra Wide Beam - 5000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600EDL | 168W - Extra Wide Beam - 6000K-6500K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600EDLA3 | 168W - Extra Wide Beam - 6000K-6500K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600EDLA3V2H | 168W - Extra Wide Beam - 6000K-6500K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600EDLA3V2M | 168W - Extra Wide Beam - 6000K-6500K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600EDLD | 168W - Extra Wide Beam - 6000K-6500K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600EDLD3 | 168W - Extra Wide Beam - 6000K-6500K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600EDLD3V2H | 168W - Extra Wide Beam - 6000K-6500K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600EDLD3V2M | 168W - Extra Wide Beam - 6000K-6500K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600EDLDA3 | 168W - Extra Wide Beam - 6000K-6500K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600EDLDA3V3H | 168W - Extra Wide Beam - 6000K-6500K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600EDLDA3V3M | 168W - Extra Wide Beam - 6000K-6500K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600EDLDD3 | 168W - Extra Wide Beam - 6000K-6500K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600EDLDD3V3H | 168W - Extra Wide Beam - 6000K-6500K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600EDLDD3V3M | 168W - Extra Wide Beam - 6000K-6500K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600EDLDM3 | 168W - Extra Wide Beam - 6000K-6500K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600EDLDM3V3H | 168W - Extra Wide Beam - 6000K-6500K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600EDLDM3V3M | 168W - Extra Wide Beam - 6000K-6500K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600EDLDV3H | 168W - Extra Wide Beam - 6000K-6500K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600EDLDV3M | 168W - Extra Wide Beam - 6000K-6500K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600EDLM3 | 168W - Extra Wide Beam - 6000K-6500K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600EDLM3V2H | 168W - Extra Wide Beam - 6000K-6500K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600EDLM3V2M | 168W - Extra Wide Beam - 6000K-6500K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600EDLV2H | 168W - Extra Wide Beam - 6000K-6500K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600EDLV2M | 168W - Extra Wide Beam - 6000K-6500K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ENW | 168W - Extra Wide Beam - 4000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ENWA3 | 168W - Extra Wide Beam - 4000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ENWA3V2H | 168W - Extra Wide Beam - 4000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ENWA3V2M | 168W - Extra Wide Beam - 4000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ENWD | 168W - Extra Wide Beam - 4000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ENWD3 | 168W - Extra Wide Beam - 4000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ENWD3V2H | 168W - Extra Wide Beam - 4000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ENWD3V2M | 168W - Extra Wide Beam - 4000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ENWDA3 | 168W - Extra Wide Beam - 4000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ENWDA3V3H | 168W - Extra Wide Beam - 4000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ENWDA3V3M | 168W - Extra Wide Beam - 4000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ENWDD3 | 168W - Extra Wide Beam - 4000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ENWDD3V3H | 168W - Extra Wide Beam - 4000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ENWDD3V3M | 168W - Extra Wide Beam - 4000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ENWDM3 | 168W - Extra Wide Beam - 4000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ENWDM3V3H | 168W - Extra Wide Beam - 4000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ENWDM3V3M | 168W - Extra Wide Beam - 4000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ENWDV3H | 168W - Extra Wide Beam - 4000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ENWDV3M | 168W - Extra Wide Beam - 4000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ENWM3 | 168W - Extra Wide Beam - 4000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ENWM3V2H | 168W - Extra Wide Beam - 4000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ENWM3V2M | 168W - Extra Wide Beam - 4000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ENWV2H | 168W - Extra Wide Beam - 4000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2600ENWV2M | 168W - Extra Wide Beam - 4000K | 26000 | 168 | 155 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ECW | 185W - Extra Wide Beam - 5000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ECWA3 | 185W - Extra Wide Beam - 5000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ECWA3V2H | 185W - Extra Wide Beam - 5000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ECWA3V2M | 185W - Extra Wide Beam - 5000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ECWD | 185W - Extra Wide Beam - 5000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ECWD3 | 185W - Extra Wide Beam - 5000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ECWD3V2H | 185W - Extra Wide Beam - 5000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ECWD3V2M | 185W - Extra Wide Beam - 5000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ECWDA3 | 185W - Extra Wide Beam - 5000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ECWDA3V3H | 185W - Extra Wide Beam - 5000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ECWDA3V3M | 185W - Extra Wide Beam - 5000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ECWDD3 | 185W - Extra Wide Beam - 5000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ECWDD3V3H | 185W - Extra Wide Beam - 5000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ECWDD3V3M | 185W - Extra Wide Beam - 5000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ECWDM3 | 185W - Extra Wide Beam - 5000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ECWDM3V3H | 185W - Extra Wide Beam - 5000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ECWDM3V3M | 185W - Extra Wide Beam - 5000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ECWDV3H | 185W - Extra Wide Beam - 5000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ECWDV3M | 185W - Extra Wide Beam - 5000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ECWM3 | 185W - Extra Wide Beam - 5000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ECWM3V2H | 185W - Extra Wide Beam - 5000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ECWM3V2M | 185W - Extra Wide Beam - 5000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ECWV2H | 185W - Extra Wide Beam - 5000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ECWV2M | 185W - Extra Wide Beam - 5000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800EDL | 185W - Extra Wide Beam - 6000K-6500K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800EDLA3 | 185W - Extra Wide Beam - 6000K-6500K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800EDLA3V2H | 185W - Extra Wide Beam - 6000K-6500K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800EDLA3V2M | 185W - Extra Wide Beam - 6000K-6500K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800EDLD | 185W - Extra Wide Beam - 6000K-6500K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800EDLD3 | 185W - Extra Wide Beam - 6000K-6500K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800EDLD3V2H | 185W - Extra Wide Beam - 6000K-6500K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800EDLD3V2M | 185W - Extra Wide Beam - 6000K-6500K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800EDLDA3 | 185W - Extra Wide Beam - 6000K-6500K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800EDLDA3V3H | 185W - Extra Wide Beam - 6000K-6500K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800EDLDA3V3M | 185W - Extra Wide Beam - 6000K-6500K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800EDLDD3 | 185W - Extra Wide Beam - 6000K-6500K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800EDLDD3V3H | 185W - Extra Wide Beam - 6000K-6500K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800EDLDD3V3M | 185W - Extra Wide Beam - 6000K-6500K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800EDLDM3 | 185W - Extra Wide Beam - 6000K-6500K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800EDLDM3V3H | 185W - Extra Wide Beam - 6000K-6500K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800EDLDM3V3M | 185W - Extra Wide Beam - 6000K-6500K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800EDLDV3H | 185W - Extra Wide Beam - 6000K-6500K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800EDLDV3M | 185W - Extra Wide Beam - 6000K-6500K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800EDLM3 | 185W - Extra Wide Beam - 6000K-6500K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800EDLM3V2H | 185W - Extra Wide Beam - 6000K-6500K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800EDLM3V2M | 185W - Extra Wide Beam - 6000K-6500K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800EDLV2H | 185W - Extra Wide Beam - 6000K-6500K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800EDLV2M | 185W - Extra Wide Beam - 6000K-6500K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ENW | 185W - Extra Wide Beam - 4000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ENWA3 | 185W - Extra Wide Beam - 4000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ENWA3V2H | 185W - Extra Wide Beam - 4000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ENWA3V2M | 198W - Extra Wide Beam - 4000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ENWD | 185W - Extra Wide Beam - 4000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ENWD3 | 185W - Extra Wide Beam - 4000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ENWD3V2H | 185W - Extra Wide Beam - 4000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ENWD3V2M | 198W - Extra Wide Beam - 4000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ENWDA3 | 185W - Extra Wide Beam - 4000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ENWDA3V3H | 185W - Extra Wide Beam - 4000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ENWDA3V3M | 185W - Extra Wide Beam - 4000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ENWDD3 | 185W - Extra Wide Beam - 4000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ENWDD3V3H | 185W - Extra Wide Beam - 4000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ENWDD3V3M | 185W - Extra Wide Beam - 4000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ENWDM3 | 185W - Extra Wide Beam - 4000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ENWDM3V3H | 185W - Extra Wide Beam - 4000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ENWDM3V3M | 185W - Extra Wide Beam - 4000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ENWDV3H | 185W - Extra Wide Beam - 4000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ENWDV3M | 185W - Extra Wide Beam - 4000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ENWM3 | 185W - Extra Wide Beam - 4000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ENWM3V2H | 185W - Extra Wide Beam - 4000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ENWM3V2M | 185W - Extra Wide Beam - 4000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ENWV2H | 185W - Extra Wide Beam - 4000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP2800ENWV2M | 185W - Extra Wide Beam - 4000K | 28000 | 185 | 151 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ECW | 214W - Extra Wide Beam - 5000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ECWA3 | 214W - Extra Wide Beam - 5000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ECWA3V2H | 214W - Extra Wide Beam - 5000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ECWA3V2M | 214W - Extra Wide Beam - 5000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ECWD | 214W - Extra Wide Beam - 5000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ECWD3 | 214W - Extra Wide Beam - 5000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ECWD3V2H | 214W - Extra Wide Beam - 5000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ECWD3V2M | 214W - Extra Wide Beam - 5000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ECWDA3 | 214W - Extra Wide Beam - 5000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ECWDA3V3H | 214W - Extra Wide Beam - 5000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ECWDA3V3M | 214W - Extra Wide Beam - 5000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ECWDD3 | 214W - Extra Wide Beam - 5000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ECWDD3V3H | 214W - Extra Wide Beam - 5000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ECWDD3V3M | 214W - Extra Wide Beam - 5000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ECWDM3 | 214W - Extra Wide Beam - 5000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ECWDM3V3H | 214W - Extra Wide Beam - 5000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ECWDM3V3M | 214W - Extra Wide Beam - 5000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ECWDV3H | 214W - Extra Wide Beam - 5000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ECWDV3M | 214W - Extra Wide Beam - 5000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ECWM3 | 214W - Extra Wide Beam - 5000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ECWM3V2H | 214W - Extra Wide Beam - 5000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ECWM3V2M | 214W - Extra Wide Beam - 5000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ECWV2H | 214W - Extra Wide Beam - 5000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ECWV2M | 214W - Extra Wide Beam - 5000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200EDL | 214W - Extra Wide Beam - 6000K-6500K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200EDLA3 | 214W - Extra Wide Beam - 6000K-6500K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200EDLA3V2H | 214W - Extra Wide Beam - 6000K-6500K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200EDLA3V2M | 214W - Extra Wide Beam - 6000K-6500K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200EDLD | 214W - Extra Wide Beam - 6000K-6500K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200EDLD3 | 214W - Extra Wide Beam - 6000K-6500K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200EDLD3V2H | 214W - Extra Wide Beam - 6000K-6500K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200EDLD3V2M | 214W - Extra Wide Beam - 6000K-6500K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200EDLDA3 | 214W - Extra Wide Beam - 6000K-6500K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200EDLDA3V3H | 214W - Extra Wide Beam - 6000K-6500K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200EDLDA3V3M | 214W - Extra Wide Beam - 6000K-6500K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200EDLDD3 | 214W - Extra Wide Beam - 6000K-6500K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200EDLDD3V3H | 214W - Extra Wide Beam - 6000K-6500K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200EDLDD3V3M | 214W - Extra Wide Beam - 6000K-6500K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200EDLDM3 | 214W - Extra Wide Beam - 6000K-6500K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200EDLDM3V3H | 214W - Extra Wide Beam - 6000K-6500K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200EDLDM3V3M | 214W - Extra Wide Beam - 6000K-6500K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200EDLDV3H | 214W - Extra Wide Beam - 6000K-6500K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200EDLDV3M | 214W - Extra Wide Beam - 6000K-6500K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200EDLM3 | 214W - Extra Wide Beam - 6000K-6500K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200EDLM3V2H | 214W - Extra Wide Beam - 6000K-6500K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200EDLM3V2M | 214W - Extra Wide Beam - 6000K-6500K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200EDLV2H | 214W - Extra Wide Beam - 6000K-6500K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200EDLV2M | 214W - Extra Wide Beam - 6000K-6500K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ENW | 214W - Extra Wide Beam - 4000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ENWA3 | 214W - Extra Wide Beam - 4000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ENWA3V2H | 214W - Extra Wide Beam - 4000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ENWA3V2M | 214W - Extra Wide Beam - 4000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ENWD | 214W - Extra Wide Beam - 4000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ENWD3 | 214W - Extra Wide Beam - 4000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ENWD3V2H | 214W - Extra Wide Beam - 4000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ENWD3V2M | 214W - Extra Wide Beam - 4000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ENWDA3 | 214W - Extra Wide Beam - 4000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ENWDA3V3H | 214W - Extra Wide Beam - 4000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ENWDA3V3M | 214W - Extra Wide Beam - 4000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ENWDD3 | 214W - Extra Wide Beam - 4000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ENWDD3V3H | 214W - Extra Wide Beam - 4000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ENWDD3V3M | 214W - Extra Wide Beam - 4000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ENWDM3 | 214W - Extra Wide Beam - 4000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ENWDM3V3H | 214W - Extra Wide Beam - 4000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ENWDM3V3M | 214W - Extra Wide Beam - 4000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ENWDV3H | 214W - Extra Wide Beam - 4000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ENWDV3M | 214W - Extra Wide Beam - 4000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ENWM3 | 214W - Extra Wide Beam - 4000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ENWM3V2H | 214W - Extra Wide Beam - 4000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ENWM3V2M | 214W - Extra Wide Beam - 4000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ENWV2H | 214W - Extra Wide Beam - 4000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP3200ENWV2M | 214W - Extra Wide Beam - 4000K | 32000 | 214 | 150 | 0 | 0 | 380 | 560 | 85 |
| EXP4200ECW | 282W - Extra Wide Beam - 5000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ECWA3 | 282W - Extra Wide Beam - 5000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ECWA3V2H | 282W - Extra Wide Beam - 5000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ECWA3V2M | 282W - Extra Wide Beam - 5000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ECWD | 282W - Extra Wide Beam - 5000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ECWD3 | 282W - Extra Wide Beam - 5000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ECWD3V2H | 282W - Extra Wide Beam - 5000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ECWD3V2M | 282W - Extra Wide Beam - 5000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ECWDA3 | 282W - Extra Wide Beam - 5000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ECWDA3V3H | 282W - Extra Wide Beam - 5000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ECWDA3V3M | 282W - Extra Wide Beam - 5000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ECWDD3 | 282W - Extra Wide Beam - 5000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ECWDD3V3H | 282W - Extra Wide Beam - 5000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ECWDD3V3M | 282W - Extra Wide Beam - 5000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ECWDM3 | 282W - Extra Wide Beam - 5000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ECWDM3V3H | 282W - Extra Wide Beam - 5000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ECWDM3V3M | 282W - Extra Wide Beam - 5000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ECWDV3H | 282W - Extra Wide Beam - 5000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ECWDV3M | 282W - Extra Wide Beam - 5000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ECWM3 | 282W - Extra Wide Beam - 5000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ECWM3V2H | 282W - Extra Wide Beam - 5000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ECWM3V2M | 282W - Extra Wide Beam - 5000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ECWV2H | 282W - Extra Wide Beam - 5000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ECWV2M | 282W - Extra Wide Beam - 5000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200EDL | 282W - Extra Wide Beam - 6000K-6500K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200EDLA3 | 282W - Extra Wide Beam - 6000K-6500K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200EDLA3V2H | 282W - Extra Wide Beam - 6000K-6500K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200EDLA3V2M | 282W - Extra Wide Beam - 6000K-6500K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200EDLD | 282W - Extra Wide Beam - 6000K-6500K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200EDLD3 | 282W - Extra Wide Beam - 6000K-6500K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200EDLD3V2H | 282W - Extra Wide Beam - 6000K-6500K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200EDLD3V2M | 282W - Extra Wide Beam - 6000K-6500K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200EDLDA3 | 282W - Extra Wide Beam - 6000K-6500K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200EDLDA3V3H | 282W - Extra Wide Beam - 6000K-6500K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200EDLDA3V3M | 282W - Extra Wide Beam - 6000K-6500K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200EDLDD3 | 282W - Extra Wide Beam - 6000K-6500K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200EDLDD3V3H | 282W - Extra Wide Beam - 6000K-6500K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200EDLDD3V3M | 282W - Extra Wide Beam - 6000K-6500K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200EDLDM3 | 282W - Extra Wide Beam - 6000K-6500K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200EDLDM3V3H | 282W - Extra Wide Beam - 6000K-6500K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200EDLDM3V3M | 282W - Extra Wide Beam - 6000K-6500K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200EDLDV3H | 282W - Extra Wide Beam - 6000K-6500K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200EDLDV3M | 282W - Extra Wide Beam - 6000K-6500K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200EDLM3 | 282W - Extra Wide Beam - 6000K-6500K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200EDLM3V2H | 282W - Extra Wide Beam - 6000K-6500K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200EDLM3V2M | 282W - Extra Wide Beam - 6000K-6500K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200EDLV2H | 282W - Extra Wide Beam - 6000K-6500K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200EDLV2M | 282W - Extra Wide Beam - 6000K-6500K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ENW | 282W - Extra Wide Beam - 4000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ENWA3 | 282W - Extra Wide Beam - 4000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ENWA3V2H | 282W - Extra Wide Beam - 4000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ENWA3V2M | 282W - Extra Wide Beam - 4000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ENWD | 282W - Extra Wide Beam - 4000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ENWD3 | 282W - Extra Wide Beam - 4000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ENWD3V2H | 282W - Extra Wide Beam - 4000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ENWD3V2M | 282W - Extra Wide Beam - 4000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ENWDA3 | 282W - Extra Wide Beam - 4000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ENWDA3V3H | 282W - Extra Wide Beam - 4000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ENWDA3V3M | 282W - Extra Wide Beam - 4000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ENWDD3 | 282W - Extra Wide Beam - 4000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ENWDD3V3H | 282W - Extra Wide Beam - 4000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ENWDD3V3M | 282W - Extra Wide Beam - 4000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ENWDM3 | 282W - Extra Wide Beam - 4000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ENWDM3V3H | 282W - Extra Wide Beam - 4000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ENWDM3V3M | 282W - Extra Wide Beam - 4000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ENWDV3H | 282W - Extra Wide Beam - 4000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ENWDV3M | 282W - Extra Wide Beam - 4000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ENWM3 | 282W - Extra Wide Beam - 4000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ENWM3V2H | 282W - Extra Wide Beam - 4000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ENWM3V2M | 282W - Extra Wide Beam - 4000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ENWV2H | 282W - Extra Wide Beam - 4000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
| EXP4200ENWV2M | 282W - Extra Wide Beam - 4000K | 42000 | 282 | 149 | 0 | 0 | 380 | 700 | 85 |
Our Commitment to TM66
Our commitment to excellence was recognised at the Electrical Industry Awards, with a win in the Project of the Year – Lighting category.
Made in Britain
Tamlite Lighting is a proud member of Made in Britain, an organisation that celebrates British manufacturing, by manufacturing lighting solutions in the heart of Britain.
