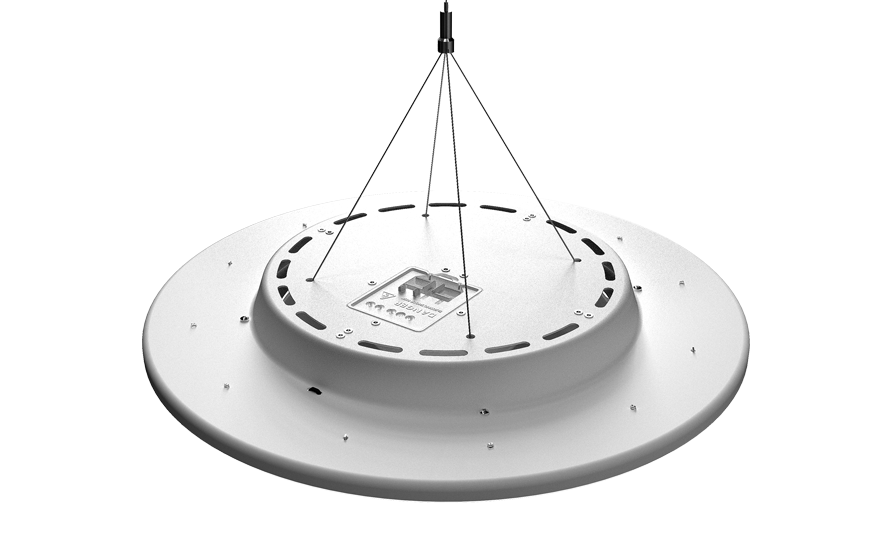

CIRCA

Pendant

TM66 Certified options available for specification
Suitable for large atriums, entrances and retail spaces
Available in 5 outputs
Available with Vision presence/photocell and presence/daylight dimming sensor
Tamlite I-Tech opal diffuser in polycarbonate that greatly reduces LED spotting for uniform appearance
4 point wire suspension from central fixing point
Gear options including DALI and emergency available
Modern stylish design
Spun aluminium body and front plate in white (RAL 9016)
Unique power entry access for easy and quick installation
Made in Britain
CRI: Ra>80
Up to 154 lumens per Watt efficacy

≤20K lm

≤142 W

≤154 lm/W

Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Colour Temperature (CCTK)

Vision Controls

Emergency

DALI

Order Code	Description	lm	W	lm/W	Dia(mm)	H(mm)
CRC500NW	34W - 4000K	5000	34	147	551	73
CRC500NWA3	34W - 4000K	5000	34	147	551	73
CRC500NWA3V2L	34W - 4000K	5000	34	147	551	73
CRC500NWD	34W - 4000K	5000	34	147	551	73
CRC500NWD3	34W - 4000K	5000	34	147	551	73
CRC500NWD3V2L	34W - 4000K	5000	34	147	551	73
CRC500NWDA3	34W - 4000K	5000	34	147	551	73
CRC500NWDA3V3L	34W - 4000K	5000	34	147	551	73
CRC500NWDD3	34W - 4000K	5000	34	147	551	73
CRC500NWDD3V3L	34W - 4000K	5000	34	147	551	73
CRC500NWDM3	34W - 4000K	5000	34	147	551	73
CRC500NWDM3V3L	34W - 4000K	5000	34	147	551	73
CRC500NWDV3L	34W - 4000K	5000	34	147	551	73
CRC500NWM3	34W - 4000K	5000	34	147	551	73
CRC500NWM3V2L	34W - 4000K	5000	34	147	551	73
CRC500NWV2L	34W - 4000K	5000	34	147	551	73
CRC800NW	54W - 4000K	8000	54	148	551	73
CRC800NWA3	54W - 4000K	8000	54	148	551	73
CRC800NWA3V2L	54W - 4000K	8000	54	148	551	73
CRC800NWD	54W - 4000K	8000	54	148	551	73
CRC800NWD3	54W - 4000K	8000	54	148	551	73
CRC800NWD3V2L	54W - 4000K	8000	54	148	551	73
CRC800NWDA3	54W - 4000K	8000	54	148	551	73
CRC800NWDA3V3L	54W - 4000K	8000	54	148	551	73
CRC800NWDD3	54W - 4000K	8000	54	148	551	73
CRC800NWDD3V3L	54W - 4000K	8000	54	148	551	73
CRC800NWDM3	54W - 4000K	8000	54	148	551	73
CRC800NWDM3V3L	54W - 4000K	8000	54	148	551	73
CRC800NWDV3L	54W - 4000K	8000	54	148	551	73
CRC800NWM3	54W - 4000K	8000	54	148	551	73
CRC800NWM3V2L	54W - 4000K	8000	54	148	551	73
CRC800NWV2L	54W - 4000K	8000	54	148	551	73
CRC1000NW	65W - 4000K	10000	65	154	551	73
CRC1000NWA3	65W - 4000K	10000	65	154	551	73
CRC1000NWA3V2L	65W - 4000K	10000	65	154	551	73
CRC1000NWD	65W - 4000K	10000	65	154	551	73
CRC1000NWD3	65W - 4000K	10000	65	154	551	73
CRC1000NWD3V2L	65W - 4000K	10000	65	154	551	73
CRC1000NWDA3	65W - 4000K	10000	65	154	551	73
CRC1000NWDA3V3L	65W - 4000K	10000	65	154	551	73
CRC1000NWDD3	65W - 4000K	10000	65	154	551	73
CRC1000NWDD3V3L	65W - 4000K	10000	65	154	551	73
CRC1000NWDM3	65W - 4000K	10000	65	154	551	73
CRC1000NWDM3V3L	65W - 4000K	10000	65	154	551	73
CRC1000NWDV3L	65W - 4000K	10000	65	154	551	73
CRC1000NWM3	65W - 4000K	10000	65	154	551	73
CRC1000NWM3V2L	65W - 4000K	10000	65	154	551	73
CRC1000NWV2L	65W - 4000K	10000	65	154	551	73
CRC1500NW	100W - 4000K	15000	100	150	551	73
CRC1500NWA3	100W - 4000K	15000	100	150	551	73
CRC1500NWA3V2L	100W - 4000K	15000	100	150	551	73
CRC1500NWD	100W - 4000K	15000	100	150	551	73
CRC1500NWD3	100W - 4000K	15000	100	150	551	73
CRC1500NWD3V2L	100W - 4000K	15000	100	150	551	73
CRC1500NWDA3	100W - 4000K	15000	100	150	551	73
CRC1500NWDA3V3L	100W - 4000K	15000	100	150	551	73
CRC1500NWDD3	100W - 4000K	15000	100	150	551	73
CRC1500NWDD3V3L	100W - 4000K	15000	100	150	551	73
CRC1500NWDM3	100W - 4000K	15000	100	150	551	73
CRC1500NWDM3V3L	100W - 4000K	15000	100	150	551	73
CRC1500NWDV3L	100W - 4000K	15000	100	150	551	73
CRC1500NWM3	100W - 4000K	15000	100	150	551	73
CRC1500NWM3V2L	100W - 4000K	15000	100	150	551	73
CRC1500NWV2L	100W - 4000K	15000	100	150	551	73
CRC2000NW	142W - 4000K	20000	142	141	551	73
CRC2000NWA3	142W - 4000K	20000	142	141	551	73
CRC2000NWA3V2L	142W - 4000K	20000	142	141	551	73
CRC2000NWD	142W - 4000K	20000	142	141	551	73
CRC2000NWD3	142W - 4000K	20000	142	141	551	73
CRC2000NWD3V2L	142W - 4000K	20000	142	141	551	73
CRC2000NWDA3	142W - 4000K	20000	142	141	551	73
CRC2000NWDA3V3L	142W - 4000K	20000	142	141	551	73
CRC2000NWDD3	142W - 4000K	20000	142	141	551	73
CRC2000NWDD3V3L	142W - 4000K	20000	142	141	551	73
CRC2000NWDM3	142W - 4000K	20000	142	141	551	73
CRC2000NWDM3V3L	142W - 4000K	20000	142	141	551	73
CRC2000NWDV3L	142W - 4000K	20000	142	141	551	73
CRC2000NWM3	142W - 4000K	20000	142	141	551	73
CRC2000NWM3V2L	142W - 4000K	20000	142	141	551	73
CRC2000NWV2L	142W - 4000K	20000	142	141	551	73
