VISION CONNECT

Wired Lighting Control Solution

 Tamlite logo Vision Connect logo Vision Connect Pro logo

VISION CONNECT is a sophisticated wired DALI-2 smart lighting system. At its core lies an intelligent application controller that is the mastermind that orchestrates the entire system. Ideal for small scale applications such as individual rooms or a collection of small rooms on a single floor.

The VISION CONNECT solution features a flexible system design and easy commissioning, which allows for greater freedom in the design phase and allows for change in the future. This flexibility allows end users to adapt the way their luminaires light spaces, whether it be due to structural change or change of function for the space.

The intelligent hub can control up to 64 DALI addresses, 16 input devices and 16 scenes/groups. This sophisticated system seamlessly integrates with third-generation DALI-2 sensors, renowned for their compact design and exceptional performance in motion detection and ambient light measurement.

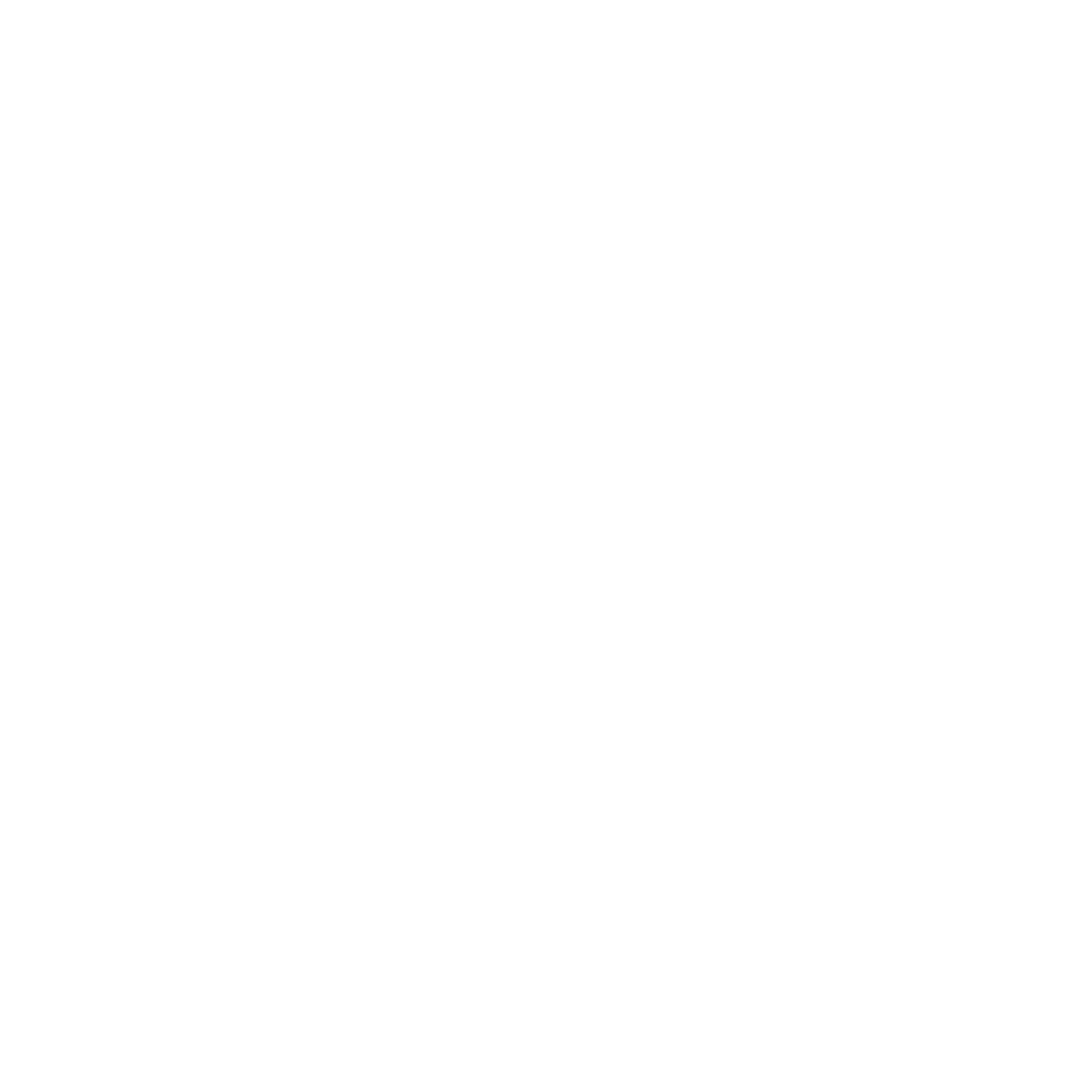

VISION CONNECT is the easiest way to achieve a sophisticated wired DALI installation for your next project. vision sensor outline

KEY COMPONENTS VISION CONNECT Application controllers serve as the central intelligence of lighting control systems, enabling sophisticated automation, customisation, and remote management. By processing information from sensors and user inputs, these controllers make informed decisions about how to adjust lighting levels, colours, and scenes. Sensors play a crucial role in modern lighting control systems, enabling intelligent and energy-efficient lighting solutions. By detecting various environmental factors, sensors allow lighting systems to adapt automatically to changing conditions, optimising both energy consumption and user experience. Intelligence Sensors Interfaces Lighting control systems incorporate a variety of interfaces to facilitate user interaction, system integration, and automation. These interfaces can be broadly categorised as either user interfaces or system interfaces. Vision sensor icon connect-key3-white Vision interface icon

VISION CONNECT Typical Room Solution

Continually measure and
adjust artificial lighting levels
based on the amount of daylight
entering through the windows Switch Detection Daylight Harvesting Control the on/off
and dimming of lights
using a retractive
switch The sensors monitor
absence in the room
and turn the lights off

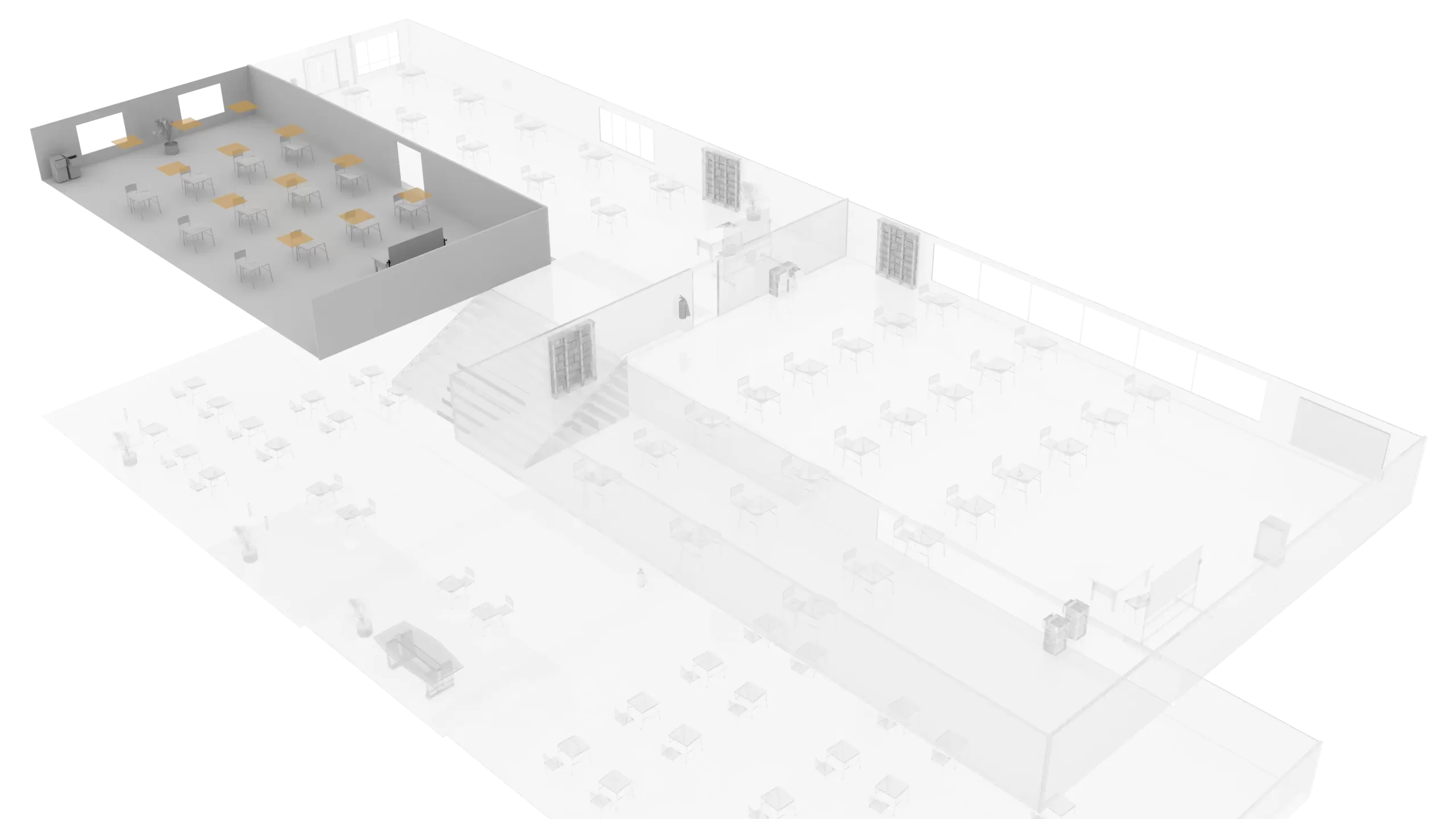

as required. vision classroom vision sensor with man switch

30 minute timeout with warn level included Absence detection
via 2no sensors Main retractive switch 300 Lux daylight harvesting window row 2-way switch for
white board row reactive switch daylight harvest 2-way switch sensors

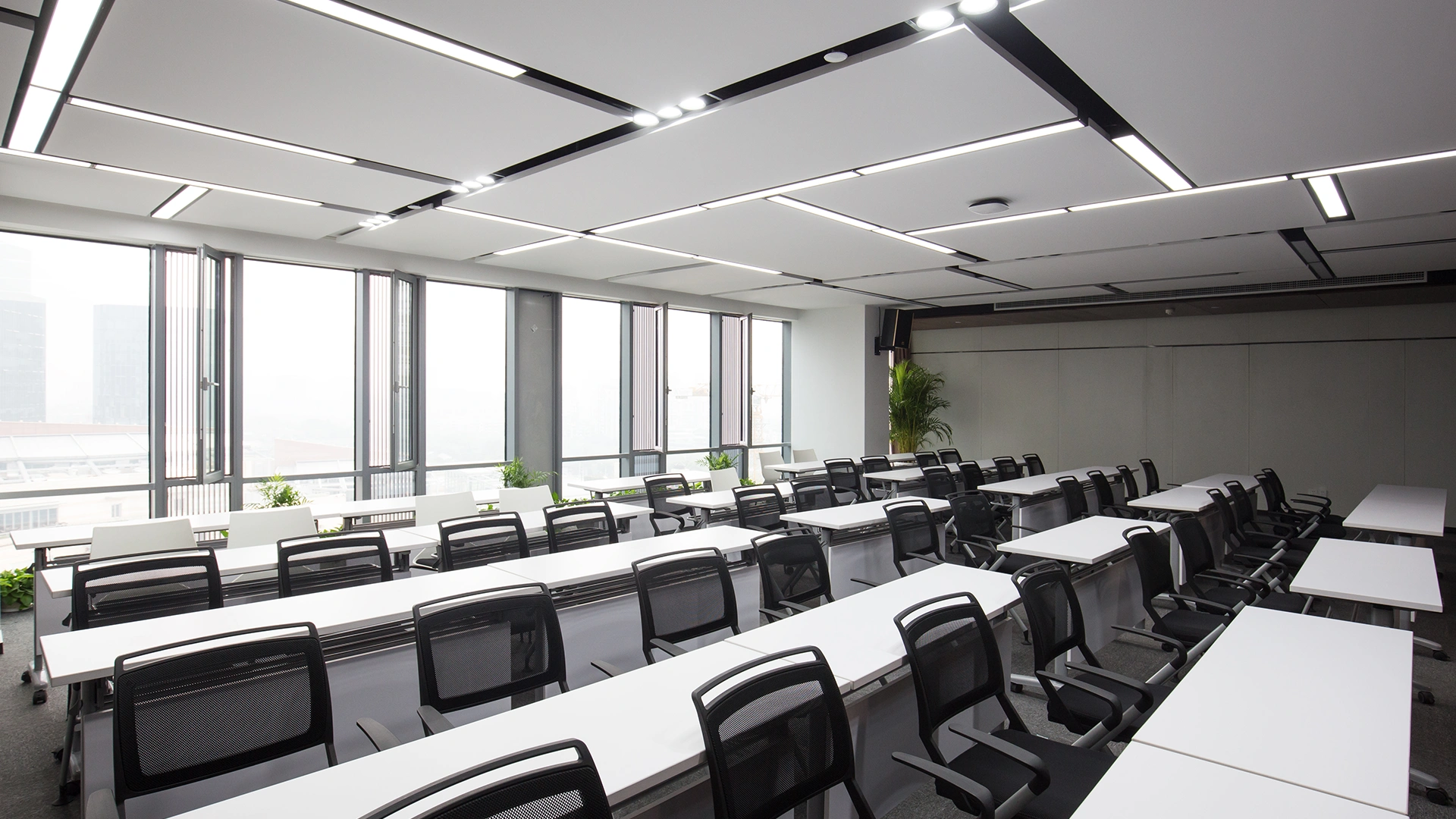

Intelligent Lighting, Seamlessly Connected VISION CONNECT PRO Vision Connect Pro logo vision-connect-header

offline_bolt Wired building solution settings_applications Intelligent Application Controller
 Addressable DALI - Emergency Test and Monitor

VISION CONNECT PRO is a cutting-edge wired DALI-2 smart lighting system that defines the future of intelligent illumination. At its core is a sophisticated application controller, which enables seamless integration with building management systems (BMS) for optimal performance and energy efficiency.

The Tamlite EvoHub controller not only controls devices but also collects data like lumDATA from each luminaire. It also runs automatic emergency testing, with results distributed to pre-defined recipients.

This 3-line DALI-2 controller supports up to 64 devices per line (192 total) and integrates effortlessly with third-generation DALI-2 sensors, known for their compact design, exceptional motion detection and light measurement.

Ideal for large-scale applications, VISION CONNECT PRO offers tailored smart lighting solutions. Illuminate your space and experience the difference with VISION CONNECT PRO.

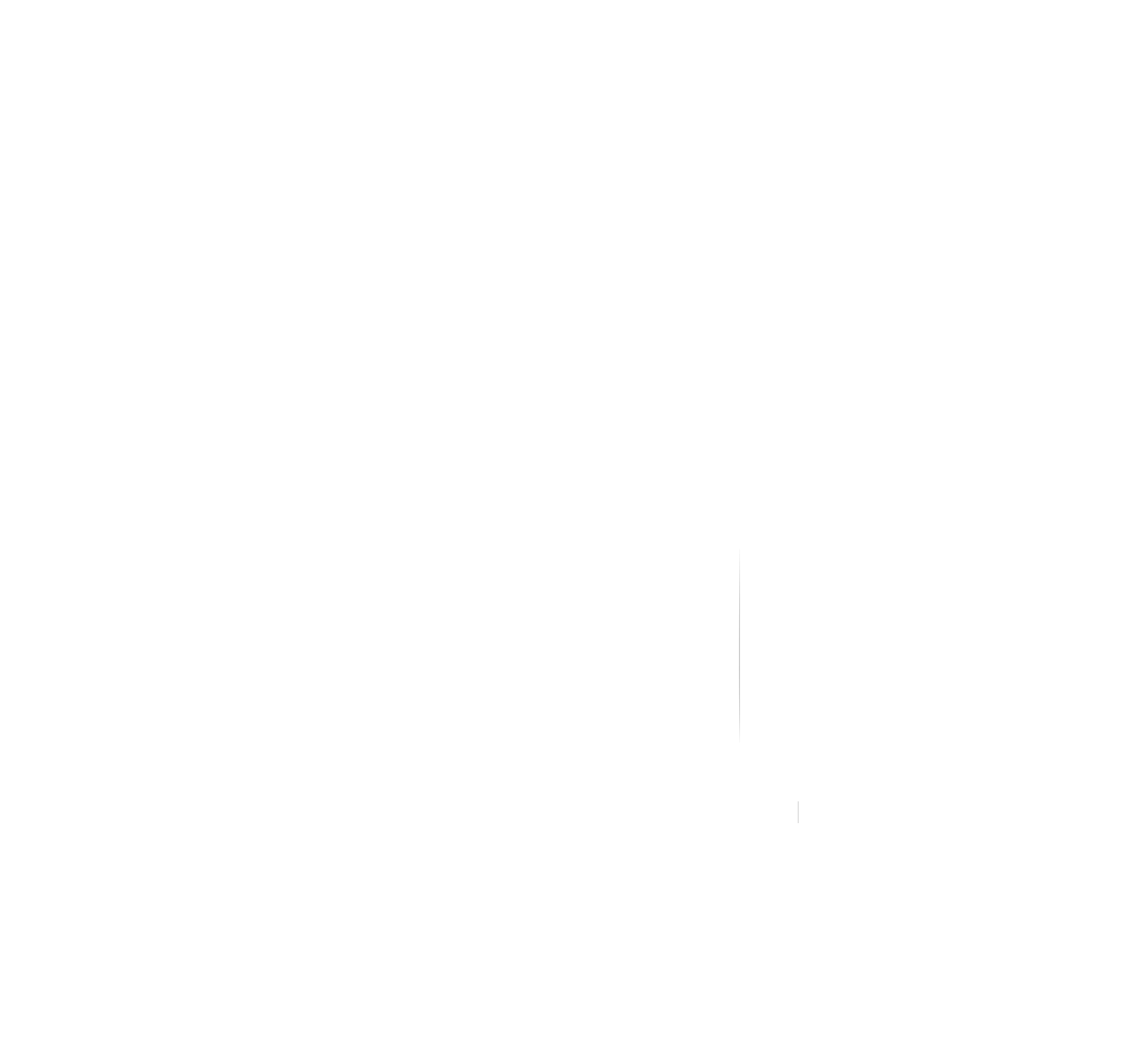

 building wireframe

Centralised Control 01 The Tamlite EvoHub application controller serves as the brains of the operation, enabling centralised control and management of the lighting system. Advanced Control 02 Cross controller linking for advanced system control. 03 Advanced Sensor Technology Third-generation DALI-2 sensors offer precise motion detection and ambient light measurement, ensuring optimal lighting conditions in every space. Customisable Lighting Scenes 04 Create personalised lighting scenes to suit various applications. Future Proof Design 05 DALI-2 technology ensures compatibility with future advancements in lighting control. 06 Emergency Testing Automatic DALI emergency test and monitor. Building Management System 07 Seamlessly integrate with other building management systems for a cohesive control environment. VISION CONNECT PRO Key Features

VISION CONNECT PRO Typical Building Solution

Emergency monitoring of
luminaires with the ability
to produce emergency test
reports without needing to
access each hub on site. DALI-2 Multi-Room Emergency Monitor presence,
absence, daylight.
All fully customisable
to required specifications Connect to and control

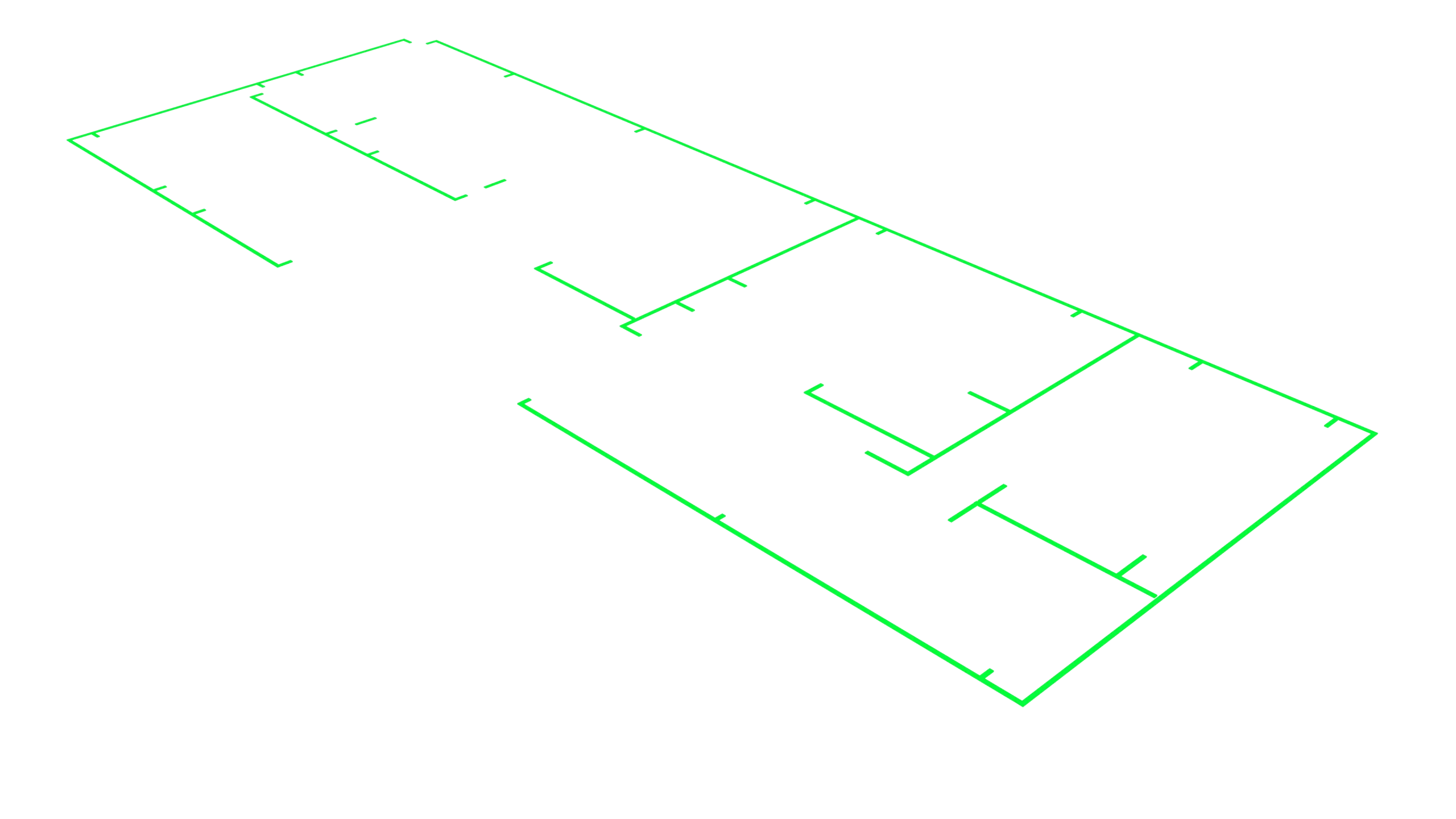

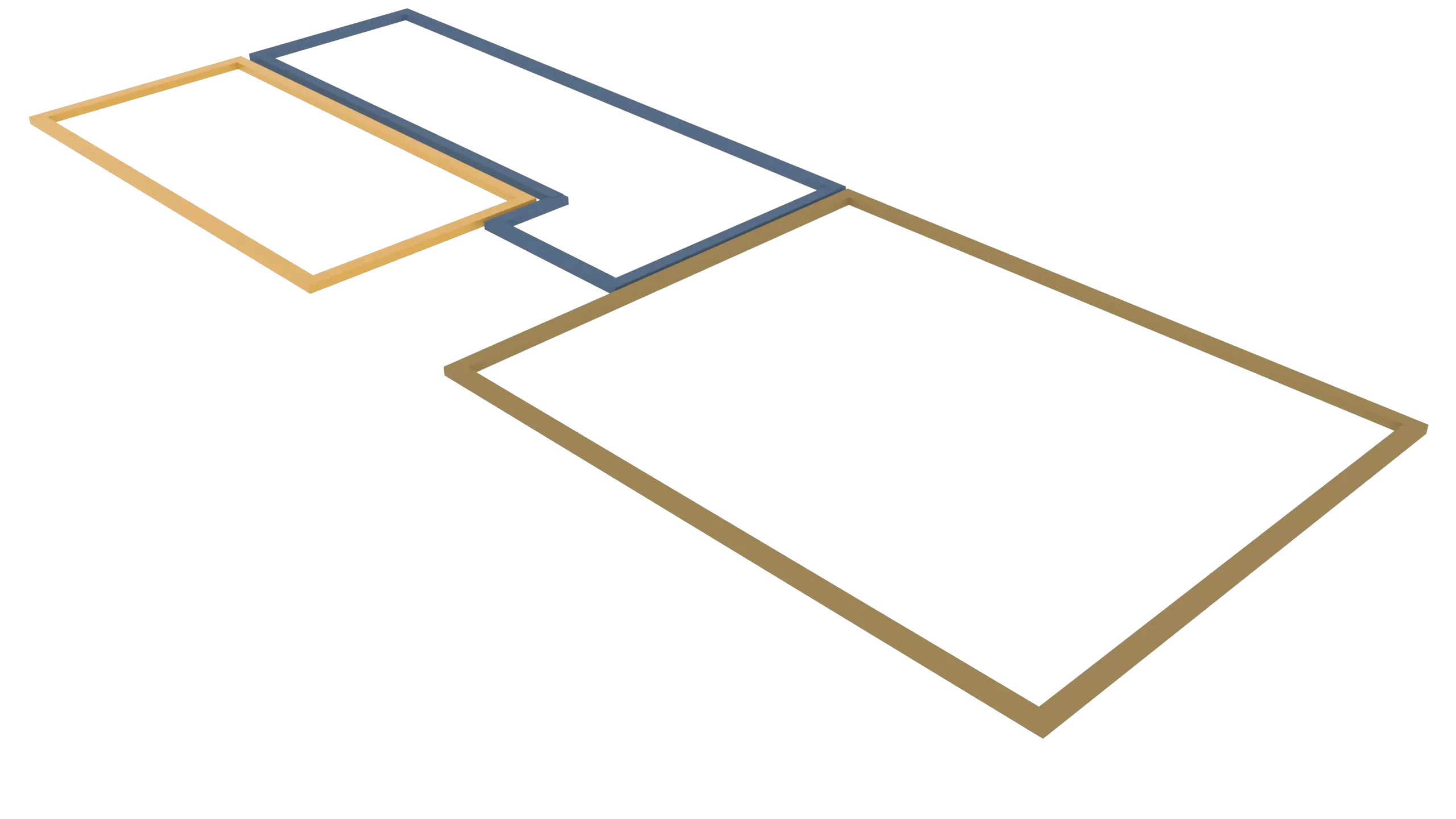

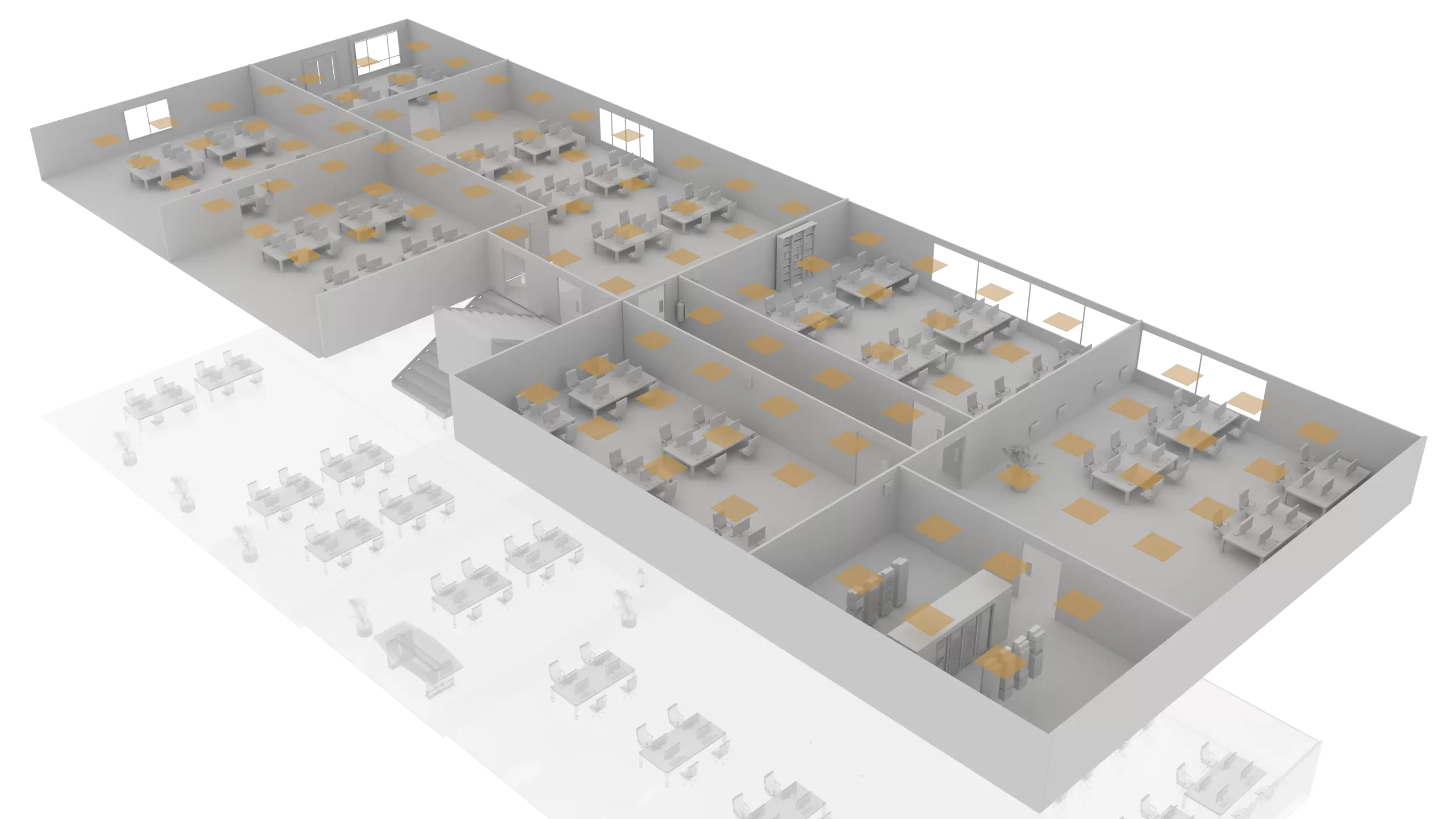

multiple rooms seamlessly. Vision air boardroom overlay Vision multi room Vision office ceiling overlay wiring for emergency-2

VISION CONNECT PRO has the same features as VISION CONNECT but includes: DALI test and monitor offers a robust solution for testing and monitoring the performance of connected fixtures, with a strong emphasis on emergency lighting. By sending signals to each individual light and receiving real-time feedback, the system can identify faults or issues, ensuring everything functions properly within your lighting setup. The continuous monitoring capability ensures that potential faults, such as failing batteries or malfunctioning luminaires, are flagged immediately, so you can address them before they become a hazard. The system can be programmed to automatically carry out scheduled tests, including the necessary monthly functional checks and the annual full duration tests as required. DALI Test and Monitor daylight harvest

VISION ONE and VISION AIR Lighting Control Solutions

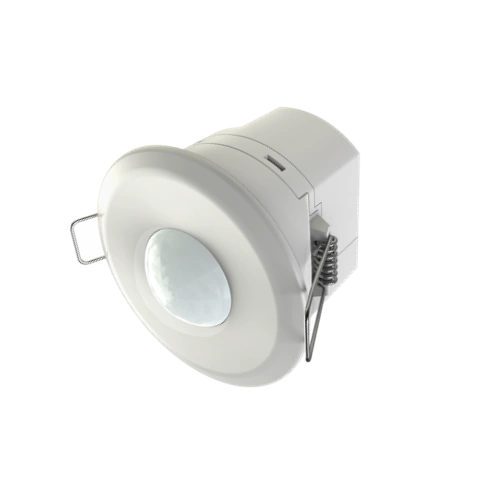

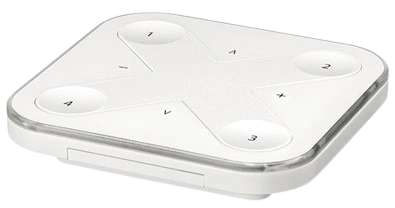

Basic entry level lighting control system. vision one Introducing VISION ONE, the entry-level lighting control system, designed to enhance your space with simple PIR and movement sensors. VISION features a series of stand alone and integral sensor options that optimise natural light and energy efficiency in any space. Explore VISION ONE Stand-alone Broadcast commands to all luminaires on the circuit. Including on/off commands or dimming up/down. DALI broadcast Automated or semi-automated detection to adjust lighting. presence / absence Compact remote control used for basic programming of Vision One enabled products. handheld control Wireless drivers and nodes enabling seamless control. vision air VISION AIR is a flexible wireless lighting solution that provides easy installation and control of up to 250 devices per network, with intuitive dimming, grouping, and human centric lighting capabilities. Ideal for spaces like offices, it upgrades conventional lighting systems. Explore VISION AIR wireless Up to 250 devices per network with multiple networks available. bluetooth Robust communication channels between devices. Mesh networking Create personalised lighting scenes to suit various moods and activities, from energising workspaces to relaxing breakout areas. Customisable Lighting Vision One icon Vision lighting controls integrated lighting controls driver Vision Connect logo Vision air controller Vision Air logo
