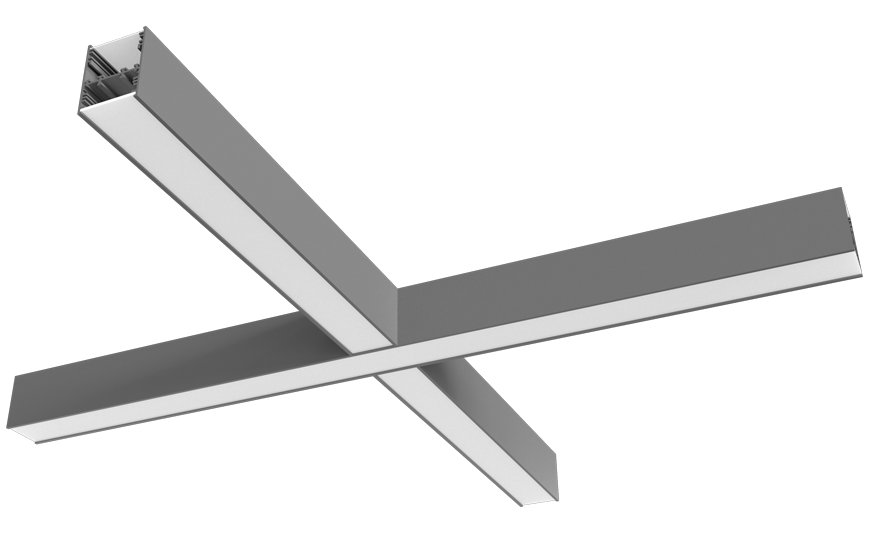

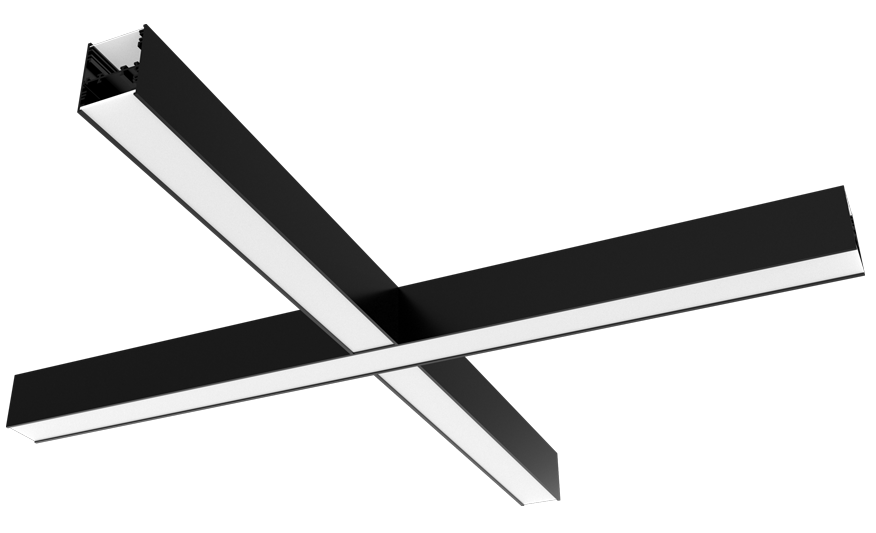

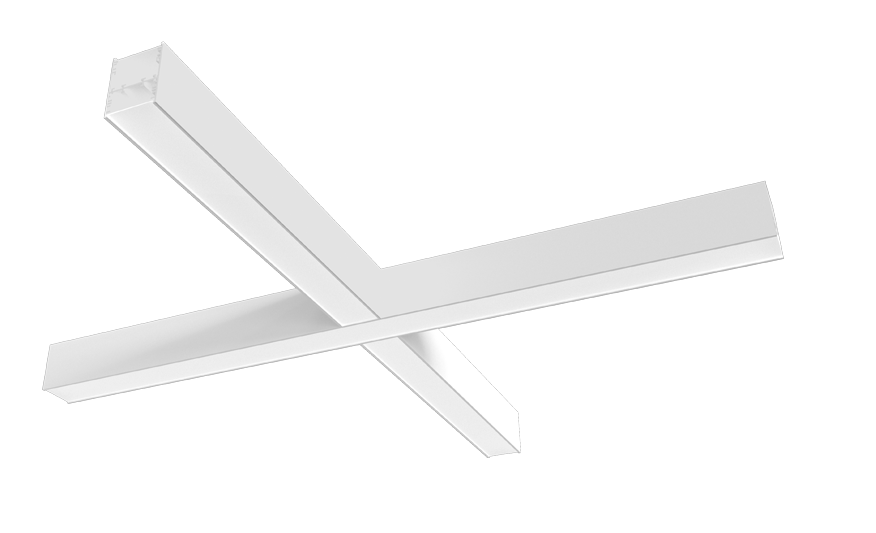

SIGNUM X O
Suspended X Shaped Connector for Signum Suspended with Opal Diffuser
- Construction: Lightweight extruded aluminium housing finished in White (RAL 9016), Grey (RAL 9006) or Black (RAL 9005) for durability and sustainability.
- Colour Temperature: Supplied in neutral white (4000K)
- Opal Diffuser: Soft, even light for general illumination
- System Configuration: Supports standalone or continuous runs with T, X and corner modules for layout flexibility
- Energy Efficiency: Achieves up to 111 lm/W (lumens per watt) output
- Smart Integration: Compatible with Tamlite’s VISION lighting controls
Product Filter
If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.
| Order Code | Description | lm | W | lm/W | L(mm) | W(mm) | D(mm) | Folio |
|---|---|---|---|---|---|---|---|---|
| SGX500ONWB | 45W - Opal Diffuser - 4000K - Black | 3700 | 45 | 111 | 1117 | 1117 | 75 | |
| SGX500ONWBD | 45W - Opal Diffuser - 4000K - Black | 3700 | 45 | 111 | 1117 | 1117 | 75 | |
| SGX500ONWG | 45W - Opal Diffuser - 4000K - Grey | 3700 | 45 | 111 | 1117 | 1117 | 75 | |
| SGX500ONWGD | 45W - Opal Diffuser - 4000K - Grey | 3700 | 45 | 111 | 1117 | 1117 | 75 | |
| SGX500ONWW | 45W - Opal Diffuser - 4000K - White | 3700 | 45 | 111 | 1117 | 1117 | 75 | |
| SGX500ONWWD | 45W - Opal Diffuser - 4000K - White | 3700 | 45 | 111 | 1117 | 1117 | 75 |
