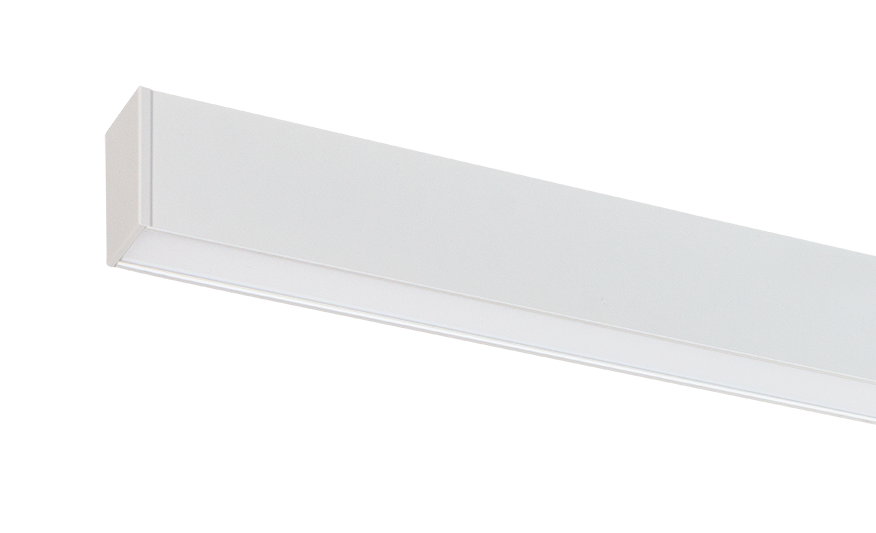

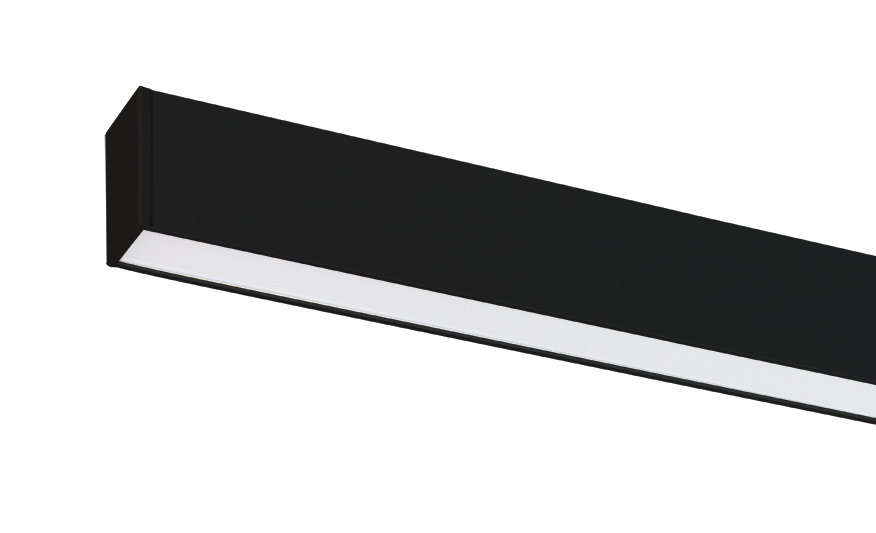

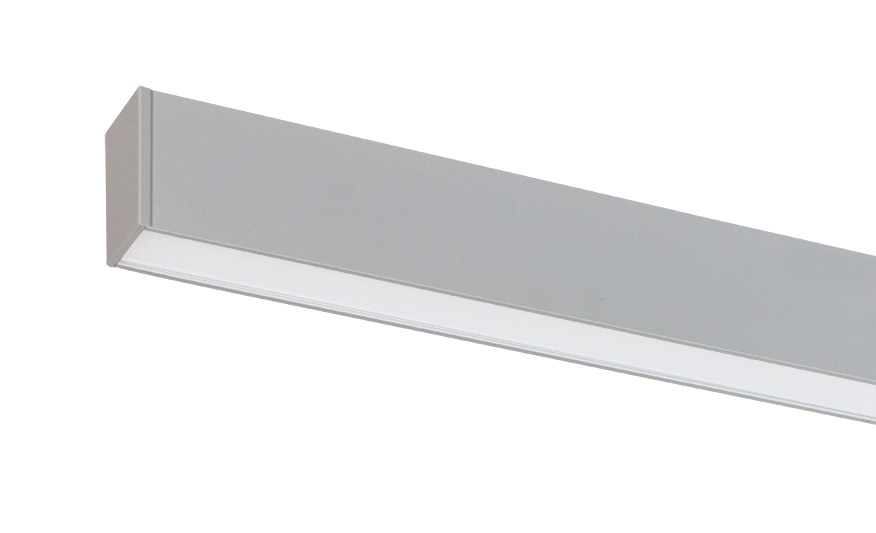

SIGNUM OD
Suspended Direct Only with Opal Diffuser
- Available in 2 module lengths and 3 colour options
- Available with opal or microprism diffuser
- Direct only output
- Suspended linear system for office, libraries and large open areas
- Integrated emergency option available
- Connection accessories to create dynamic systems
- Supplied as stand-alone or continuous versions
- CRI: Ra>80
- Opal PMMA diffuser
- Polycarbonate end caps
- Supplied in neutral white (4000K) LED
- Up to 121 lumens per Watt efficacy
Product Filter
If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.
- 4000K - Neutral White ✓
- None ✓
- Maintained emergency 3hr
- DALI self test emergency 3hr
- Self test emergency 3hr
| Order Code | Description | lm | W | lm/W | L(mm) | W(mm) | D(mm) |
|---|---|---|---|---|---|---|---|
| SGD4230ONWB | 19W - Opal Diffuser - Down Only - 4000K - Black | 2300 | 19 | 121 | 1085 | 57 | 75 |
| SGD4230ONWBA3 | 19W - Opal Diffuser - Down Only - 4000K - Black | 2300 | 19 | 121 | 1085 | 57 | 75 |
| SGD4230ONWBD | 19W - Opal Diffuser - Down Only - 4000K - Black | 2300 | 19 | 121 | 1085 | 57 | 75 |
| SGD4230ONWBD3 | 19W - Opal Diffuser - Down Only - 4000K - Black | 2300 | 19 | 121 | 1085 | 57 | 75 |
| SGD4230ONWBDA3 | 19W - Opal Diffuser - Down Only - 4000K - Black | 2300 | 19 | 121 | 1085 | 57 | 75 |
| SGD4230ONWBDD3 | 19W - Opal Diffuser - Down Only - 4000K - Black | 2300 | 19 | 121 | 1085 | 57 | 75 |
| SGD4230ONWBDM3 | 19W - Opal Diffuser - Down Only - 4000K - Black | 2300 | 19 | 121 | 1085 | 57 | 75 |
| SGD4230ONWBM3 | 19W - Opal Diffuser - Down Only - 4000K - Black | 2300 | 19 | 121 | 1085 | 57 | 75 |
| SGD4230ONWG | 19W - Opal Diffuser - Down Only - 4000K - Grey | 2300 | 19 | 121 | 1085 | 57 | 75 |
| SGD4230ONWGA3 | 19W - Opal Diffuser - Down Only - 4000K - Grey | 2300 | 19 | 121 | 1085 | 57 | 75 |
| SGD4230ONWGD | 19W - Opal Diffuser - Down Only - 4000K - Grey | 2300 | 19 | 121 | 1085 | 57 | 75 |
| SGD4230ONWGD3 | 19W - Opal Diffuser - Down Only - 4000K - Grey | 2300 | 19 | 121 | 1085 | 57 | 75 |
| SGD4230ONWGDA3 | 19W - Opal Diffuser - Down Only - 4000K - Grey | 2300 | 19 | 121 | 1085 | 57 | 75 |
| SGD4230ONWGDD3 | 19W - Opal Diffuser - Down Only - 4000K - Grey | 2300 | 19 | 121 | 1085 | 57 | 75 |
| SGD4230ONWGDM3 | 19W - Opal Diffuser - Down Only - 4000K - Grey | 2300 | 19 | 121 | 1085 | 57 | 75 |
| SGD4230ONWGM3 | 19W - Opal Diffuser - Down Only - 4000K - Grey | 2300 | 19 | 121 | 1085 | 57 | 75 |
| SGD4230ONWW | 19W - Opal Diffuser - Down Only - 4000K - White | 2300 | 19 | 121 | 1085 | 57 | 75 |
| SGD4230ONWWA3 | 19W - Opal Diffuser - Down Only - 4000K - White | 2300 | 19 | 121 | 1085 | 57 | 75 |
| SGD4230ONWWD | 19W - Opal Diffuser - Down Only - 4000K - White | 2300 | 19 | 121 | 1085 | 57 | 75 |
| SGD4230ONWWD3 | 19W - Opal Diffuser - Down Only - 4000K - White | 2300 | 19 | 121 | 1085 | 57 | 75 |
| SGD4230ONWWDA3 | 19W - Opal Diffuser - Down Only - 4000K - White | 2300 | 19 | 121 | 1085 | 57 | 75 |
| SGD4230ONWWDD3 | 19W - Opal Diffuser - Down Only - 4000K - White | 2300 | 19 | 121 | 1085 | 57 | 75 |
| SGD4230ONWWDM3 | 19W - Opal Diffuser - Down Only - 4000K - White | 2300 | 19 | 121 | 1085 | 57 | 75 |
| SGD4230ONWWM3 | 19W - Opal Diffuser - Down Only - 4000K - White | 2300 | 19 | 121 | 1085 | 57 | 75 |
| SGD5340ONWB | 28W - Opal Diffuser - Down Only - 4000K - Black | 3400 | 28 | 121 | 1625 | 57 | 75 |
| SGD5340ONWBA3 | 28W - Opal Diffuser - Down Only - 4000K - Black | 3400 | 28 | 121 | 1625 | 57 | 75 |
| SGD5340ONWBD | 28W - Opal Diffuser - Down Only - 4000K - Black | 3400 | 28 | 121 | 1625 | 57 | 75 |
| SGD5340ONWBD3 | 28W - Opal Diffuser - Down Only - 4000K - Black | 3400 | 28 | 121 | 1625 | 57 | 75 |
| SGD5340ONWBDA3 | 28W - Opal Diffuser - Down Only - 4000K - Black | 3400 | 28 | 121 | 1625 | 57 | 75 |
| SGD5340ONWBDD3 | 28W - Opal Diffuser - Down Only - 4000K - Black | 3400 | 28 | 121 | 1625 | 57 | 75 |
| SGD5340ONWBDM3 | 28W - Opal Diffuser - Down Only - 4000K - Black | 3400 | 28 | 121 | 1625 | 57 | 75 |
| SGD5340ONWBM3 | 28W - Opal Diffuser - Down Only - 4000K - Black | 3400 | 28 | 121 | 1625 | 57 | 75 |
| SGD5340ONWG | 28W - Opal Diffuser - Down Only - 4000K - Grey | 3400 | 28 | 121 | 1625 | 57 | 75 |
| SGD5340ONWGA3 | 28W - Opal Diffuser - Down Only - 4000K - Grey | 3400 | 28 | 121 | 1625 | 57 | 75 |
| SGD5340ONWGD | 28W - Opal Diffuser - Down Only - 4000K - Grey | 3400 | 28 | 121 | 1625 | 57 | 75 |
| SGD5340ONWGD3 | 28W - Opal Diffuser - Down Only - 4000K - Grey | 3400 | 28 | 121 | 1625 | 57 | 75 |
| SGD5340ONWGDA3 | 28W - Opal Diffuser - Down Only - 4000K - Grey | 3400 | 28 | 121 | 1625 | 57 | 75 |
| SGD5340ONWGDD3 | 28W - Opal Diffuser - Down Only - 4000K - Grey | 3400 | 28 | 121 | 1625 | 57 | 75 |
| SGD5340ONWGDM3 | 28W - Opal Diffuser - Down Only - 4000K - Grey | 3400 | 28 | 121 | 1625 | 57 | 75 |
| SGD5340ONWGM3 | 28W - Opal Diffuser - Down Only - 4000K - Grey | 3400 | 28 | 121 | 1625 | 57 | 75 |
| SGD5340ONWW | 28W - Opal Diffuser - Down Only - 4000K - White | 3400 | 28 | 121 | 1625 | 57 | 75 |
| SGD5340ONWWA3 | 28W - Opal Diffuser - Down Only - 4000K - White | 3400 | 28 | 121 | 1625 | 57 | 75 |
| SGD5340ONWWD | 28W - Opal Diffuser - Down Only - 4000K - White | 3400 | 28 | 121 | 1625 | 57 | 75 |
| SGD5340ONWWD3 | 28W - Opal Diffuser - Down Only - 4000K - White | 3400 | 28 | 121 | 1625 | 57 | 75 |
| SGD5340ONWWDA3 | 28W - Opal Diffuser - Down Only - 4000K - White | 3400 | 28 | 121 | 1625 | 57 | 75 |
| SGD5340ONWWDD3 | 28W - Opal Diffuser - Down Only - 4000K - White | 3400 | 28 | 121 | 1625 | 57 | 75 |
| SGD5340ONWWDM3 | 28W - Opal Diffuser - Down Only - 4000K - White | 3400 | 28 | 121 | 1625 | 57 | 75 |
| SGD5340ONWWM3 | 28W - Opal Diffuser - Down Only - 4000K - White | 3400 | 28 | 121 | 1625 | 57 | 75 |
