AIR

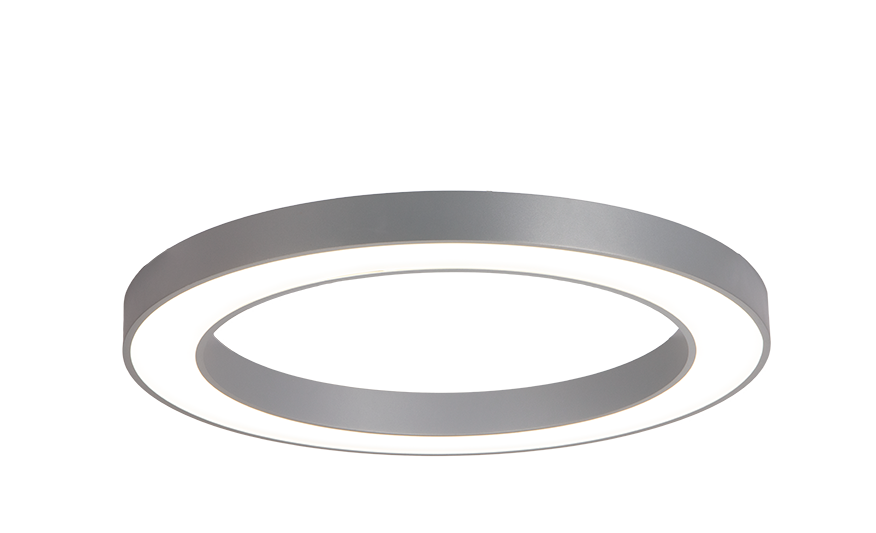

Circular decorative suspended pendant

  • TM66 Certified options available for specification
  • Available in 2 sizes and 2 outputs
  • Steel ceiling plate (900mm dia.) with wire suspensions (1400mm)
  • Inner Dia. 600mm or 1000mm
  • DALI dimming control gear as standard
  • Modern suspended pendant for foyers and feature areas
  • Integrated emergency option available
  • CRI: Ra>80
  • Die-cast aluminium body finished in grey (RAL 9006), white (RAL 9016) or black (RAL 9005)
  • Opal diffuser provides a high uniform illuminance
  • Supplied in neutral white (4000K) LED
  • Up to 113 lumens per Watt efficacy
7 Years Warranty2 Years On-Site Warranty (T&C`s Apply)
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Product Leaflet
Instruction leaflet
Polar Curve
Photometric Data
Order Code Description lm W lm/W Dia(mm) H(mm)
ARPM930NWBD 89W - 4000K - Black 9300 89 104 800 60
ARPM930NWBDA3 89W - 4000K - Black 9300 92 101 800 60
ARPM930NWBDD3 89W - 4000K - Black 9300 92 101 800 60
ARPM930NWBDM3 89W - 4000K - Black 9300 92 101 800 60
ARPM930NWGD 89W - 4000K - Grey 9300 89 104 800 60
ARPM930NWGDA3 89W - 4000K - Grey 9300 92 101 800 60
ARPM930NWGDD3 89W - 4000K - Grey 9300 92 101 800 60
ARPM930NWGDM3 89W - 4000K - Grey 9300 92 101 800 60
ARPM930NWWD 89W - 4000K - White 9300 89 104 800 60
ARPM930NWWDA3 89W - 4000K - White 9300 92 101 800 60
ARPM930NWWDD3 89W - 4000K - White 9300 92 101 800 60
ARPM930NWWDM3 89W - 4000K - White 9300 92 101 800 60
ARPL1600NWBD 141W - 4000K - Black 16000 141 113 1200 60
ARPL1600NWBDA3 141W - 4000K - Black 16000 144 111 1200 60
ARPL1600NWBDD3 141W - 4000K - Black 16000 144 111 1200 60
ARPL1600NWBDM3 141W - 4000K - Black 16000 144 111 1200 60
ARPL1600NWGD 141W - 4000K - Grey 16000 141 113 1200 60
ARPL1600NWGDA3 141W - 4000K - Grey 16000 144 111 1200 60
ARPL1600NWGDD3 141W - 4000K - Grey 16000 144 111 1200 60
ARPL1600NWGDM3 141W - 4000K - Grey 16000 144 111 1200 60
ARPL1600NWWD 141W - 4000K - White 16000 141 113 1200 60
ARPL1600NWWDA3 141W - 4000K - White 16000 144 111 1200 60
ARPL1600NWWDD3 141W - 4000K - White 16000 144 111 1200 60
ARPL1600NWWDM3 141W - 4000K - White 16000 144 111 1200 60
