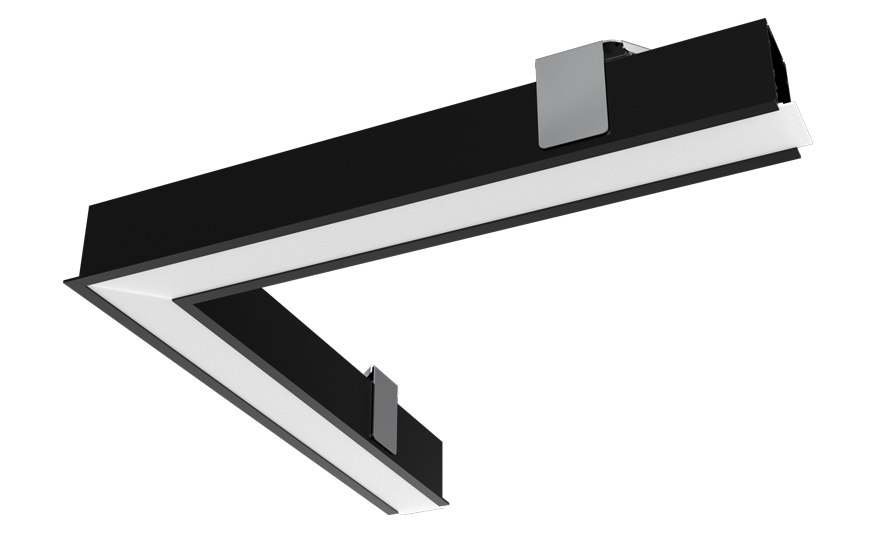

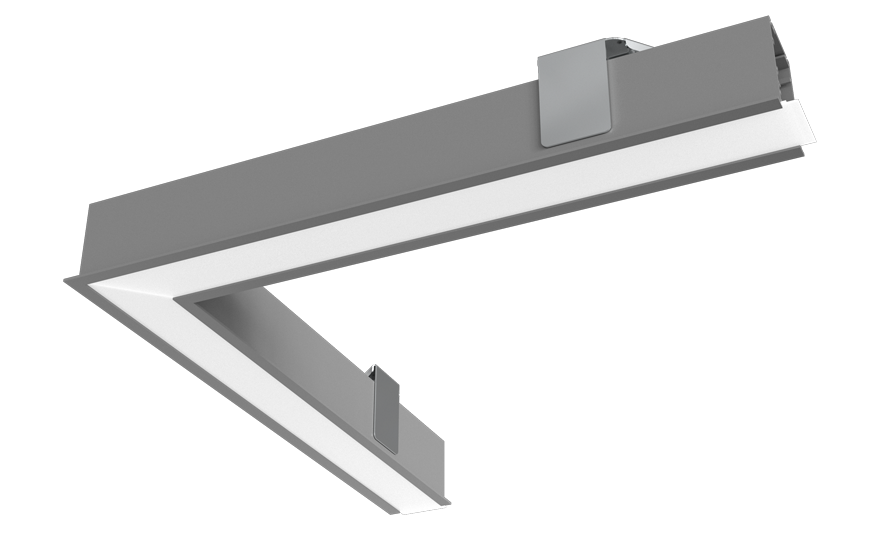

SIGNUM RL O
Corner Section for Recessed Signum System with Opal Diffuser
- Construction: Lightweight extruded aluminium housing finished in White (RAL 9016), Grey (RAL 9006) or Black (RAL 9005) for durability and sustainability.
- Colour Temperature: Supplied in neutral white (4000K)
- Opal Diffuser: Soft, even light for general illumination
- System Configuration: Supports standalone or continuous runs for layout flexibility
- Energy Efficiency: Achieves up to 108 lm/W (lumens per watt) output
- Smart Integration: Compatible with Tamlite’s VISION lighting controls
Product Filter
If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.
| Order Code | Description | lm | W | lm/W | L(mm) | W(mm) | D(mm) | Folio |
|---|---|---|---|---|---|---|---|---|
| SGRL270ONWB | 25W - Opal Diffuser - 4000K - Black | 2700 | 25 | 108 | 585 | 585 | 73 | |
| SGRL270ONWBD | 25W - Opal Diffuser - 4000K - Black | 2700 | 25 | 108 | 585 | 585 | 73 | |
| SGRL270ONWG | 25W - Opal Diffuser - 4000K - Grey | 2700 | 25 | 108 | 585 | 585 | 73 | |
| SGRL270ONWGD | 25W - Opal Diffuser - 4000K - Grey | 2700 | 25 | 108 | 585 | 585 | 73 | |
| SGRL270ONWW | 25W - Opal Diffuser - 4000K - White | 2700 | 25 | 108 | 585 | 585 | 73 | |
| SGRL270ONWWD | 25W - Opal Diffuser - 4000K - White | 2700 | 25 | 108 | 585 | 585 | 73 |
