CITY BEAM SW
Small Exterior Wall Light - Wide Beam
- Available in downward only models
- DALI dimmable option available
- Compact corner mounted profile suitable for walkway areas
- Wide (90°) Beam Angle

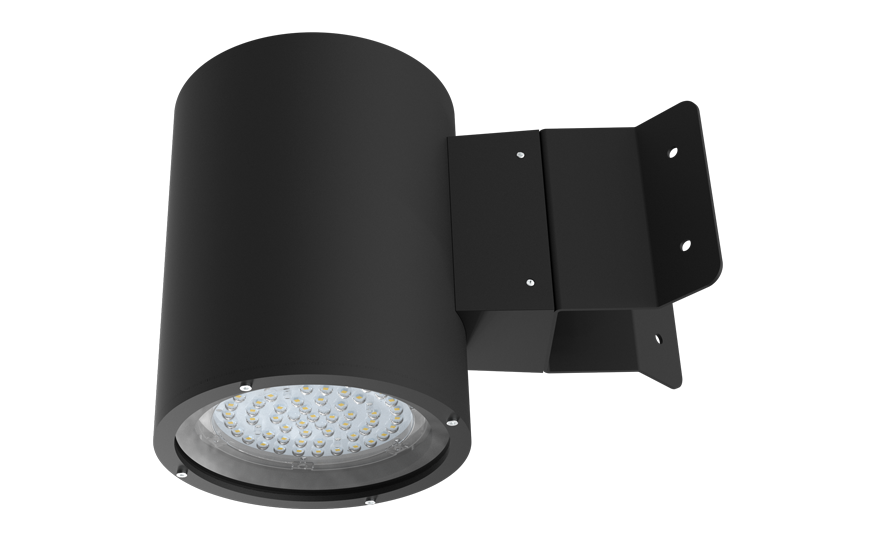

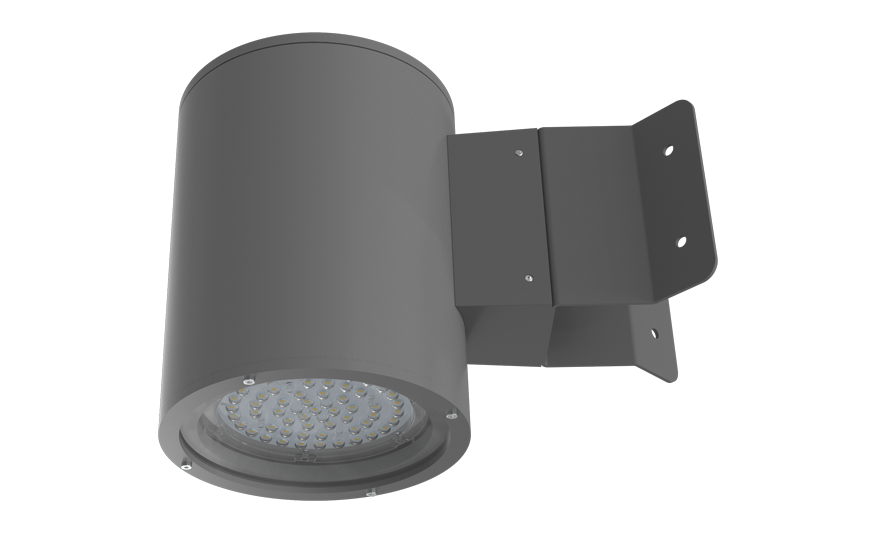

- Die-cast aluminium body finished in grey (RAL 9006) or black (RAL 9005) marine grade paint
- Integral driver simplifying installation
- Supplied in warm white (3000K) LED
- CRI: Ra>80
- Efficacy - 111 lm/W
Product Filter
If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.
| Order Code | Description | lm | W | lm/W | L(mm) | W(mm) | D(mm) |
|---|---|---|---|---|---|---|---|
| CBDS100WWWBMP | 9W - Wide beam - 3000K - Black - Marine Grade | 1000 | 9 | 111 | 160 | 273 | 205 |
| CBDS100WWWBMPD | 9W - Wide beam - 3000K - Black - Marine Grade | 1000 | 9 | 111 | 160 | 273 | 205 |
| CBDS100WWWGMP | 9W - Wide beam - 3000K - Grey - Marine Grade | 1000 | 9 | 111 | 160 | 273 | 205 |
| CBDS100WWWGMPD | 9W - Wide beam - 3000K - Grey - Marine Grade | 1000 | 9 | 111 | 160 | 273 | 205 |
