Home > Products > SIGNUM ACCESSORIES Range > SIGNUM RL MP > SGRL290MPNWGD

Order Code: SGRL290MPNWGD

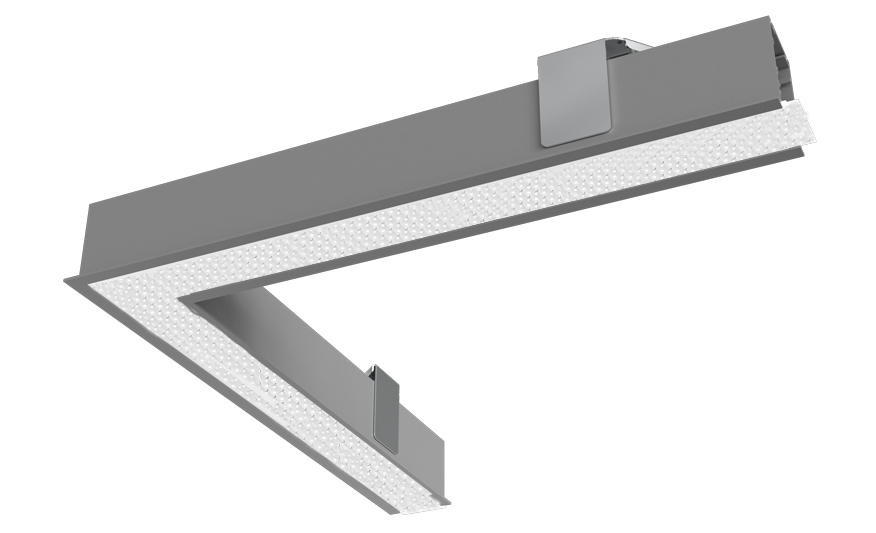

SIGNUM CORNER R Linear System Grey 25W - Microprism Diffuser - Dimmable DALI - 4000K

Technical Data

General

Luminaire Wattage (W) 25

Weight (kg) 2.70

Operating Temperature (°C) 0 to 25

Light Output

Lumens (lm) 2900

Efficacy (lm/W) 116

Life

L90 Lifetime (HRS) 38000

L80 Lifetime (HRS) 72000

L70 Lifetime (HRS) 72000

Electrical

Rated Input Current (A) 0.12

Power Factor (pf) 0.93

Input Voltage Range (VAC) 220 - 240

Inrush Current Peak (A) 23

Surge Protection (kV) 1

Total Harmonic Distortion (THD) 20

Output LF Ripple ±2%

Conductor Size (mm) 0.5 to 2.5

Terminal Type 5-pole + 2-pole grip-wire

LED

CCT (K) 4000

CRI 80

Macadam Elipses <3

Driver

Driver Current (mA) 275

Forward Voltage (V) 59

Resources

Instruction leaflet Polar Curve Line Drawing Photometric Data Data Sheet

Features

Efficacy - 116 lm/W
System Configuration: Supports standalone or continuous runs for layout flexibility
Energy Efficiency: Achieves up to 116 lm/W (lumens per watt) output
Smart Integration: Compatible with Tamlite’s VISION lighting controls

Construction

Construction: Lightweight extruded aluminium housing finished in White (RAL 9016), Grey (RAL 9006) or Black (RAL 9005) for durability and sustainability.
Colour Temperature: Supplied in neutral white (4000K)
Microprism Diffuser: Low-glare output for visual comfort

To Specify

SIGNUM CORNER R Linear System Grey 25W - Microprism Diffuser - Dimmable DALI - 4000K as per Tamlite SIGNUM RL MP range.
