SIGNUM RL MP

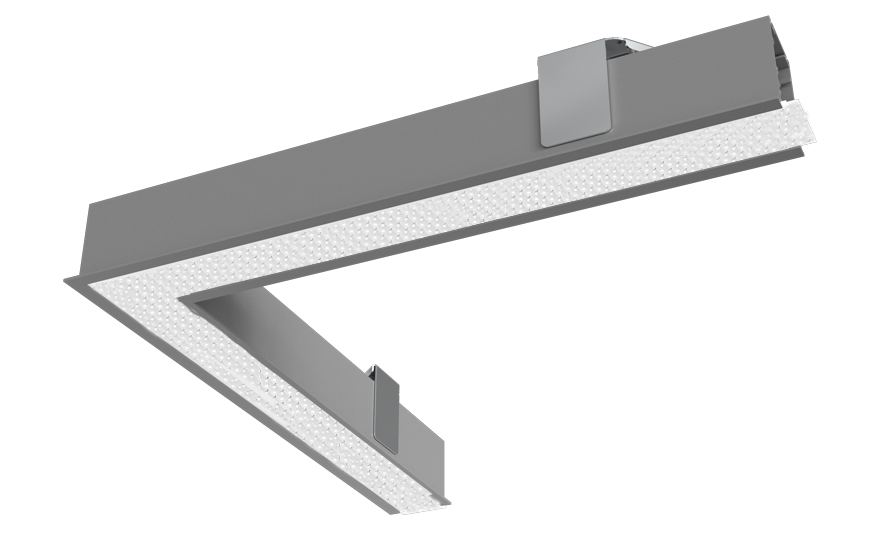

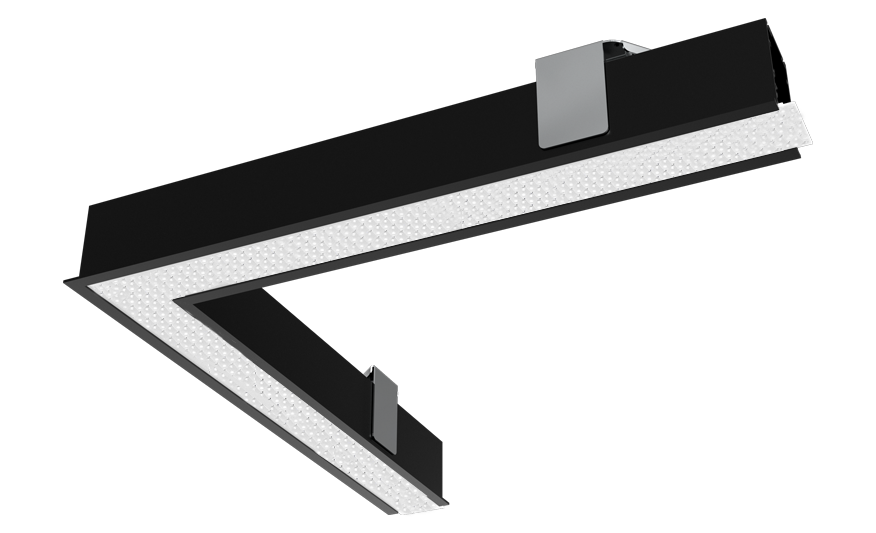

Corner Section for Recessed Signum System with Microprism Diffuser
- Construction: Lightweight extruded aluminium housing finished in White (RAL 9016), Grey (RAL 9006) or Black (RAL 9005) for durability and sustainability.
- Colour Temperature: Supplied in neutral white (4000K)
- Microprism Diffuser: Low-glare output for visual comfort
- System Configuration: Supports standalone or continuous runs for layout flexibility
- Energy Efficiency: Achieves up to 116 lm/W (lumens per watt) output
- Smart Integration: Compatible with Tamlite’s VISION lighting controls
Product Filter
If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.
| Order Code | Description | lm | W | lm/W | L(mm) | W(mm) | D(mm) | Folio |
|---|---|---|---|---|---|---|---|---|
| SGRL290MPNWB | 25W - Microprism Diffuser - 4000K - Black | 2900 | 25 | 116 | 585 | 585 | 73 | |
| SGRL290MPNWBD | 25W - Microprism Diffuser - 4000K - Black | 2900 | 25 | 116 | 585 | 585 | 73 | |
| SGRL290MPNWG | 25W - Microprism Diffuser - 4000K - Grey | 2900 | 25 | 116 | 585 | 585 | 73 | |
| SGRL290MPNWGD | 25W - Microprism Diffuser - 4000K - Grey | 2900 | 25 | 116 | 585 | 585 | 73 | |
| SGRL290MPNWW | 25W - Microprism Diffuser - 4000K - White | 2900 | 25 | 116 | 585 | 585 | 73 | |
| SGRL290MPNWWD | 25W - Microprism Diffuser - 4000K - White | 2900 | 25 | 116 | 585 | 585 | 73 |
