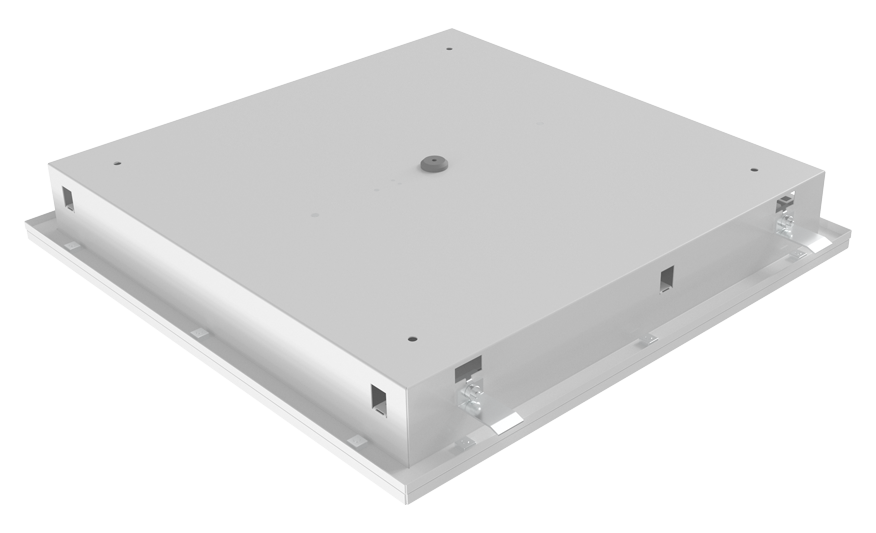

SECURE MP

Anti-ligature Recessed Module

  • Secure fitting built to prevent vulnerable people from accidently or intentionally self-harming
  • Suitable for low, medium and high risk secure services
  • For install in suspended or solid ceilings
  • For use in meeting/consultation rooms, clean rooms and sterile areas
  • Vandal-resistant and tamper-proof
  • Full range of DALI, Emergency and self-test options
  • Steel body finished in white (RAL 9010)
  • Polycarbonate Tp(a) rated microprism diffuser secured via Resistorx screws
  • Integral driver simplifying installation
  • CRI: Ra>80
  • Gear options including DALI and emergency available
  • Supplied in neutral white (4000K) LED
Microwave sensorIP65IK145 Years Warranty2 Years On-Site Warranty (T&C`s Apply)
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Instruction leaflet
Polar Curve
Photometric Data
Order Code Description lm W lm/W Cut out L(mm) W(mm) D(mm)
SCM330MPNW 30W - Micro-prism Diffuser - 4000K 30 110 122 556 x 556 600 600 90
SCM330MPNWA3 30W - Micro-prism Diffuser - 4000K 30 110 121 556 x 556 600 600 90
SCM330MPNWA3MS 30W - Micro-prism Diffuser - 4000K 30 110 122 556 x 556 600 600 90
SCM330MPNWD 30W - Micro-prism Diffuser - 4000K 30 110 122 556 x 556 600 600 90
SCM330MPNWD3 30W - Micro-prism Diffuser - 4000K 30 110 122 556 x 556 600 600 90
SCM330MPNWD3MS 30W - Micro-prism Diffuser - 4000K 30 110 121 556 x 556 600 600 90
SCM330MPNWDA3 30W - Micro-prism Diffuser - 4000K 30 110 122 556 x 556 600 600 90
SCM330MPNWDA3MS 30W - Micro-prism Diffuser - 4000K 30 110 121 556 x 556 600 600 90
SCM330MPNWDD3 30W - Micro-prism Diffuser - 4000K 30 110 122 556 x 556 600 600 90
SCM330MPNWDD3MS 30W - Micro-prism Diffuser - 4000K 30 110 122 556 x 556 600 600 90
SCM330MPNWDM3 30W - Micro-prism Diffuser - 4000K 30 110 121 556 x 556 600 600 90
SCM330MPNWDM3MS 30W - Micro-prism Diffuser - 4000K 30 110 122 556 x 556 600 600 90
SCM330MPNWDMS 30W - Micro-prism Diffuser - 4000K 30 110 122 556 x 556 600 600 90
SCM330MPNWM3 30W - Micro-prism Diffuser - 4000K 30 110 122 556 x 556 600 600 90
SCM330MPNWM3MS 30W - Micro-prism Diffuser - 4000K 30 110 122 556 x 556 600 600 90
SCM330MPNWMS 30W - Micro-prism Diffuser - 4000K 30 110 121 556 x 556 600 600 90
SCM400MPNW 37W - Micro-prism Diffuser - 4000K 37 108 121 556 x 556 600 600 90
SCM400MPNWA3 37W - Micro-prism Diffuser - 4000K 37 108 122 556 x 556 600 600 90
SCM400MPNWA3MS 37W - Micro-prism Diffuser - 4000K 37 108 122 556 x 556 600 600 90
SCM400MPNWD 37W - Micro-prism Diffuser - 4000K 37 108 122 556 x 556 600 600 90
SCM400MPNWD3 37W - Micro-prism Diffuser - 4000K 37 108 121 556 x 556 600 600 90
SCM400MPNWD3MS 37W - Micro-prism Diffuser - 4000K 37 108 122 556 x 556 600 600 90
SCM400MPNWDA3 37W - Micro-prism Diffuser - 4000K 37 108 121 556 x 556 600 600 90
SCM400MPNWDA3MS 37W - Micro-prism Diffuser - 4000K 37 108 122 556 x 556 600 600 90
SCM400MPNWDD3 37W - Micro-prism Diffuser - 4000K 37 108 122 556 x 556 600 600 90
SCM400MPNWDD3MS 37W - Micro-prism Diffuser - 4000K 37 108 121 556 x 556 600 600 90
SCM400MPNWDM3 37W - Micro-prism Diffuser - 4000K 37 108 122 556 x 556 600 600 90
SCM400MPNWDM3MS 37W - Micro-prism Diffuser - 4000K 37 108 122 556 x 556 600 600 90
SCM400MPNWDMS 37W - Micro-prism Diffuser - 4000K 37 108 121 556 x 556 600 600 90
SCM400MPNWM3 37W - Micro-prism Diffuser - 4000K 37 108 122 556 x 556 600 600 90
SCM400MPNWM3MS 37W - Micro-prism Diffuser - 4000K 37 108 121 556 x 556 600 600 90
SCM400MPNWMS 37W - Micro-prism Diffuser - 4000K 37 108 122 556 x 556 600 600 90
