Order Code: SCB360NWM3MS

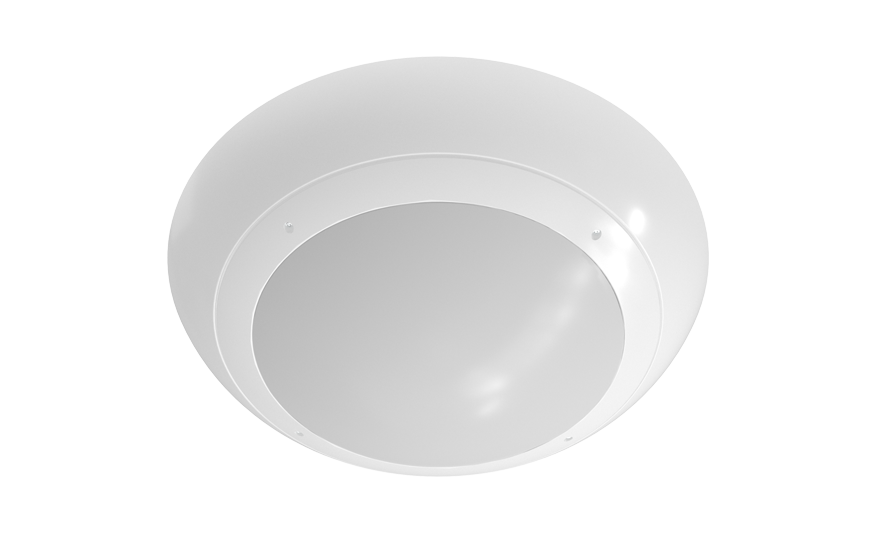

SECURE B Anti-ligature Bulkhead 30W - Fixed Output - Emergency - Microwave Sensor - 4000K
Technical Data
Luminaire Wattage (W) 30
Weight (kg) 3.10
Operating Temperature (°C) 0 to 25
Lumens (lm) 3600
Efficacy (lm/W) 120
Beam Angle (FWHM°) 80
Rated Input Current (A) 0.14
Power Factor (pf) 0.96
Input Voltage Range (VAC) 220 - 240
Inrush Current Peak (A) 16
Surge Protection (kV) 1
Total Harmonic Distortion (THD) 7
Output LF Ripple 5
Conductor Size (mm) NiMH
Terminal Type 4-pole grip-wire
CCT (K) 4000
CRI 80
Macadam Elipses <3
Driver Current (mA) 700
Forward Voltage (V) 33.6 - 36.7
Emergency Lumen Operating 300
Emergency Wattage (W) 3
Features
- Secure fitting built to prevent vulnerable people from accidentally or intentionally self-harming
- Suitable for low, medium and high risk secure services
- For use in bedrooms, bathrooms, corridors and day rooms
- Wall or ceiling mount
- Impact resistant and tamper-proof
- CRI: Ra>80
- Independently tested and certified to meet the requirements set out in the Department of Health Environmental Design Guide 2011 for Adult Medium Secure Services
Construction
- Die-cast aluminium body finished in white (RAL 9010)
- Polycarbonate opal diffuser secured via Resistorx screws
- Integral driver simplifying installation
- Supplied in neutral white (4000K) LED
To Specify
SECURE B Anti-ligature Bulkhead 30W - Fixed Output - Emergency - Microwave Sensor - 4000K as per Tamlite SECURE B range.
