NEPTUNE
Weatherproof IP65 LED bulkhead combining robust construction with dependable, efficient performance
- Energy Efficiency: Achieves up to 122 lm/W (lumens per watt) output
- Lumen Output: Available in 1600 lm or 2100 lm
- Colour Temperature: Available in Warm White (3000K) or Neutral White (4000K)
- Opal Diffuser: Soft, even light for general illumination
- Construction: Polycarbonate housing in White (RAL 9016)

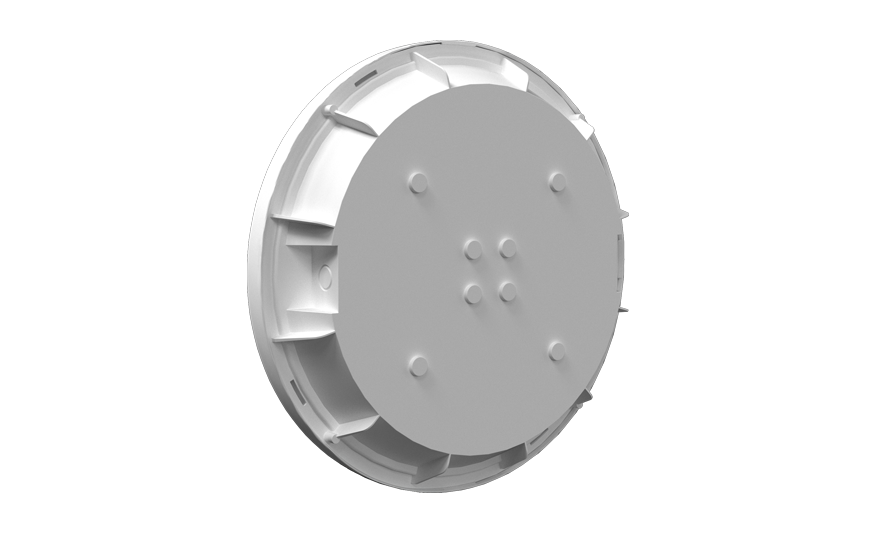

- Conduit Entry: Flat side and rear entry with BESA fixings for versatile installation
- Easy Install: Snap-fit, peel-off trim with twist-lock diffuser
- Bracket Free Ceiling & Wall Installation: Designed for direct, flush mounting on any flat surface
- Smart Integration: Compatible with Tamlite’s VISION lighting controls
- Application: Suitable for communal areas, corridors, stairwells and wet environments
Product Filter
If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.
| Order Code | Description | lm | W | lm/W | Dia(mm) | D(mm) | Folio |
|---|---|---|---|---|---|---|---|
| NEP160NW | 13W - Opal diffuser - 4000K - White | 1600 | 13 | 122 | 370 | 90 | |
| NEP160NWA3 | 13W - Opal diffuser - 4000K - White - Fixed output - Emergency self-test | 1600 | 13 | 122 | 370 | 90 | |
| NEP160NWA3MS | 13W - Opal diffuser - 4000K - White - Fixed output - Emergency self-test - Microwave sensor | 1600 | 13 | 122 | 370 | 90 | |
| NEP160NWD | 13W - Opal diffuser - 4000K - White - Dimmable DALI | 1600 | 13 | 122 | 370 | 90 | |
| NEP160NWD3 | 13W - Opal diffuser - 4000K - White - Fixed output - DALI Emergency self-test | 1600 | 13 | 122 | 370 | 90 | |
| NEP160NWD3MS | 13W - Opal diffuser - 4000K - White - Fixed output - DALI Emergency self-test - Microwave sensor | 1600 | 13 | 122 | 370 | 90 | |
| NEP160NWDA3 | 13W - Opal diffuser - 4000K - White - Dimmable DALI - Emergency self-test | 1600 | 13 | 122 | 370 | 90 | |
| NEP160NWDA3MS | 13W - Opal diffuser - 4000K - White - Emergency self-test - Microwave sensor | 1600 | 13 | 122 | 370 | 90 | |
| NEP160NWDD3 | 13W - Opal diffuser - 4000K - White - Dimmable DALI - DALI Emergency self-test | 1600 | 13 | 122 | 370 | 90 | |
| NEP160NWDD3MS | 13W - Opal diffuser - 4000K - White - Dimmable DALI - DALI Emergency self-test - Microwave sensor | 1600 | 13 | 122 | 370 | 90 | |
| NEP160NWDM3 | 13W - Opal diffuser - 4000K - White - Dimmable DALI - Emergency | 1600 | 13 | 122 | 370 | 90 | |
| NEP160NWDM3MS | 13W - Opal diffuser - 4000K - White - Dimmable DALI - Emergency - Microwave sensor | 1600 | 13 | 122 | 370 | 90 | |
| NEP160NWDMS | 13W - Opal diffuser - 4000K - White - Dimmable DALI - Microwave sensor | 1600 | 13 | 122 | 370 | 90 | |
| NEP160NWM3 | 13W - Opal diffuser - 4000K - White - Fixed output - Emergency | 1600 | 13 | 122 | 370 | 90 | |
| NEP160NWM3MS | 13W - Opal diffuser - 4000K - White - Fixed output - Emergency - Microwave sensor | 1600 | 13 | 122 | 370 | 90 | |
| NEP160NWMS | 13W - Opal diffuser - 4000K - White - Fixed output - Microwave sensor | 1600 | 13 | 122 | 370 | 90 | |
| NEP160WW | 13W - Opal diffuser - 3000K - White | 1600 | 13 | 122 | 370 | 90 | |
| NEP160WWA3 | 13W - Opal diffuser - 3000K - White - Fixed output - Emergency self-test | 1600 | 13 | 122 | 370 | 90 | |
| NEP160WWA3MS | 13W - Opal diffuser - 3000K - White - Fixed output - Emergency self-test - Microwave sensor | 1600 | 13 | 122 | 370 | 90 | |
| NEP160WWD | 13W - Opal diffuser - 3000K - White - Dimmable DALI | 1600 | 13 | 122 | 370 | 90 | |
| NEP160WWD3 | 13W - Opal diffuser - 3000K - White - Fixed output - DALI Emergency self-test | 1600 | 13 | 122 | 370 | 90 | |
| NEP160WWD3MS | 13W - Opal diffuser - 3000K - White - Fixed output - DALI Emergency self-test - Microwave sensor | 1600 | 13 | 122 | 370 | 90 | |
| NEP160WWDA3 | 13W - Opal diffuser - 3000K - White - Dimmable DALI - Emergency self-test | 1600 | 13 | 122 | 370 | 90 | |
| NEP160WWDA3MS | 13W - Opal diffuser - 3000K - White - Emergency self-test - Microwave sensor | 1600 | 13 | 122 | 370 | 90 | |
| NEP160WWDD3 | 13W - Opal diffuser - 3000K - White - Dimmable DALI - DALI Emergency self-test | 1600 | 13 | 122 | 370 | 90 | |
| NEP160WWDD3MS | 13W - Opal diffuser - 3000K - White - Dimmable DALI - DALI Emergency self-test - Microwave sensor | 1600 | 13 | 122 | 370 | 90 | |
| NEP160WWDM3 | 13W - Opal diffuser - 3000K - White - Dimmable DALI - Emergency | 1600 | 13 | 122 | 370 | 90 | |
| NEP160WWDM3MS | 13W - Opal diffuser - 3000K - White - Dimmable DALI - Emergency - Microwave sensor | 1600 | 13 | 122 | 370 | 90 | |
| NEP160WWDMS | 13W - Opal diffuser - 3000K - White - Dimmable DALI - Microwave sensor | 1600 | 13 | 122 | 370 | 90 | |
| NEP160WWM3 | 13W - Opal diffuser - 3000K - White - Fixed output - Emergency | 1600 | 13 | 122 | 370 | 90 | |
| NEP160WWM3MS | 13W - Opal diffuser - 3000K - White - Fixed output - Emergency - Microwave sensor | 1600 | 13 | 122 | 370 | 90 | |
| NEP160WWMS | 13W - Opal diffuser - 3000K - White - Fixed output - Microwave sensor | 1600 | 13 | 122 | 370 | 90 | |
| NEP210NW | 17W - Opal diffuser - 4000K - White | 2100 | 17 | 122 | 370 | 90 | |
| NEP210NWA3 | 17W - Opal diffuser - 4000K - White - Fixed output - Emergency self-test | 2100 | 17 | 122 | 370 | 90 | |
| NEP210NWA3MS | 17W - Opal diffuser - 4000K - White - Fixed output - Emergency self-test - Microwave sensor | 2100 | 17 | 122 | 370 | 90 | |
| NEP210NWD | 17W - Opal diffuser - 4000K - White - Dimmable DALI | 2100 | 17 | 122 | 370 | 90 | |
| NEP210NWD3 | 17W - Opal diffuser - 4000K - White - Fixed output - DALI Emergency self-test | 2100 | 17 | 122 | 370 | 90 | |
| NEP210NWD3MS | 17W - Opal diffuser - 4000K - White - Fixed output - DALI Emergency self-test - Microwave sensor | 2100 | 17 | 122 | 370 | 90 | |
| NEP210NWDA3 | 17W - Opal diffuser - 4000K - White - Dimmable DALI - Emergency self-test | 2100 | 17 | 122 | 370 | 90 | |
| NEP210NWDA3MS | 17W - Opal diffuser - 4000K - White - Emergency self-test - Microwave sensor | 2100 | 17 | 122 | 370 | 90 | |
| NEP210NWDD3 | 17W - Opal diffuser - 4000K - White - Dimmable DALI - DALI Emergency self-test | 2100 | 17 | 122 | 370 | 90 | |
| NEP210NWDD3MS | 17W - Opal diffuser - 4000K - White - Dimmable DALI - DALI Emergency self-test - Microwave sensor | 2100 | 17 | 122 | 370 | 90 | |
| NEP210NWDM3 | 17W - Opal diffuser - 4000K - White - Dimmable DALI - Emergency | 2100 | 17 | 122 | 370 | 90 | |
| NEP210NWDM3MS | 17W - Opal diffuser - 4000K - White - Dimmable DALI - Emergency - Microwave sensor | 2100 | 17 | 122 | 370 | 90 | |
| NEP210NWDMS | 17W - Opal diffuser - 4000K - White - Dimmable DALI - Microwave sensor | 2100 | 17 | 122 | 370 | 90 | |
| NEP210NWM3 | 17W - Opal diffuser - 4000K - White - Fixed output - Emergency | 2100 | 17 | 122 | 370 | 90 | |
| NEP210NWM3MS | 17W - Opal diffuser - 4000K - White - Fixed output - Emergency - Microwave sensor | 2100 | 17 | 122 | 370 | 90 | |
| NEP210NWMS | 17W - Opal diffuser - 4000K - White - Fixed output - Microwave sensor | 2100 | 17 | 122 | 370 | 90 | |
| NEP210WW | 17W - Opal diffuser - 3000K - White | 2100 | 17 | 122 | 370 | 90 | |
| NEP210WWA3 | 17W - Opal diffuser - 3000K - White - Fixed output - Emergency self-test | 2100 | 17 | 122 | 370 | 90 | |
| NEP210WWA3MS | 17W - Opal diffuser - 3000K - White - Fixed output - Emergency self-test - Microwave sensor | 2100 | 17 | 122 | 370 | 90 | |
| NEP210WWD | 17W - Opal diffuser - 3000K - White - Dimmable DALI | 2100 | 17 | 122 | 370 | 90 | |
| NEP210WWD3 | 17W - Opal diffuser - 3000K - White - Fixed output - DALI Emergency self-test | 2100 | 17 | 122 | 370 | 90 | |
| NEP210WWD3MS | 17W - Opal diffuser - 3000K - White - Fixed output - DALI Emergency self-test - Microwave sensor | 2100 | 17 | 122 | 370 | 90 | |
| NEP210WWDA3 | 17W - Opal diffuser - 3000K - White - Dimmable DALI - Emergency self-test | 2100 | 17 | 122 | 370 | 90 | |
| NEP210WWDA3MS | 17W - Opal diffuser - 3000K - White - Emergency self-test - Microwave sensor | 2100 | 17 | 122 | 370 | 90 | |
| NEP210WWDD3 | 17W - Opal diffuser - 3000K - White - Dimmable DALI - DALI Emergency self-test | 2100 | 17 | 122 | 370 | 90 | |
| NEP210WWDD3MS | 17W - Opal diffuser - 3000K - White - Dimmable DALI - DALI Emergency self-test - Microwave sensor | 2100 | 17 | 122 | 370 | 90 | |
| NEP210WWDM3 | 17W - Opal diffuser - 3000K - White - Dimmable DALI - Emergency | 2100 | 17 | 122 | 370 | 90 | |
| NEP210WWDM3MS | 17W - Opal diffuser - 3000K - White - Dimmable DALI - Emergency - Microwave sensor | 2100 | 17 | 122 | 370 | 90 | |
| NEP210WWDMS | 17W - Opal diffuser - 3000K - White - Dimmable DALI - Microwave sensor | 2100 | 17 | 122 | 370 | 90 | |
| NEP210WWM3 | 17W - Opal diffuser - 3000K - White - Fixed output - Emergency | 2100 | 17 | 122 | 370 | 90 | |
| NEP210WWM3MS | 17W - Opal diffuser - 3000K - White - Fixed output - Emergency - Microwave sensor | 2100 | 17 | 122 | 370 | 90 | |
| NEP210WWMS | 17W - Opal diffuser - 3000K - White - Fixed output - Microwave sensor | 2100 | 17 | 122 | 370 | 90 |
