FX LED

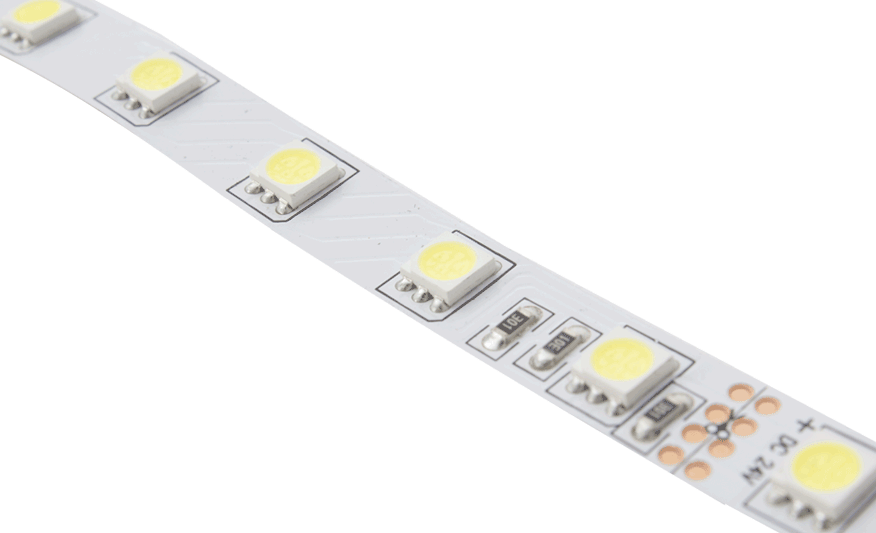

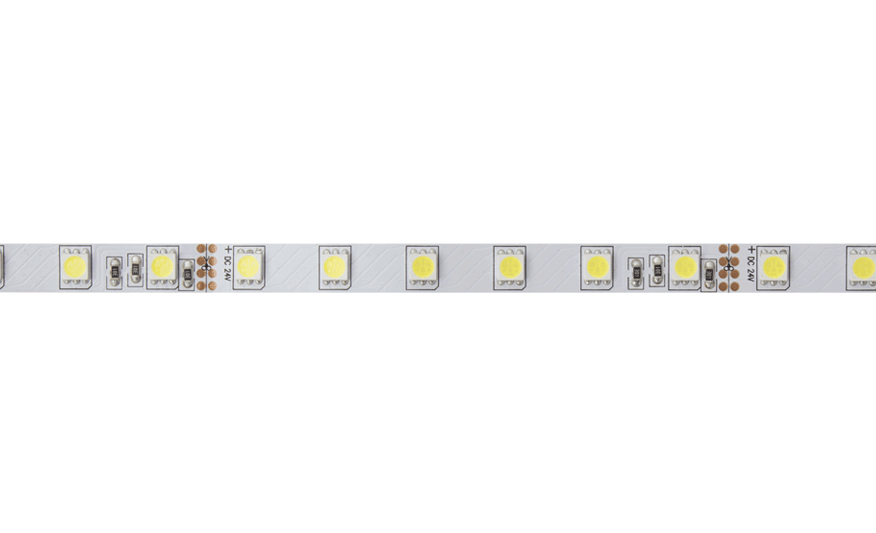

FX LED - 24V IP20
- Suitable for kitchens, bars, restaurants and under counter displays
- 24V rating for high output applications
- IP20 rated for indoor use only
- Available in warm white (3000K) or neutral white (4000K)
- Maximum run of 10m
- 900 lumens per metre /14.4W per metre
- Cutting points every 50mm/3 LEDs
- CRI: Ra>80
Product Filter
If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.
| Order Code | Description | lm/M | W/M | L(mm) | W(mm) | D(mm) |
|---|---|---|---|---|---|---|
| FX2410NW | 24V - 10M - 4000K | 900 | 14.4 | 10000 | 10 | 2 |
| FX2410WW | 24V - 10M - 3000K | 900 | 14.4 | 10000 | 10 | 2 |
| FX241NW | 24V - 1M - 4000K | 900 | 14.4 | 1000 | 10 | 2 |
| FX241WW | 24V - 1M - 3000K | 900 | 14.4 | 1000 | 10 | 2 |
| FX242NW | 24V - 2M - 4000K | 900 | 14.4 | 2000 | 10 | 2 |
| FX242WW | 24V - 2M - 3000K | 900 | 14.4 | 2000 | 10 | 2 |
| FX243NW | 24V - 3M - 4000K | 900 | 14.4 | 3000 | 10 | 2 |
| FX243WW | 24V - 3M - 3000K | 900 | 14.4 | 3000 | 10 | 2 |
| FX244NW | 24V - 4M - 4000K | 900 | 14.4 | 4000 | 10 | 2 |
| FX244WW | 24V - 4M - 3000K | 900 | 14.4 | 4000 | 10 | 2 |
| FX245NW | 24V - 5M - 4000K | 900 | 14.4 | 5000 | 10 | 2 |
| FX245WW | 24V - 5M - 3000K | 900 | 14.4 | 5000 | 10 | 2 |
| FX246NW | 24V - 6M - 4000K | 900 | 14.4 | 6000 | 10 | 2 |
| FX246WW | 24V - 6M - 3000K | 900 | 14.4 | 6000 | 10 | 2 |
| FX247NW | 24V - 7M - 4000K | 900 | 14.4 | 7000 | 10 | 2 |
| FX247WW | 24V - 7M - 3000K | 900 | 14.4 | 7000 | 10 | 2 |
| FX248NW | 24V - 8M - 4000K | 900 | 14.4 | 8000 | 10 | 2 |
| FX248WW | 24V - 8M - 3000K | 900 | 14.4 | 8000 | 10 | 2 |
| FX249NW | 24V - 9M - 4000K | 900 | 14.4 | 9000 | 10 | 2 |
| FX249WW | 24V - 9M - 3000K | 900 | 14.4 | 9000 | 10 | 2 |
