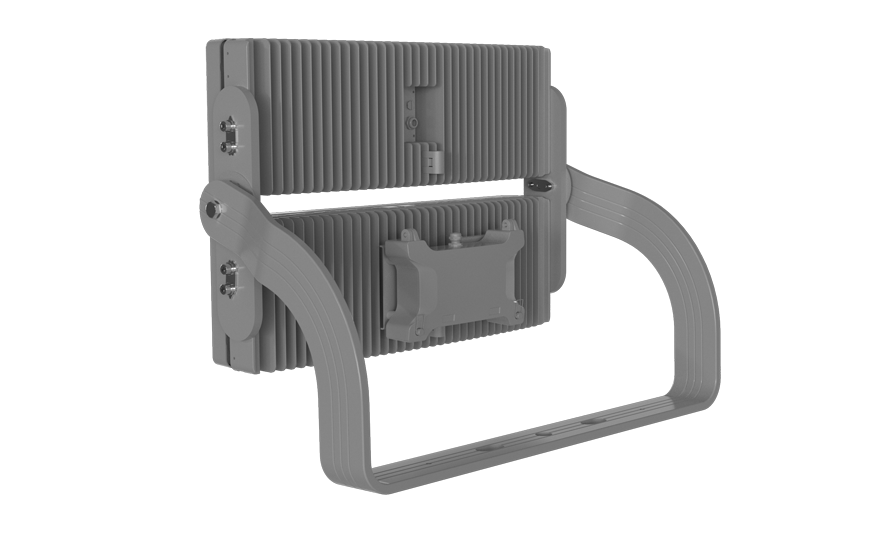

APEX
Combining exceptional optical performance with a lightweight modular design, the APEX LED sports floodlight delivers precise illumination, simplified installation and dependable long term performance
- Exceptional Optical Performance
Advanced optics provide precise light distribution and excellent uniformity, helping maximise visibility across sports facilities - Lightweight Construction
An optimised lightweight design improves handling on site, helping make installation and servicing quicker and safer. - Remote Driver
Allows the control gear to be mounted up to 100m from the luminaire, improving accessibility for installation and future servicing. - High Output Performance
Delivering up to 174,000 lumens at up to 145 lm/W, providing powerful illumination while helping reduce energy consumption and operating costs - Precision Aiming
5° incremental adjustment allows accurate beam positioning to achieve optimum light distribution. - DALI Dimmable
Supports DALI dimming and is compatible with DMX control systems for flexible lighting management. - IP66 & IK08 Rated
Designed to withstand harsh outdoor environments with excellent protection against water, dust and impact. - Long Service Life
A 100,000 hour rated lifetime helps minimise maintenance requirements and reduce whole life costs - Note:
Driver Weight: 5.2kg
Product Filter
If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.
| Order Code | Description | lm | W | lm/W | H(mm) | W(mm) | D(mm) |
|---|---|---|---|---|---|---|---|
| APX17400AWNWD | 1200W - Asymmetric Wide - 4000K - Grey | 173806 | 1200 | 145 | 437 | 681 | 329 |
