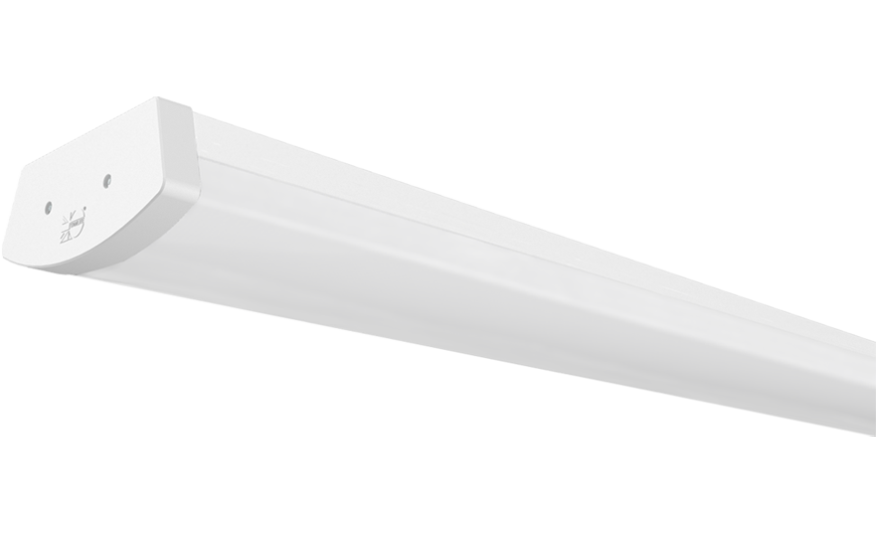

UNITY OPAL
Surface Module with Opal Diffuser
- Suitable for offices and schools
- Available in 2 lengths and 2 outputs
- Gear options including DALI and emergency available
- Microwave sensor option available
- CRI: Ra>80
- Steel body finished in white (RAL 9016)
- Opal Polycarbonate TP(a) diffuser
- Polycarbonate extruded diffuser with end caps and screw fixings
Product Filter
If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.
| Order Code | Description | lm | W | lm/W | L(mm) | W(mm) | D(mm) | Folio |
|---|---|---|---|---|---|---|---|---|
| UNT4320ONW | 23W - Opal diffuser - 4000K | 3200 | 23 | 139 | 1177 | 165 | 66 | |
| UNT4320ONWA3 | 23W - Opal diffuser - 4000K | 3200 | 23 | 139 | 1177 | 165 | 66 | |
| UNT4320ONWA3MS | 23W - Opal diffuser - 4000K | 3200 | 23 | 139 | 1177 | 165 | 66 | |
| UNT4320ONWD | 23W - Opal diffuser - 4000K | 3200 | 23 | 139 | 1177 | 165 | 66 | |
| UNT4320ONWD3 | 23W - Opal diffuser - 4000K | 3200 | 23 | 139 | 1177 | 165 | 66 | |
| UNT4320ONWD3MS | 23W - Opal diffuser - 4000K | 3200 | 23 | 139 | 1177 | 165 | 66 | |
| UNT4320ONWDA3 | 23W - Opal diffuser - 4000K | 3200 | 23 | 139 | 1177 | 165 | 66 | |
| UNT4320ONWDA3MS | 23W - Opal diffuser - 4000K | 3200 | 23 | 139 | 1177 | 165 | 66 | |
| UNT4320ONWDD3 | 23W - Opal diffuser - 4000K | 3200 | 23 | 139 | 1177 | 165 | 66 | |
| UNT4320ONWDD3MS | 23W - Opal diffuser - 4000K | 3200 | 23 | 139 | 1177 | 165 | 66 | |
| UNT4320ONWDM3 | 23W - Opal diffuser - 4000K | 3200 | 23 | 139 | 1177 | 165 | 66 | |
| UNT4320ONWDM3MS | 23W - Opal diffuser - 4000K | 3200 | 23 | 139 | 1177 | 165 | 66 | |
| UNT4320ONWDMS | 23W - Opal diffuser - 4000K | 3200 | 23 | 139 | 1177 | 165 | 66 | |
| UNT4320ONWM3 | 23W - Opal diffuser - 4000K | 3200 | 23 | 139 | 1177 | 165 | 66 | |
| UNT4320ONWM3MS | 23W - Opal diffuser - 4000K | 3200 | 23 | 139 | 1177 | 165 | 66 | |
| UNT4320ONWMS | 23W - Opal diffuser - 4000K | 3200 | 23 | 139 | 1177 | 165 | 66 | |
| UNT5420ONW | 29W - Opal diffuser - 4000K | 4200 | 29 | 146 | 1477 | 165 | 66 | |
| UNT5420ONWA3 | 29W - Opal diffuser - 4000K | 4200 | 29 | 146 | 1477 | 165 | 66 | |
| UNT5420ONWA3MS | 29W - Opal diffuser - 4000K | 4200 | 29 | 146 | 1477 | 165 | 66 | |
| UNT5420ONWD | 29W - Opal diffuser - 4000K | 4200 | 29 | 146 | 1477 | 165 | 66 | |
| UNT5420ONWD3 | 29W - Opal diffuser - 4000K | 4200 | 29 | 146 | 1477 | 165 | 66 | |
| UNT5420ONWD3MS | 29W - Opal diffuser - 4000K | 4200 | 29 | 146 | 1477 | 165 | 66 | |
| UNT5420ONWDA3 | 29W - Opal diffuser - 4000K | 4200 | 29 | 146 | 1477 | 165 | 66 | |
| UNT5420ONWDA3MS | 29W - Opal diffuser - 4000K | 4200 | 29 | 146 | 1477 | 165 | 66 | |
| UNT5420ONWDD3 | 29W - Opal diffuser - 4000K | 4200 | 29 | 146 | 1477 | 165 | 66 | |
| UNT5420ONWDD3MS | 29W - Opal diffuser - 4000K | 4200 | 29 | 146 | 1477 | 165 | 66 | |
| UNT5420ONWDM3 | 29W - Opal diffuser - 4000K | 4200 | 29 | 146 | 1477 | 165 | 66 | |
| UNT5420ONWDM3MS | 29W - Opal diffuser - 4000K | 4200 | 29 | 146 | 1477 | 165 | 66 | |
| UNT5420ONWDMS | 29W - Opal diffuser - 4000K | 4200 | 29 | 146 | 1477 | 165 | 66 | |
| UNT5420ONWM3 | 29W - Opal diffuser - 4000K | 4200 | 29 | 146 | 1477 | 165 | 66 | |
| UNT5420ONWM3MS | 29W - Opal diffuser - 4000K | 4200 | 29 | 146 | 1477 | 165 | 66 | |
| UNT5420ONWMS | 29W - Opal diffuser - 4000K | 4200 | 29 | 146 | 1477 | 165 | 66 |
