SIGNUM X MP

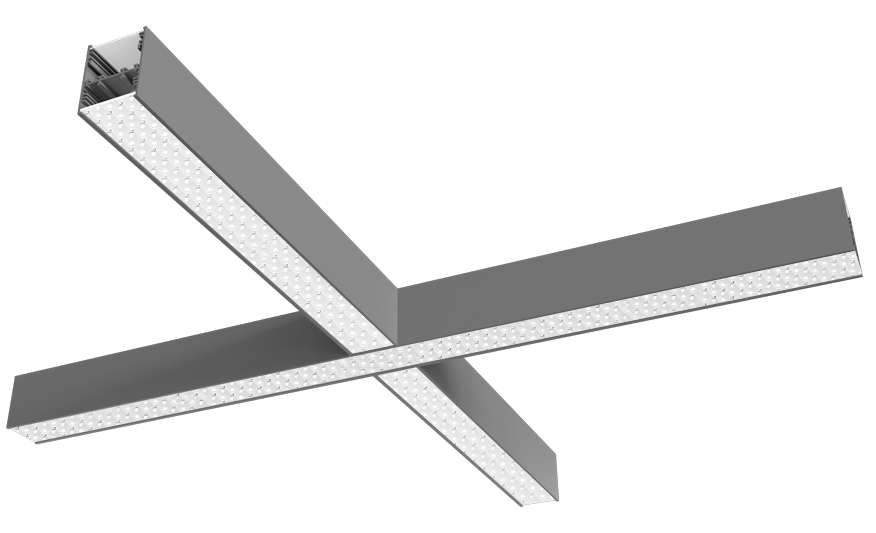

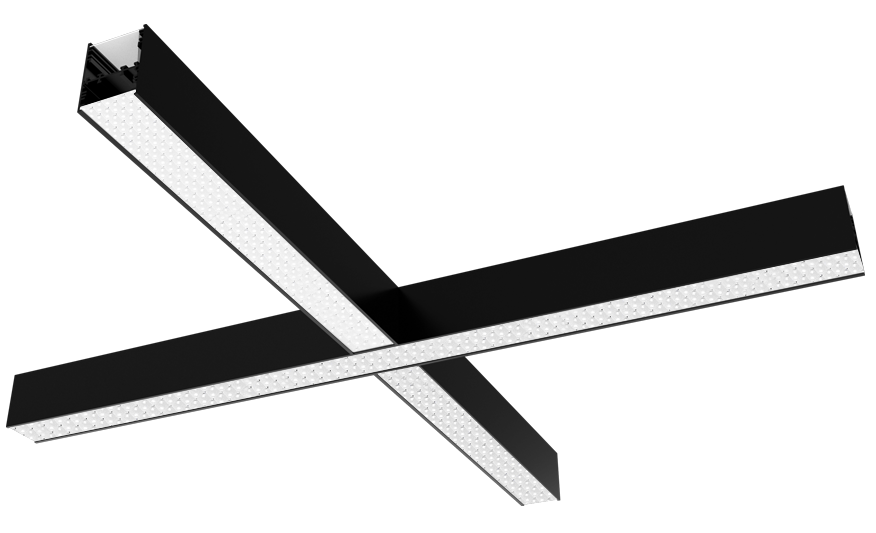

Suspended X Shaped Connector for Signum Suspended with Microprism Diffuser
- Construction: Lightweight extruded aluminium housing finished in White (RAL 9016), Grey (RAL 9006) or Black (RAL 9005) for durability and sustainability.
- Colour Temperature: Supplied in neutral white (4000K)
- Microprism Diffuser: Low-glare output for visual comfort
- System Configuration: Supports standalone or continuous runs with T, X and corner modules for layout flexibility
- Energy Efficiency: Achieves up to 118 lm/W (lumens per watt) output
- Smart Integration: Compatible with Tamlite’s VISION lighting controls
Product Filter
If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.
| Order Code | Description | lm | W | lm/W | L(mm) | W(mm) | D(mm) | Folio |
|---|---|---|---|---|---|---|---|---|
| SGX530MPNWB | 45W - Microprism Diffuser - 4000K - Black | 4000 | 45 | 118 | 1117 | 1117 | 75 | |
| SGX530MPNWBD | 45W - Microprism Diffuser - 4000K - Black | 4000 | 45 | 118 | 1117 | 1117 | 75 | |
| SGX530MPNWG | 45W - Microprism Diffuser - 4000K - Grey | 4000 | 45 | 118 | 1117 | 1117 | 75 | |
| SGX530MPNWGD | 45W - Microprism Diffuser - 4000K - Grey | 4000 | 45 | 118 | 1117 | 1117 | 75 | |
| SGX530MPNWW | 45W - Microprism Diffuser - 4000K - White | 4000 | 45 | 118 | 1117 | 1117 | 75 | |
| SGX530MPNWWD | 45W - Microprism Diffuser - 4000K - White | 4000 | 45 | 118 | 1117 | 1117 | 75 |
