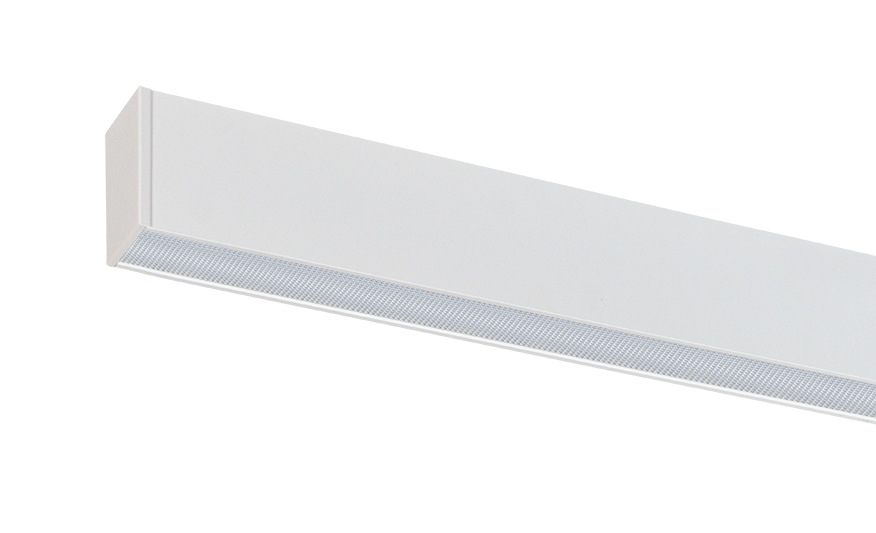

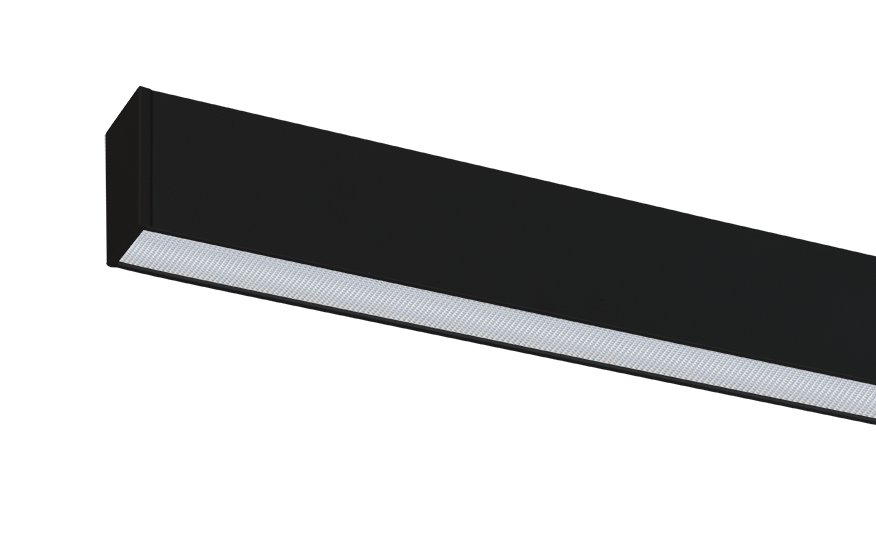

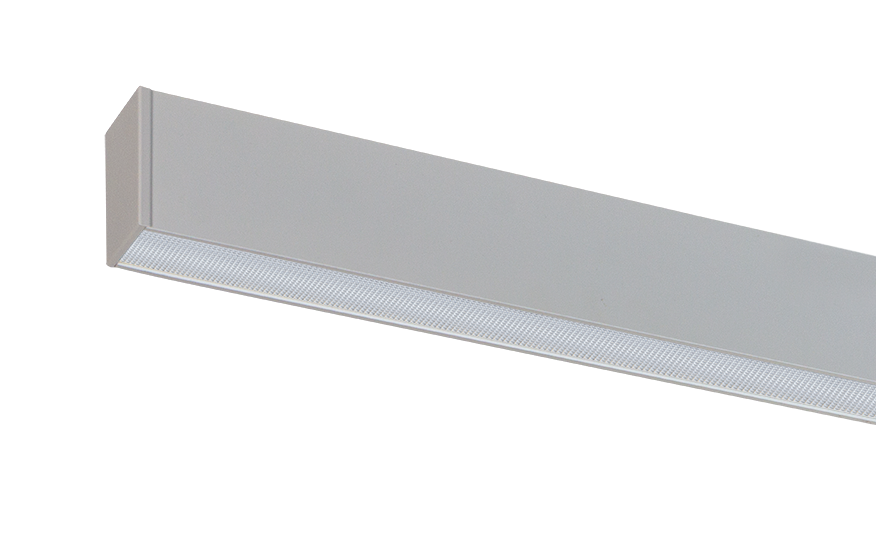

SIGNUM MPD
Direct Only with Microprism Diffuser
- Available in 2 module lengths and 3 colour options
- Available with opal or microprism diffuser
- Direct only output
- Surface or suspended fix
- Integrated emergency option available
- Connection accessories to create dynamic systems
- CRI: Ra>80
- Extruded aluminium body finished in white (RAL 9016), grey (RAL 9006) or black (RAL 9005)
- Polycarbonate end caps
- Supplied in neutral white (4000K) LED
- Up to 132 lumens per watt efficacy
Product Filter
If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.
| Order Code | Description | lm | W | lm/W | L(mm) | W(mm) | D(mm) | Folio |
|---|---|---|---|---|---|---|---|---|
| SGD4250MPNWB | 19W - Microprism Diffuser - 4000K - Black | 2500 | 19 | 132 | 1085 | 57 | 75 | |
| SGD4250MPNWBA3 | 19W - Microprism Diffuser - 4000K - Black | 2500 | 19 | 132 | 1085 | 57 | 75 | |
| SGD4250MPNWBD | 19W - Microprism Diffuser - 4000K - Black | 2500 | 19 | 132 | 1085 | 57 | 75 | |
| SGD4250MPNWBD3 | 19W - Microprism Diffuser - 4000K - Black | 2500 | 19 | 132 | 1085 | 57 | 75 | |
| SGD4250MPNWBDA3 | 19W - Microprism Diffuser - 4000K - Black | 2500 | 19 | 132 | 1085 | 57 | 75 | |
| SGD4250MPNWBDD3 | 19W - Microprism Diffuser - 4000K - Black | 2500 | 19 | 132 | 1085 | 57 | 75 | |
| SGD4250MPNWBDM3 | 19W - Microprism Diffuser - 4000K - Black | 2500 | 19 | 132 | 1085 | 57 | 75 | |
| SGD4250MPNWBM3 | 19W - Microprism Diffuser - 4000K - Black | 2500 | 19 | 132 | 1085 | 57 | 75 | |
| SGD4250MPNWG | 19W - Microprism Diffuser - 4000K - Grey | 2500 | 19 | 132 | 1085 | 57 | 75 | |
| SGD4250MPNWGA3 | 19W - Microprism Diffuser - 4000K - Grey | 2500 | 19 | 132 | 1085 | 57 | 75 | |
| SGD4250MPNWGD | 19W - Microprism Diffuser - 4000K - Grey | 2500 | 19 | 132 | 1085 | 57 | 75 | |
| SGD4250MPNWGD3 | 19W - Microprism Diffuser - 4000K - Grey | 2500 | 19 | 132 | 1085 | 57 | 75 | |
| SGD4250MPNWGDA3 | 19W - Microprism Diffuser - 4000K - Grey | 2500 | 19 | 132 | 1085 | 57 | 75 | |
| SGD4250MPNWGDD3 | 19W - Microprism Diffuser - 4000K - Grey | 2500 | 19 | 132 | 1085 | 57 | 75 | |
| SGD4250MPNWGDM3 | 19W - Microprism Diffuser - 4000K - Grey | 2500 | 19 | 132 | 1085 | 57 | 75 | |
| SGD4250MPNWGM3 | 19W - Microprism Diffuser - 4000K - Grey | 2500 | 19 | 132 | 1085 | 57 | 75 | |
| SGD4250MPNWW | 19W - Microprism Diffuser - 4000K - White | 2500 | 19 | 132 | 1085 | 57 | 75 | |
| SGD4250MPNWWA3 | 19W - Microprism Diffuser - 4000K - White | 2500 | 19 | 132 | 1085 | 57 | 75 | |
| SGD4250MPNWWD | 19W - Microprism Diffuser - 4000K - White | 2500 | 19 | 132 | 1085 | 57 | 75 | |
| SGD4250MPNWWD3 | 19W - Microprism Diffuser - 4000K - White | 2500 | 19 | 132 | 1085 | 57 | 75 | |
| SGD4250MPNWWDA3 | 19W - Microprism Diffuser - 4000K - White | 2500 | 19 | 132 | 1085 | 57 | 75 | |
| SGD4250MPNWWDD3 | 19W - Microprism Diffuser - 4000K - White | 2500 | 19 | 132 | 1085 | 57 | 75 | |
| SGD4250MPNWWDM3 | 19W - Microprism Diffuser - 4000K - White | 2500 | 19 | 132 | 1085 | 57 | 75 | |
| SGD4250MPNWWM3 | 19W - Microprism Diffuser - 4000K - White | 2500 | 19 | 132 | 1085 | 57 | 75 | |
| SGD5370MPNWB | 28W - Microprism Diffuser - 4000K - Black | 3700 | 28 | 132 | 1625 | 57 | 75 | |
| SGD5370MPNWBA3 | 28W - Microprism Diffuser - 4000K - Black | 3700 | 28 | 132 | 1625 | 57 | 75 | |
| SGD5370MPNWBD | 28W - Microprism Diffuser - 4000K - Black | 3700 | 28 | 132 | 1625 | 57 | 75 | |
| SGD5370MPNWBD3 | 28W - Microprism Diffuser - 4000K - Black | 3700 | 28 | 132 | 1625 | 57 | 75 | |
| SGD5370MPNWBDA3 | 28W - Microprism Diffuser - 4000K - Black | 3700 | 28 | 132 | 1625 | 57 | 75 | |
| SGD5370MPNWBDD3 | 28W - Microprism Diffuser - 4000K - Black | 3700 | 28 | 132 | 1625 | 57 | 75 | |
| SGD5370MPNWBDM3 | 28W - Microprism Diffuser - 4000K - Black | 3700 | 28 | 132 | 1625 | 57 | 75 | |
| SGD5370MPNWBM3 | 28W - Microprism Diffuser - 4000K - Black | 3700 | 28 | 132 | 1625 | 57 | 75 | |
| SGD5370MPNWG | 28W - Microprism Diffuser - 4000K - Grey | 3700 | 28 | 132 | 1625 | 57 | 75 | |
| SGD5370MPNWGA3 | 28W - Microprism Diffuser - 4000K - Grey | 3700 | 28 | 132 | 1625 | 57 | 75 | |
| SGD5370MPNWGD | 28W - Microprism Diffuser - 4000K - Grey | 3700 | 28 | 132 | 1625 | 57 | 75 | |
| SGD5370MPNWGD3 | 28W - Microprism Diffuser - 4000K - Grey | 3700 | 28 | 132 | 1625 | 57 | 75 | |
| SGD5370MPNWGDA3 | 28W - Microprism Diffuser - 4000K - Grey | 3700 | 28 | 132 | 1625 | 57 | 75 | |
| SGD5370MPNWGDD3 | 28W - Microprism Diffuser - 4000K - Grey | 3700 | 28 | 132 | 1625 | 57 | 75 | |
| SGD5370MPNWGDM3 | 28W - Microprism Diffuser - 4000K - Grey | 3700 | 28 | 132 | 1625 | 57 | 75 | |
| SGD5370MPNWGM3 | 28W - Microprism Diffuser - 4000K - Grey | 3700 | 28 | 132 | 1625 | 57 | 75 | |
| SGD5370MPNWW | 28W - Microprism Diffuser - 4000K - White | 3700 | 28 | 132 | 1625 | 57 | 75 | |
| SGD5370MPNWWA3 | 28W - Microprism Diffuser - 4000K - White | 3700 | 28 | 132 | 1625 | 57 | 75 | |
| SGD5370MPNWWD | 28W - Microprism Diffuser - 4000K - White | 3700 | 28 | 132 | 1625 | 57 | 75 | |
| SGD5370MPNWWD3 | 28W - Microprism Diffuser - 4000K - White | 3700 | 28 | 132 | 1625 | 57 | 75 | |
| SGD5370MPNWWDA3 | 28W - Microprism Diffuser - 4000K - White | 3700 | 28 | 132 | 1625 | 57 | 75 | |
| SGD5370MPNWWDD3 | 28W - Microprism Diffuser - 4000K - White | 3700 | 28 | 132 | 1625 | 57 | 75 | |
| SGD5370MPNWWDM3 | 28W - Microprism Diffuser - 4000K - White | 3700 | 28 | 132 | 1625 | 57 | 75 | |
| SGD5370MPNWWM3 | 28W - Microprism Diffuser - 4000K - White | 3700 | 28 | 132 | 1625 | 57 | 75 |
