Home > Products > SIGNUM Range > SIGNUM MP

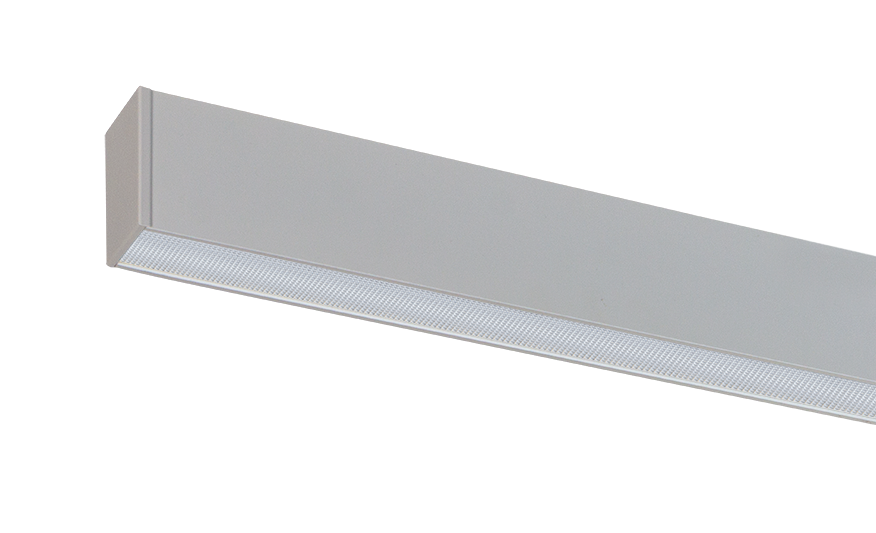

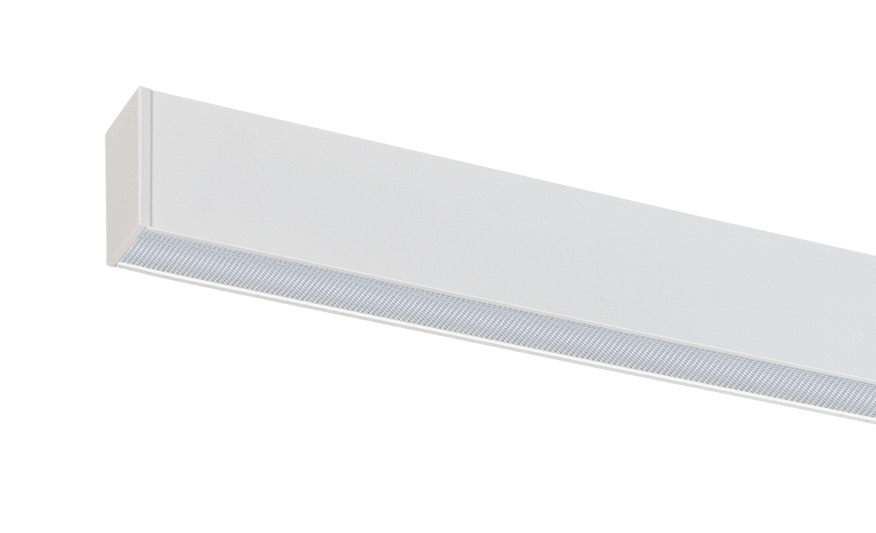

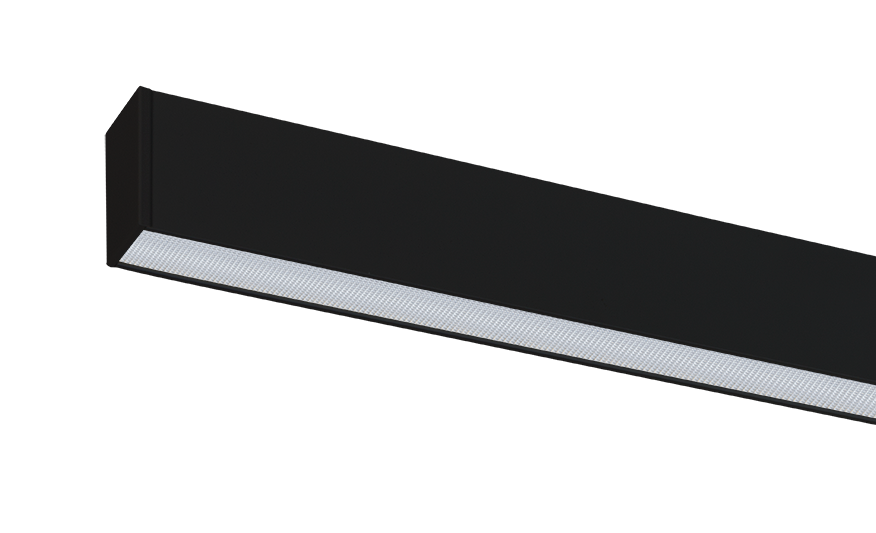

SIGNUM MP

Suspended Linear Module with Microprism Optic

  • Available as continuous system with straight connector accessory
  • Available in 2 module lengths and 3 colour options
  • Integrated emergency option available
  • Supplied with plastic end caps
  • CRI: Ra>80
  • Extruded aluminium body finished in white (RAL 9016), grey (RAL 9006) or black (RAL 9005)
  • Polycarbonate Tp(a) rated microprismatic diffuser
  • Suspended direct/indirect modular with micro-prism diffuser for open areas
  • Up to 141 lumens per watt efficacy
IK087 Years Warranty2 Years On-Site Warranty (T&C`s Apply)Vision OneVision ConnectVision Connect ProVision AirVision Air Pro
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Polar Curve
Photometric Data
TM66 Certificate
Product Leaflet
Instruction leaflet
Order Code Description lm W lm/W L(mm) W(mm) D(mm) Folio
SGN4440MPNWB 33W - Microprism Diffuser - 4000K - Black 4400 33 133 1085 57 75
SGN4440MPNWBA3 33W - Microprism Diffuser - 4000K - Black 4400 33 133 1085 57 75
SGN4440MPNWBD 33W - Microprism Diffuser - 4000K - Black 4400 33 133 1085 57 75
SGN4440MPNWBD3 33W - Microprism Diffuser - 4000K - Black 4400 33 133 1085 57 75
SGN4440MPNWBDA3 33W - Microprism Diffuser - 4000K - Black 4400 33 133 1085 57 75
SGN4440MPNWBDD3 33W - Microprism Diffuser - 4000K - Black 4400 33 133 1085 57 75
SGN4440MPNWBDM3 33W - Microprism Diffuser - 4000K - Black 4400 33 133 1085 57 75
SGN4440MPNWBM3 33W - Microprism Diffuser - 4000K - Black 4400 33 133 1085 57 75
SGN4440MPNWDA3 33W - Microprism Diffuser - 4000K - Grey 4400 33 133 1085 57 75
SGN4440MPNWG 33W - Microprism Diffuser - 4000K - Grey 4400 33 133 1085 57 75
SGN4440MPNWGA3 33W - Microprism Diffuser - 4000K - Grey 4400 33 133 1085 57 75
SGN4440MPNWGD 33W - Microprism Diffuser - 4000K - Grey 4400 33 133 1085 57 75
SGN4440MPNWGD3 33W - Microprism Diffuser - 4000K - Grey 4400 33 133 1085 57 75
SGN4440MPNWGDD3 33W - Microprism Diffuser - 4000K - Grey 4400 33 133 1085 57 75
SGN4440MPNWGDM3 33W - Microprism Diffuser - 4000K - Grey 4400 33 133 1085 57 75
SGN4440MPNWGM3 33W - Microprism Diffuser - 4000K - Grey 4400 33 133 1085 57 75
SGN4440MPNWW 33W - Microprism Diffuser - 4000K - White 4400 33 133 1085 57 75
SGN4440MPNWWA3 33W - Microprism Diffuser - 4000K - White 4400 33 133 1085 57 75
SGN4440MPNWWD 33W - Microprism Diffuser - 4000K - White 4400 33 133 1085 57 75
SGN4440MPNWWD3 33W - Microprism Diffuser - 4000K - White 4400 33 133 1085 57 75
SGN4440MPNWWDA3 33W - Microprism Diffuser - 4000K - White 4400 33 133 1085 57 75
SGN4440MPNWWDD3 33W - Microprism Diffuser - 4000K - White 4400 33 133 1085 57 75
SGN4440MPNWWDM3 33W - Microprism Diffuser - 4000K - White 4400 33 133 1085 57 75
SGN4440MPNWWM3 33W - Microprism Diffuser - 4000K - White 4400 33 133 1085 57 75
SGN5570MPNWB 41W - Microprism Diffuser - 4000K - Black 5600 41 137 1625 57 75
SGN5570MPNWBA3 41W - Microprism Diffuser - 4000K - Black 5600 41 137 1625 57 75
SGN5570MPNWBD 41W - Microprism Diffuser - 4000K - Black 5600 41 137 1625 57 75
SGN5570MPNWBD3 41W - Microprism Diffuser - 4000K - Black 5600 41 137 1625 57 75
SGN5570MPNWBDA3 41W - Microprism Diffuser - 4000K - Black 5600 41 137 1625 57 75
SGN5570MPNWBDD3 41W - Microprism Diffuser - 4000K - Black 5600 41 137 1625 57 75
SGN5570MPNWBDM3 41W - Microprism Diffuser - 4000K - Black 5600 41 137 1625 57 75
SGN5570MPNWBM3 41W - Microprism Diffuser - 4000K - Black 5600 41 137 1625 57 75
SGN5570MPNWDA3 41W - Microprism Diffuser - 4000K - Grey 5600 41 137 1625 57 75
SGN5570MPNWG 41W - Microprism Diffuser - 4000K - Grey 5600 41 137 1625 57 75
SGN5570MPNWGA3 41W - Microprism Diffuser - 4000K - Grey 5600 41 137 1625 57 75
SGN5570MPNWGD 41W - Microprism Diffuser - 4000K - Grey 5600 41 137 1625 57 75
SGN5570MPNWGD3 41W - Microprism Diffuser - 4000K - Grey 5600 41 137 1625 57 75
SGN5570MPNWGDD3 41W - Microprism Diffuser - 4000K - Grey 5600 41 137 1625 57 75
SGN5570MPNWGDM3 41W - Microprism Diffuser - 4000K - Grey 5600 41 137 1625 57 75
SGN5570MPNWGM3 41W - Microprism Diffuser - 4000K - Grey 5600 41 137 1625 57 75
SGN5570MPNWW 41W - Microprism Diffuser - 4000K - White 5600 41 137 1625 57 75
SGN5570MPNWWA3 41W - Microprism Diffuser - 4000K - White 5600 41 137 1625 57 75
SGN5570MPNWWD 41W - Microprism Diffuser - 4000K - White 5600 41 137 1625 57 75
SGN5570MPNWWD3 41W - Microprism Diffuser - 4000K - White 5600 41 137 1625 57 75
SGN5570MPNWWDA3 41W - Microprism Diffuser - 4000K - White 5600 41 137 1625 57 75
SGN5570MPNWWDD3 41W - Microprism Diffuser - 4000K - White 5600 41 137 1625 57 75
SGN5570MPNWWDM3 41W - Microprism Diffuser - 4000K - White 5600 41 137 1625 57 75
SGN5570MPNWWM3 41W - Microprism Diffuser - 4000K - White 5600 41 137 1625 57 75
SGN5790MPNWB 56W - Microprism Diffuser - 4000K - Black 7900 56 141 1625 57 75
SGN5790MPNWBA3 56W - Microprism Diffuser - 4000K - Black 7900 56 141 1625 57 75
SGN5790MPNWBD 56W - Microprism Diffuser - 4000K - Black 7900 56 141 1625 57 75
SGN5790MPNWBD3 56W - Microprism Diffuser - 4000K - Black 7900 56 141 1625 57 75
SGN5790MPNWBDA3 56W - Microprism Diffuser - 4000K - Black 7900 56 141 1625 57 75
SGN5790MPNWBDD3 56W - Microprism Diffuser - 4000K - Black 7900 56 141 1625 57 75
SGN5790MPNWBDM3 56W - Microprism Diffuser - 4000K - Black 7900 56 141 1625 57 75
SGN5790MPNWBM3 56W - Microprism Diffuser - 4000K - Black 7900 56 141 1625 57 75
SGN5790MPNWDA3 56W - Microprism Diffuser - 4000K - Grey 7900 56 141 1625 57 75
SGN5790MPNWG 56W - Microprism Diffuser - 4000K - Grey 7900 56 141 1625 57 75
SGN5790MPNWGA3 56W - Microprism Diffuser - 4000K - Grey 7900 56 141 1625 57 75
SGN5790MPNWGD 56W - Microprism Diffuser - 4000K - Grey 7900 56 141 1625 57 75
SGN5790MPNWGD3 56W - Microprism Diffuser - 4000K - Grey 7900 56 141 1625 57 75
SGN5790MPNWGDD3 56W - Microprism Diffuser - 4000K - Grey 7900 56 141 1625 57 75
SGN5790MPNWGDM3 56W - Microprism Diffuser - 4000K - Grey 7900 56 141 1625 57 75
SGN5790MPNWGM3 56W - Microprism Diffuser - 4000K - Grey 7900 56 141 1625 57 75
SGN5790MPNWW 56W - Microprism Diffuser - 4000K - White 7900 56 141 1625 57 75
SGN5790MPNWWA3 56W - Microprism Diffuser - 4000K - White 7900 56 141 1625 57 75
SGN5790MPNWWD 56W - Microprism Diffuser - 4000K - White 7900 56 141 1625 57 75
SGN5790MPNWWD3 56W - Microprism Diffuser - 4000K - White 7900 56 141 1625 57 75
SGN5790MPNWWDA3 56W - Microprism Diffuser - 4000K - White 7900 56 141 1625 57 75
SGN5790MPNWWDD3 56W - Microprism Diffuser - 4000K - White 7900 56 141 1625 57 75
SGN5790MPNWWDM3 56W - Microprism Diffuser - 4000K - White 7900 56 141 1625 57 75
SGN5790MPNWWM3 56W - Microprism Diffuser - 4000K - White 7900 56 141 1625 57 75
SGN7790MPNWB 56W - Microprism Diffuser - 4000K - Black 7900 56 141 2170 57 75
SGN7790MPNWBA3 56W - Microprism Diffuser - 4000K - Black 7900 56 141 2170 57 75
SGN7790MPNWBD 56W - Microprism Diffuser - 4000K - Black 7900 56 141 2170 57 75
SGN7790MPNWBD3 56W - Microprism Diffuser - 4000K - Black 7900 56 141 2170 57 75
SGN7790MPNWBDA3 56W - Microprism Diffuser - 4000K - Black 7900 56 141 2170 57 75
SGN7790MPNWBDD3 56W - Microprism Diffuser - 4000K - Black 7900 56 141 2170 57 75
SGN7790MPNWBDM3 56W - Microprism Diffuser - 4000K - Black 7900 56 141 2170 57 75
SGN7790MPNWBM3 56W - Microprism Diffuser - 4000K - Black 7900 56 141 2170 57 75
SGN7790MPNWDA3 56W - Microprism Diffuser - 4000K - Grey 7900 56 141 2170 57 75
SGN7790MPNWG 56W - Microprism Diffuser - 4000K - Grey 7900 56 141 2170 57 75
SGN7790MPNWGA3 56W - Microprism Diffuser - 4000K - Grey 7900 56 141 2170 57 75
SGN7790MPNWGD 56W - Microprism Diffuser - 4000K - Grey 7900 56 141 2170 57 75
SGN7790MPNWGD3 56W - Microprism Diffuser - 4000K - Grey 7900 56 141 2170 57 75
SGN7790MPNWGDD3 56W - Microprism Diffuser - 4000K - Grey 7900 56 141 2170 57 75
SGN7790MPNWGDM3 56W - Microprism Diffuser - 4000K - Grey 7900 56 141 2170 57 75
SGN7790MPNWGM3 56W - Microprism Diffuser - 4000K - Grey 7900 56 141 2170 57 75
SGN7790MPNWW 56W - Microprism Diffuser - 4000K - White 7900 56 141 2170 57 75
SGN7790MPNWWA3 56W - Microprism Diffuser - 4000K - White 7900 56 141 2170 57 75
SGN7790MPNWWD 56W - Microprism Diffuser - 4000K - White 7900 56 141 2170 57 75
SGN7790MPNWWD3 56W - Microprism Diffuser - 4000K - White 7900 56 141 2170 57 75
SGN7790MPNWWDA3 56W - Microprism Diffuser - 4000K - White 7900 56 141 2170 57 75
SGN7790MPNWWDD3 56W - Microprism Diffuser - 4000K - White 7900 56 141 2170 57 75
SGN7790MPNWWDM3 56W - Microprism Diffuser - 4000K - White 7900 56 141 2170 57 75
SGN7790MPNWWM3 56W - Microprism Diffuser - 4000K - White 7900 56 141 2170 57 75
