Order Code: SCD220NWM3

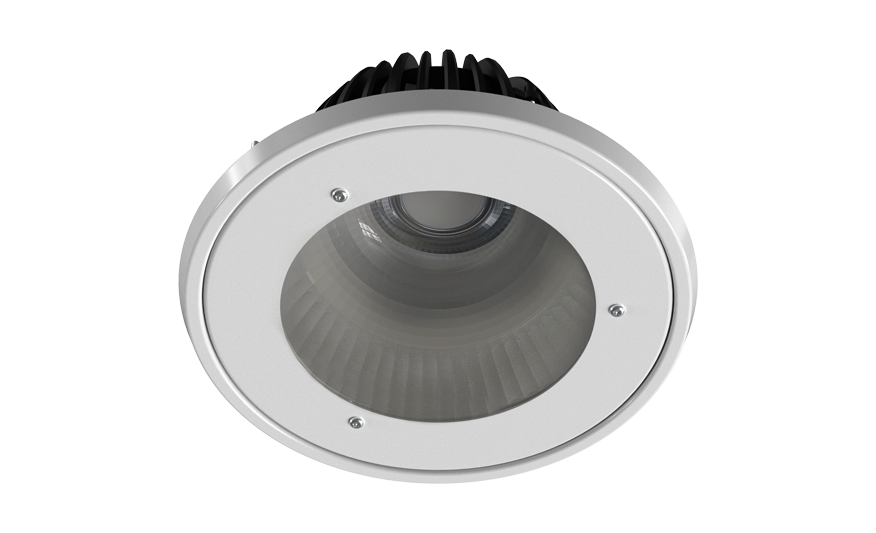

SECURE D Anti-ligature Recessed Downlight 24W - Fixed Output - Emergency - 4000K
![IP65 IP65](/assets/ordercodes/icons/ip65-tamlite-icon.png)
![IK14 IK14](/assets/ordercodes/icons/ik14-tamlite-icon.png)
![5 Years Warranty 5 Years Warranty](/assets/ordercodes/icons/5yrs-tamlite-icon.png)
![2 Years On-Site Warranty (T&C`s Apply) 2 Years On-Site Warranty (T&C`s Apply)](/assets/ordercodes/icons/onsite-warranty-tamlite-icon.png)
Technical Data
Luminaire Wattage (W) 24
Weight (kg) 2.10
Operating Temperature (°C) 5° to 25°
Lumens (lm) 2200
Efficacy (lm/W) 95
Beam Angle (FWHM°) 66
Rated Input Current (A) 0.11
Power Factor (pf) 0.95
Input Voltage Range (VAC) 220 - 240
Inrush Current Peak (A) 229
Surge Protection (kV) 1
Total Harmonic Distortion (THD) 4
Output LF Ripple 0.05
Conductor Size (mm) 0.5 to 2.5
Terminal Type 4-pole grip-wire
CCT (K) 4000
CRI 80
Macadam Elipses <3
Driver Current (mA) 550mA
Forward Voltage (V) 32.2 - 34.8
Emergency Lumen Operating 300
Emergency Wattage (W) 3
![](/assets/images/photometrics/secure-d-polarcurve.png)
![](/assets/images/line-drawing/secure-d---tech-drawing.png)
Features
- Secure fitting built to prevent vulnerable people from accidently or intentionally self-harming
- Suitable for low, medium and high risk secure services
- Recessed fix
- For use in hospital wards and corridors
- Vandal-resistant and tamper-proof
- CRI: Ra>80
- Independently tested and certified to meet the requirements set out in the Department of Health Environmental Design Guide 2011 for Adult Medium Secure Services
Construction
- Die-cast aluminium body finished in white (RAL 9010)
- 6mm Clear polycarbonate diffuser secured by Resistorx screws
- Integral driver
- Supplied in neutral white (4000K) LED
To Specify
SECURE D Anti-ligature Recessed Downlight 24W - Fixed Output - Emergency - 4000K as per Tamlite SECURE D range.
