Home > Products > NIMROD Range > NIMROD C O
Barnsley College Case Study

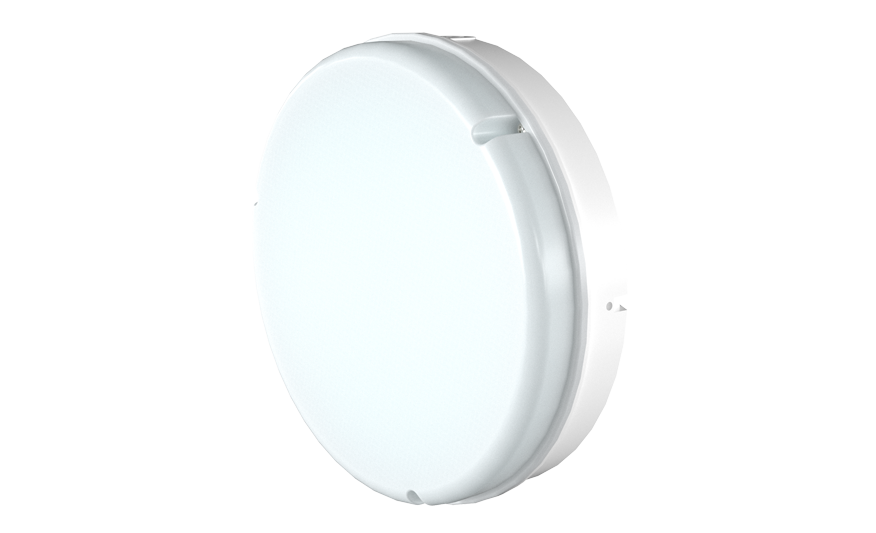

NIMROD C O

Circular Interior/Exterior Bulkhead with Opal Diffuser

  • Enhanced Energy Efficiency: Achieves up to 113 lm/W (lumens per watt) output
  • Lumen Output: Achieves up to 2,000 lumens
  • Colour Temperature: Available in Neutral White (4000K) or Warm White (3000K)
  • Operation: Standard or emergency variants available for flexible use and safety
  • Construction: Polycarbonate housing in White (RAL 9016) or Black (RAL 9005)
  • Ingress Protection: IP65 rated for dust and water resistance
  • Opal Diffuser: Soft, even light for general illumination
  • Gear Options: DALI-compatible with emergency options for smart control
  • Smart Integration: Compatible with Tamlite’s VISION lighting controls
IP65IK087 Years Warranty2 Years On-Site Warranty (T&C`s Apply)Vision OneVision ConnectVision Connect ProVision AirVision Air Pro
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Photometric LDT
Instruction leaflet
Polar Curve
Product Leaflet
Order Code Description lm W lm/W Dia(mm) D(mm) Folio
NIMAC200ONWB 15W - Opal diffuser - 4000K - Black 2000 15 113 312 82
NIMAC200ONWBA3 15W - Opal diffuser - 4000K - Black 2000 15 113 312 82
NIMAC200ONWBA3MS 15W - Opal diffuser - 4000K - Black 2000 15 113 312 82
NIMAC200ONWBD 15W - Opal diffuser - 4000K - Black 2000 15 113 312 82
NIMAC200ONWBD3 15W - Opal diffuser - 4000K - Black 2000 15 113 312 82
NIMAC200ONWBD3MS 15W - Opal diffuser - 4000K - Black 2000 15 113 312 82
NIMAC200ONWBDA3 15W - Opal diffuser - 4000K - Black 2000 15 113 312 82
NIMAC200ONWBDA3MS 15W - Opal diffuser - 4000K - Black 2000 15 113 312 82
NIMAC200ONWBDD3 15W - Opal diffuser - 4000K - Black 2000 15 113 312 82
NIMAC200ONWBDD3MS 15W - Opal diffuser - 4000K - Black 2000 15 113 312 82
NIMAC200ONWBDM3 15W - Opal diffuser - 4000K - Black 2000 15 113 312 82
NIMAC200ONWBDM3MS 15W - Opal diffuser - 4000K - Black 2000 15 113 312 82
NIMAC200ONWBDMS 15W - Opal diffuser - 4000K - Black 2000 15 113 312 82
NIMAC200ONWBM3 15W - Opal diffuser - 4000K - Black 2000 15 113 312 82
NIMAC200ONWBM3MS 15W - Opal diffuser - 4000K - Black 2000 15 113 312 82
NIMAC200ONWBMS 15W - Opal diffuser - 4000K - Black 2000 15 113 312 82
NIMAC200ONWW 15W - Opal diffuser - 4000K - White 2000 15 113 312 82
NIMAC200ONWWA3 15W - Opal diffuser - 4000K - White 2000 15 113 312 82
NIMAC200ONWWA3MS 15W - Opal diffuser - 4000K - White 2000 15 113 312 82
NIMAC200ONWWD 15W - Opal diffuser - 4000K - White 2000 15 113 312 82
NIMAC200ONWWD3 15W - Opal diffuser - 4000K - White 2000 15 113 312 82
NIMAC200ONWWD3MS 15W - Opal diffuser - 4000K - White 2000 15 113 312 82
NIMAC200ONWWDA3 15W - Opal diffuser - 4000K - White 2000 15 113 312 82
NIMAC200ONWWDA3MS 15W - Opal diffuser - 4000K - White 2000 15 113 312 82
NIMAC200ONWWDD3 15W - Opal diffuser - 4000K - White 2000 15 113 312 82
NIMAC200ONWWDD3MS 15W - Opal diffuser - 4000K - White 2000 15 113 312 82
NIMAC200ONWWDM3 15W - Opal diffuser - 4000K - White 2000 15 113 312 82
NIMAC200ONWWDM3MS 15W - Opal diffuser - 4000K - White 2000 15 113 312 82
NIMAC200ONWWDMS 15W - Opal diffuser - 4000K - White 2000 15 113 312 82
NIMAC200ONWWM3 15W - Opal diffuser - 4000K - White 2000 15 113 312 82
NIMAC200ONWWM3MS 15W - Opal diffuser - 4000K - White 2000 15 113 312 82
NIMAC200ONWWMS 15W - Opal diffuser - 4000K - White 2000 15 113 312 82
NIMAC200OWWB 15W - Opal diffuser - 3000K - Black 2000 15 113 310 83
NIMAC200OWWBA3 15W - Opal diffuser - 3000K - Black 2000 15 113 310 83
NIMAC200OWWBA3MS 15W - Opal diffuser - 3000K - Black 2000 15 113 310 83
NIMAC200OWWBD 15W - Opal diffuser - 3000K - Black 2000 15 113 310 83
NIMAC200OWWBD3 15W - Opal diffuser - 3000K - Black 2000 15 113 310 83
NIMAC200OWWBD3MS 15W - Opal diffuser - 3000K - Black 2000 15 113 310 83
NIMAC200OWWBDA3 15W - Opal diffuser - 3000K - Black 2000 15 113 310 83
NIMAC200OWWBDA3MS 15W - Opal diffuser - 3000K - Black 2000 15 113 310 83
NIMAC200OWWBDD3 15W - Opal diffuser - 3000K - Black 2000 15 113 310 83
NIMAC200OWWBDD3MS 15W - Opal diffuser - 3000K - Black 2000 15 113 310 83
NIMAC200OWWBDM3 15W - Opal diffuser - 3000K - Black 2000 15 113 310 83
NIMAC200OWWBDM3MS 15W - Opal diffuser - 3000K - Black 2000 15 113 310 83
NIMAC200OWWBDMS 15W - Opal diffuser - 3000K - Black 2000 15 113 310 83
NIMAC200OWWBM3 15W - Opal diffuser - 3000K - Black 2000 15 113 310 83
NIMAC200OWWBM3MS 15W - Opal diffuser - 3000K - Black 2000 15 113 310 83
NIMAC200OWWBMS 15W - Opal diffuser - 3000K - Black 2000 15 113 310 83
NIMAC200OWWW 15W - Opal diffuser - 3000K - White 2000 15 113 310 83
NIMAC200OWWWA3 15W - Opal diffuser - 3000K - White 2000 15 113 310 83
NIMAC200OWWWA3MS 15W - Opal diffuser - 3000K - White 2000 15 113 310 83
NIMAC200OWWWD 15W - Opal diffuser - 3000K - White 2000 15 113 310 83
NIMAC200OWWWD3 15W - Opal diffuser - 3000K - White 2000 15 113 310 83
NIMAC200OWWWD3MS 15W - Opal diffuser - 3000K - White 2000 15 113 310 83
NIMAC200OWWWDA3 15W - Opal diffuser - 3000K - White 2000 15 113 310 83
NIMAC200OWWWDA3MS 15W - Opal diffuser - 3000K - White 2000 15 113 310 83
NIMAC200OWWWDD3 15W - Opal diffuser - 3000K - White 2000 15 113 310 83
NIMAC200OWWWDD3MS 15W - Opal diffuser - 3000K - White 2000 15 113 310 83
NIMAC200OWWWDM3 15W - Opal diffuser - 3000K - White 2000 15 113 310 83
NIMAC200OWWWDM3MS 15W - Opal diffuser - 3000K - White 2000 15 113 310 83
NIMAC200OWWWDMS 15W - Opal diffuser - 3000K - White 2000 15 113 310 83
NIMAC200OWWWM3 15W - Opal diffuser - 3000K - White 2000 15 113 310 83
NIMAC200OWWWM3MS 15W - Opal diffuser - 3000K - White 2000 15 113 310 83
NIMAC200OWWWMS 15W - Opal diffuser - 3000K - White 2000 15 113 310 83
