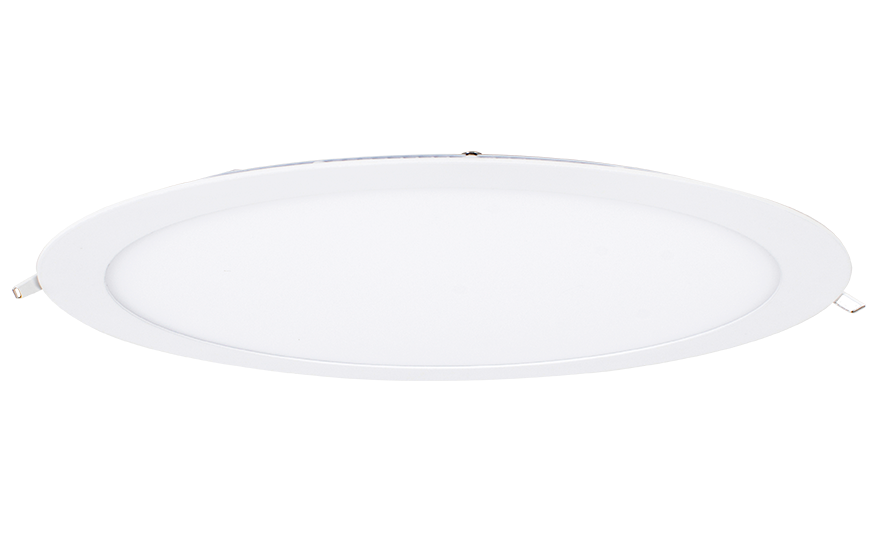

NIMBUS

Recessed LED Low Profile Downlight

Low profile recessed downlight suitable for corridors and toilets
Available in 4 outputs
Emergency option available
CRI: Ra>80
Die-cast aluminium body finished in white (RAL 9010)
Low glare Tp(b) rated opal PMMA diffuser
Remote driver
Supplied in neutral white (4000K) LED
Up to 114 lumens per Watt efficacy

Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Colour Temperature (CCTK)

Emergency

DALI

Product Leaflet

Instruction leaflet

Polar Curve

Photometric Data

Order Code	Description	lm	W	lm/W	Cut out	Dia(mm)	D(mm)
NMB80NW	10W - 4000K	800	10	80	107	120	12
NMB80NWA3	10W - 4000K	800	10	80	107	120	12
NMB80NWD	10W - 4000K	800	10	80	107	120	12
NMB80NWD3	10W - 4000K	800	10	80	107	120	12
NMB80NWDA3	10W - 4000K	800	10	80	107	120	12
NMB80NWDD3	10W - 4000K	800	10	80	107	120	12
NMB80NWDM3	10W - 4000K	800	10	80	107	120	12
NMB80NWM3	10W - 4000K	800	10	80	107	120	12
NMB80WW	10W - 3000K	800	10	80	107	120	12
NMB80WWA3	10W - 3000K	800	10	80	107	120	12
NMB80WWD	10W - 3000K	800	10	80	107	120	12
NMB80WWD3	10W - 3000K	800	10	80	107	120	12
NMB80WWDA3	10W - 3000K	800	10	80	107	120	12
NMB80WWDD3	10W - 3000K	800	10	80	107	120	12
NMB80WWDM3	10W - 3000K	800	10	80	107	120	12
NMB80WWM3	10W - 3000K	800	10	80	107	120	12
NMB120NW	12W - 4000K	1200	12	100	156	170	12
NMB120NWA3	12W - 4000K	1200	12	100	156	170	12
NMB120NWD	12W - 4000K	1200	12	100	156	170	12
NMB120NWD3	12W - 4000K	1200	12	100	156	170	12
NMB120NWDA3	12W - 4000K	1200	12	100	156	170	12
NMB120NWDD3	12W - 4000K	1200	12	100	156	170	12
NMB120NWDM3	12W - 4000K	1200	12	100	156	170	12
NMB120NWM3	12W - 4000K	1200	12	100	156	170	12
NMB120WW	12W - 3000K	1200	12	100	156	170	12
NMB120WWA3	12W - 3000K	1200	12	100	156	170	12
NMB120WWD	12W - 3000K	1200	12	100	156	170	12
NMB120WWD3	12W - 3000K	1200	12	100	156	170	12
NMB120WWDA3	12W - 3000K	1200	12	100	156	170	12
NMB120WWDD3	12W - 3000K	1200	12	100	156	170	12
NMB120WWDM3	12W - 3000K	1200	12	100	156	170	12
NMB120WWM3	12W - 3000K	1200	12	100	156	170	12
NMB180NW	18W - 4000K	1800	18	100	225	239	12
NMB180NWA3	18W - 4000K	1800	18	100	225	239	12
NMB180NWD	18W - 4000K	1800	18	100	225	239	12
NMB180NWD3	18W - 4000K	1800	18	100	225	239	12
NMB180NWDA3	18W - 4000K	1800	18	100	225	239	12
NMB180NWDD3	18W - 4000K	1800	18	100	225	239	12
NMB180NWDM3	18W - 4000K	1800	18	100	225	239	12
NMB180NWM3	18W - 4000K	1800	18	100	225	239	12
NMB180WW	18W - 3000K	1800	18	100	225	239	12
NMB180WWA3	18W - 3000K	1800	18	100	225	239	12
NMB180WWD	18W - 3000K	1800	18	100	225	239	12
NMB180WWD3	18W - 3000K	1800	18	100	225	239	12
NMB180WWDA3	18W - 3000K	1800	18	100	225	239	12
NMB180WWDD3	18W - 3000K	1800	18	100	225	239	12
NMB180WWDM3	18W - 3000K	1800	18	100	225	239	12
NMB180WWM3	18W - 3000K	1800	18	100	225	239	12
NMB250NW	22W - 4000K	2500	22	114	280	300	12
NMB250NWA3	22W - 4000K	2500	22	114	280	300	12
NMB250NWD	22W - 4000K	2500	22	114	280	300	12
NMB250NWD3	22W - 4000K	2500	22	114	280	300	12
NMB250NWDA3	22W - 4000K	2500	22	114	280	300	12
NMB250NWDD3	22W - 4000K	2500	22	114	280	300	12
NMB250NWDM3	22W - 4000K	2500	22	114	280	300	12
NMB250NWM3	22W - 4000K	2500	22	114	280	300	12
NMB250WW	22W - 3000K	2500	22	114	280	300	12
NMB250WWA3	22W - 3000K	2500	22	114	280	300	12
NMB250WWD	22W - 3000K	2500	22	114	280	300	12
NMB250WWD3	22W - 3000K	2500	22	114	280	300	12
NMB250WWDA3	22W - 3000K	2500	22	114	280	300	12
NMB250WWDD3	22W - 3000K	2500	22	114	280	300	12
NMB250WWDM3	22W - 3000K	2500	22	114	280	300	12
NMB250WWM3	22W - 3000K	2500	22	114	280	300	12
