MERIDIAN

Slimline circular LED bulkhead

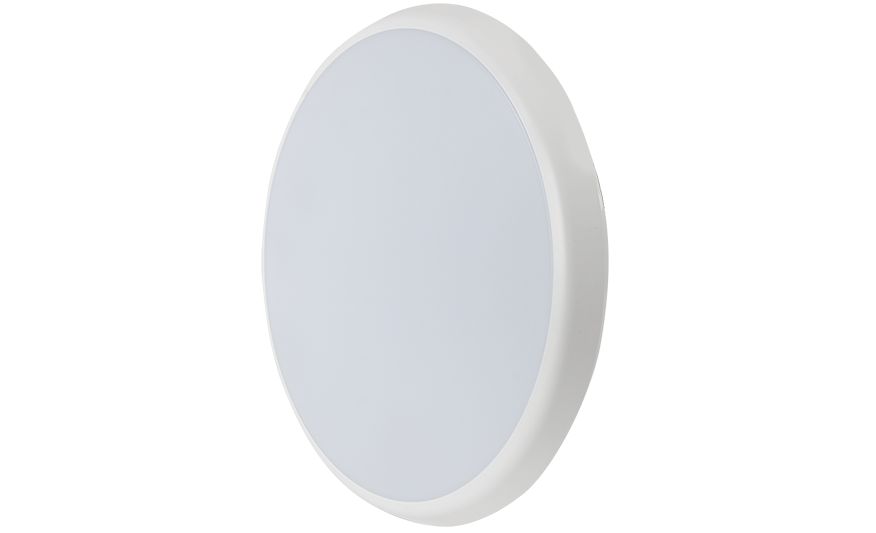

  • MERIDIAN circular LED bulkhead product photograph
  • MERIDIAN circular LED bulkhead product photograph
  • MERIDIAN circular LED bulkhead product photograph
  • MERIDIAN circular LED bulkhead product photograph
  • MERIDIAN circular LED bulkhead line drawing


Order code Description lm W lm/W kgc (mm)Dia.
MERC180NW18W - 4000K1800181001.1548300

CONTACT US


Product features
  • High output performance with class II rating
  • Integral emergency and motion sensor options
  • Trims sold separately, available in polished brass and polished chrome
  • CRI: Ra>80
  • Up to 100 lumens per Watt efficacy
  • 50,000 hours lifetime (L80/B10)

Construction
  • Polycarbonate body finished in white (RAL 9016)
  • Opal diffuser
  • Integral driver
  • Supplied as standard with neutral white (4000K) LED

To specify

Circular slimline LED bulkhead as per Tamlite Meridian


Installation notes

Surface fix via mounting bracket with 3 core termination block on rear side cable entry


Gear options

HFS - Microwave movement sensor

Emergency options

M3 - 3 hours integrated emergency
