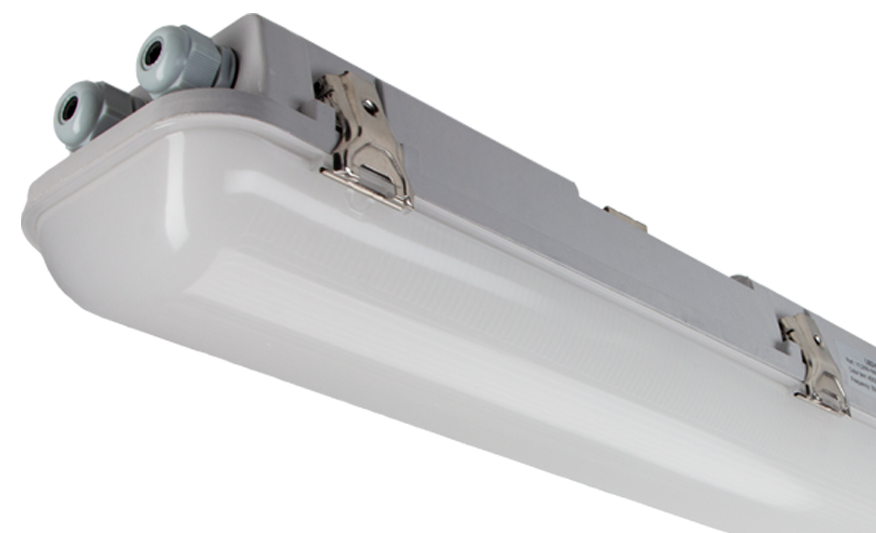

CYCLONE G

IP66 Weatherproof GRP Luminaire

  • TM66 Certified options available for specification
  • Suitable for food manufacturing and processing
  • Gear options including DALI and emergency available
  • PIR and microwave sensor options
  • Impact resistant construction
  • Moisture-proof, dust-resistant and chemical-resistant IP66 fixture
  • CRI: Ra>80
  • GRP body finished in grey (RAL 9006)
  • Glass Reinforced Plastic body with PMMA Opal diffuser
  • Opal PMMA diffuser
  • Integral driver, simplifying installation and reducing maintenance
  • Stainless steel fixing clips
  • Loop in/out cable entries
  • Supplied in neutral white (4000K) LED
  • Up to 159 lumens per Watt efficacy
Batten fit PIRMicrowave sensorIP667 Years Warranty2 Years On-Site Warranty (T&C`s Apply)
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Application table
Product Leaflet
Instruction leaflet
Polar Curve
Photometric Data
Order Code Description lm W lm/W L(mm) W(mm) D(mm)
CYG4350NW 22W - 4000K 3500 22 159 1200 120 103
CYG4350NWA3 22W - 4000K 3500 22 159 1200 120 103
CYG4350NWA3MS 22W - 4000K 3500 22 159 1200 120 103
CYG4350NWA3VB1 22W - 4000K 3500 22 159 1307 120 103
CYG4350NWA3VB2 22W - 4000K 3500 22 159 1307 120 103
CYG4350NWD 22W - 4000K 3500 22 159 1200 120 103
CYG4350NWD3 22W - 4000K 3500 22 159 1200 120 103
CYG4350NWD3MS 22W - 4000K 3500 22 159 1200 120 103
CYG4350NWD3VB1 22W - 4000K 3500 22 159 1307 120 103
CYG4350NWD3VB2 22W - 4000K 3500 22 159 1307 120 103
CYG4350NWDA3 22W - 4000K 3500 22 159 1200 120 103
CYG4350NWDA3MD 22W - 4000K 3500 22 159 1200 120 103
CYG4350NWDA3VB3 22W - 4000K 3500 22 159 1307 120 103
CYG4350NWDA3VS 22W - 4000K 3500 22 159 1200 120 103
CYG4350NWDA3VSB1 22W - 4000K 3500 22 159 1307 120 103
CYG4350NWDA3VSB3 22W - 4000K 3500 22 159 1307 120 103
CYG4350NWDA3VSM 22W - 4000K 3500 22 159 1200 120 103
CYG4350NWDD3 22W - 4000K 3500 22 159 1200 120 103
CYG4350NWDD3MD 22W - 4000K 3500 22 159 1200 120 103
CYG4350NWDD3VB3 22W - 4000K 3500 22 159 1307 120 103
CYG4350NWDD3VS 22W - 4000K 3500 22 159 1200 120 103
CYG4350NWDD3VSB1 22W - 4000K 3500 22 159 1307 120 103
CYG4350NWDD3VSB3 22W - 4000K 3500 22 159 1307 120 103
CYG4350NWDD3VSM 22W - 4000K 3500 22 159 1200 120 103
CYG4350NWDM3 22W - 4000K 3500 22 159 1200 120 103
CYG4350NWDM3MD 22W - 4000K 3500 22 159 1200 120 103
CYG4350NWDM3VB3 22W - 4000K 3500 22 159 1307 120 103
CYG4350NWDM3VS 22W - 4000K 3500 22 159 1200 120 103
CYG4350NWDM3VSB1 22W - 4000K 3500 22 159 1307 120 103
CYG4350NWDM3VSB3 22W - 4000K 3500 22 159 1307 120 103
CYG4350NWDM3VSM 22W - 4000K 3500 22 159 1200 120 103
CYG4350NWDMD 22W - 4000K 3500 22 159 1200 120 103
CYG4350NWDVB3 22W - 4000K 3500 22 159 1307 120 103
CYG4350NWDVS 22W - 4000K 3500 22 159 1200 120 103
CYG4350NWDVSB1 22W - 4000K 3500 22 159 1307 120 103
CYG4350NWDVSB3 22W - 4000K 3500 22 159 1307 120 103
CYG4350NWDVSM 22W - 4000K 3500 22 159 1200 120 103
CYG4350NWM3 22W - 4000K 3500 22 159 1200 120 103
CYG4350NWM3MS 22W - 4000K 3500 22 159 1200 120 103
CYG4350NWM3VB1 22W - 4000K 3500 22 159 1307 120 103
CYG4350NWM3VB2 22W - 4000K 3500 22 159 1307 120 103
CYG4350NWMS 22W - 4000K 3500 22 159 1200 120 103
CYG4350NWVB1 22W - 4000K 3500 22 159 1307 120 103
CYG4350NWVB2 22W - 4000K 3500 22 159 1307 120 103
CYG5450NW 29W - 4000K 4500 29 155 1500 120 103
CYG5450NWA3 29W - 4000K 4500 29 155 1500 120 103
CYG5450NWA3MS 29W - 4000K 4500 29 155 1500 120 103
CYG5450NWA3VB1 29W - 4000K 4500 29 155 1607 120 103
CYG5450NWA3VB2 29W - 4000K 4500 29 155 1607 120 103
CYG5450NWD 29W - 4000K 4500 29 155 1500 120 103
CYG5450NWD3 29W - 4000K 4500 29 155 1500 120 103
CYG5450NWD3MS 29W - 4000K 4500 29 155 1500 120 103
CYG5450NWD3VB1 29W - 4000K 4500 29 155 1607 120 103
CYG5450NWD3VB2 29W - 4000K 4500 29 155 1607 120 103
CYG5450NWDA3 29W - 4000K 4500 29 155 1500 120 103
CYG5450NWDD3 29W - 4000K 4500 29 155 1500 120 103
CYG5450NWDD3MD 29W - 4000K 4500 29 155 1500 120 103
CYG5450NWDD3VB3 29W - 4000K 4500 29 155 1607 120 103
CYG5450NWDD3VS 29W - 4000K 4500 29 155 1500 120 103
CYG5450NWDD3VSB1 29W - 4000K 4500 29 155 1607 120 103
CYG5450NWDD3VSB3 29W - 4000K 4500 29 155 1607 120 103
CYG5450NWDD3VSM 29W - 4000K 4500 29 155 1500 120 103
CYG5450NWDM3 29W - 4000K 4500 29 155 1500 120 103
CYG5450NWDM3MD 29W - 4000K 4500 29 155 1500 120 103
CYG5450NWDM3VB3 29W - 4000K 4500 29 155 1607 120 103
CYG5450NWDM3VS 29W - 4000K 4500 29 155 1500 120 103
CYG5450NWDM3VSB1 29W - 4000K 4500 29 155 1607 120 103
CYG5450NWDM3VSB3 29W - 4000K 4500 29 155 1607 120 103
CYG5450NWDM3VSM 29W - 4000K 4500 29 155 1500 120 103
CYG5450NWDMD 29W - 4000K 4500 29 155 1500 120 103
CYG5450NWDVB3 29W - 4000K 4500 29 155 1607 120 103
CYG5450NWDVS 29W - 4000K 4500 29 155 1500 120 103
CYG5450NWDVSB1 29W - 4000K 4500 29 155 1607 120 103
CYG5450NWDVSB3 29W - 4000K 4500 29 155 1607 120 103
CYG5450NWDVSM 29W - 4000K 4500 29 155 1500 120 103
CYG5450NWM3 29W - 4000K 4500 29 155 1500 120 103
CYG5450NWM3MS 29W - 4000K 4500 29 155 1500 120 103
CYG5450NWM3VB1 29W - 4000K 4500 29 155 1607 120 103
CYG5450NWM3VB2 29W - 4000K 4500 29 155 1607 120 103
CYG5450NWMS 29W - 4000K 4500 29 155 1500 120 103
CYG5450NWVB1 29W - 4000K 4500 29 155 1607 120 103
CYG5450NWVB2 29W - 4000K 4500 29 155 1607 120 103
CYG4690NW 45W - 4000K 6900 45 153 1200 120 103
CYG4690NWA3 45W - 4000K 6900 45 153 1200 120 103
CYG4690NWA3MS 45W - 4000K 6900 45 153 1200 120 103
CYG4690NWA3VB1 45W - 4000K 6900 45 153 1307 120 103
CYG4690NWA3VB2 45W - 4000K 6900 45 153 1307 120 103
CYG4690NWD 45W - 4000K 6900 45 153 1200 120 103
CYG4690NWD3 45W - 4000K 6900 45 153 1200 120 103
CYG4690NWD3MS 45W - 4000K 6900 45 153 1200 120 103
CYG4690NWD3VB1 45W - 4000K 6900 45 153 1307 120 103
CYG4690NWD3VB2 45W - 4000K 6900 45 153 1307 120 103
CYG4690NWDA3 45W - 4000K 6900 45 153 1200 120 103
CYG4690NWDA3MD 45W - 4000K 6900 45 153 1200 120 103
CYG4690NWDA3VB3 45W - 4000K 6900 45 153 1307 120 103
CYG4690NWDA3VS 45W - 4000K 6900 45 153 1200 120 103
CYG4690NWDA3VSB1 45W - 4000K 6900 45 153 1307 120 103
CYG4690NWDA3VSB3 45W - 4000K 6900 45 153 1307 120 103
CYG4690NWDA3VSM 45W - 4000K 6900 45 153 1200 120 103
CYG4690NWDD3 45W - 4000K 6900 45 153 1200 120 103
CYG4690NWDD3MD 45W - 4000K 6900 45 153 1200 120 103
CYG4690NWDD3VB3 45W - 4000K 6900 45 153 1307 120 103
CYG4690NWDD3VS 45W - 4000K 6900 45 153 1200 120 103
CYG4690NWDD3VSB1 45W - 4000K 6900 45 153 1307 120 103
CYG4690NWDD3VSB3 45W - 4000K 6900 45 153 1307 120 103
CYG4690NWDD3VSM 45W - 4000K 6900 45 153 1200 120 103
CYG4690NWDM3 45W - 4000K 6900 45 153 1200 120 103
CYG4690NWDM3MD 45W - 4000K 6900 45 153 1200 120 103
CYG4690NWDM3VB3 45W - 4000K 6900 45 153 1307 120 103
CYG4690NWDM3VS 45W - 4000K 6900 45 153 1200 120 103
CYG4690NWDM3VSB1 45W - 4000K 6900 45 153 1307 120 103
CYG4690NWDM3VSB3 45W - 4000K 6900 45 153 1307 120 103
CYG4690NWDM3VSM 45W - 4000K 6900 45 153 1200 120 103
CYG4690NWDMD 45W - 4000K 6900 45 153 1200 120 103
CYG4690NWDVB3 45W - 4000K 6900 45 153 1307 120 103
CYG4690NWDVS 45W - 4000K 6900 45 153 1200 120 103
CYG4690NWDVSB1 45W - 4000K 6900 45 153 1307 120 103
CYG4690NWDVSB3 45W - 4000K 6900 45 153 1307 120 103
CYG4690NWDVSM 45W - 4000K 6900 45 153 1200 120 103
CYG4690NWM3 45W - 4000K 6900 45 153 1200 120 103
CYG4690NWM3MS 45W - 4000K 6900 45 153 1200 120 103
CYG4690NWM3VB1 45W - 4000K 6900 45 153 1307 120 103
CYG4690NWM3VB2 45W - 4000K 6900 45 153 1307 120 103
CYG4690NWMS 45W - 4000K 6900 45 153 1200 120 103
CYG4690NWVB1 45W - 4000K 6900 45 153 1307 120 103
CYG4690NWVB2 45W - 4000K 6900 45 153 1307 120 103
CYG5700NW 45W - 4000K 7000 45 156 1500 120 103
CYG5700NWA3 45W - 4000K 7000 45 156 1500 120 103
CYG5700NWA3MS 45W - 4000K 7000 45 156 1500 120 103
CYG5700NWA3VB1 45W - 4000K 7000 45 156 1607 120 103
CYG5700NWA3VB2 45W - 4000K 7000 45 156 1607 120 103
CYG5700NWD 45W - 4000K 7000 45 156 1500 120 103
CYG5700NWD3 45W - 4000K 7000 45 156 1500 120 103
CYG5700NWD3MS 45W - 4000K 7000 45 156 1500 120 103
CYG5700NWD3VB1 45W - 4000K 7000 45 156 1607 120 103
CYG5700NWD3VB2 45W - 4000K 7000 45 156 1607 120 103
CYG5700NWDA3 45W - 4000K 7000 45 156 1500 120 103
CYG5700NWDA3MD 45W - 4000K 7000 45 156 1500 120 103
CYG5700NWDA3VB3 45W - 4000K 7000 45 156 1607 120 103
CYG5700NWDA3VS 45W - 4000K 7000 45 156 1500 120 103
CYG5700NWDA3VSB1 45W - 4000K 7000 45 156 1607 120 103
CYG5700NWDA3VSB3 45W - 4000K 7000 45 156 1607 120 103
CYG5700NWDA3VSM 45W - 4000K 7000 45 156 1500 120 103
CYG5700NWDD3 45W - 4000K 7000 45 156 1500 120 103
CYG5700NWDD3MD 45W - 4000K 7000 45 156 1500 120 103
CYG5700NWDD3VB3 45W - 4000K 7000 45 156 1607 120 103
CYG5700NWDD3VS 45W - 4000K 7000 45 156 1500 120 103
CYG5700NWDD3VSB1 45W - 4000K 7000 45 156 1607 120 103
CYG5700NWDD3VSB3 45W - 4000K 7000 45 156 1607 120 103
CYG5700NWDD3VSM 45W - 4000K 7000 45 156 1500 120 103
CYG5700NWDM3 45W - 4000K 7000 45 156 1500 120 103
CYG5700NWDM3MD 45W - 4000K 7000 45 156 1500 120 103
CYG5700NWDM3VB3 45W - 4000K 7000 45 156 1607 120 103
CYG5700NWDM3VS 45W - 4000K 7000 45 156 1500 120 103
CYG5700NWDM3VSB1 45W - 4000K 7000 45 156 1607 120 103
CYG5700NWDM3VSB3 45W - 4000K 7000 45 156 1607 120 103
CYG5700NWDM3VSM 45W - 4000K 7000 45 156 1500 120 103
CYG5700NWDMD 45W - 4000K 7000 45 156 1500 120 103
CYG5700NWDVB3 45W - 4000K 7000 45 156 1607 120 103
CYG5700NWDVS 45W - 4000K 7000 45 156 1500 120 103
CYG5700NWDVSB1 45W - 4000K 7000 45 156 1607 120 103
CYG5700NWDVSB3 45W - 4000K 7000 45 156 1607 120 103
CYG5700NWDVSM 45W - 4000K 7000 45 156 1500 120 103
CYG5700NWM3 45W - 4000K 7000 45 156 1500 120 103
CYG5700NWM3MS 45W - 4000K 7000 45 156 1500 120 103
CYG5700NWM3VB1 45W - 4000K 7000 45 156 1607 120 103
CYG5700NWM3VB2 45W - 4000K 7000 45 156 1607 120 103
CYG5700NWMS 45W - 4000K 7000 45 156 1500 120 103
CYG5700NWVB1 45W - 4000K 7000 45 156 1607 120 103
CYG5700NWVB2 45W - 4000K 7000 45 156 1607 120 103
CYG5980NW 63W - 4000K 9800 63 156 1500 120 103
CYG5980NWA3 63W - 4000K 9800 63 156 1500 120 103
CYG5980NWA3MS 63W - 4000K 9800 63 156 1500 120 103
CYG5980NWA3VB1 63W - 4000K 9800 63 156 1607 120 103
CYG5980NWA3VB2 63W - 4000K 9800 63 156 1607 120 103
CYG5980NWD 63W - 4000K 9800 63 156 1500 120 103
CYG5980NWD3 63W - 4000K 9800 63 156 1500 120 103
CYG5980NWD3MS 63W - 4000K 9800 63 156 1500 120 103
CYG5980NWD3VB1 63W - 4000K 9800 63 156 1607 120 103
CYG5980NWD3VB2 63W - 4000K 9800 63 156 1607 120 103
CYG5980NWDA3 63W - 4000K 9800 63 156 1500 120 103
CYG5980NWDA3MD 63W - 4000K 9800 63 156 1500 120 103
CYG5980NWDA3VB3 63W - 4000K 9800 63 156 1607 120 103
CYG5980NWDA3VS 63W - 4000K 9800 63 156 1500 120 103
CYG5980NWDA3VSB1 63W - 4000K 9800 63 156 1607 120 103
CYG5980NWDA3VSB3 63W - 4000K 9800 63 156 1607 120 103
CYG5980NWDA3VSM 63W - 4000K 9800 63 156 1500 120 103
CYG5980NWDD3 63W - 4000K 9800 63 156 1500 120 103
CYG5980NWDD3MD 63W - 4000K 9800 63 156 1500 120 103
CYG5980NWDD3VB3 63W - 4000K 9800 63 156 1607 120 103
CYG5980NWDD3VS 63W - 4000K 9800 63 156 1500 120 103
CYG5980NWDD3VSB1 63W - 4000K 9800 63 156 1607 120 103
CYG5980NWDD3VSB3 63W - 4000K 9800 63 156 1607 120 103
CYG5980NWDD3VSM 63W - 4000K 9800 63 156 1500 120 103
CYG5980NWDM3 63W - 4000K 9800 63 156 1500 120 103
CYG5980NWDM3MD 63W - 4000K 9800 63 156 1500 120 103
CYG5980NWDM3VB3 63W - 4000K 9800 63 156 1607 120 103
CYG5980NWDM3VS 63W - 4000K 9800 63 156 1500 120 103
CYG5980NWDM3VSB1 63W - 4000K 9800 63 156 1607 120 103
CYG5980NWDM3VSB3 63W - 4000K 9800 63 156 1607 120 103
CYG5980NWDM3VSM 63W - 4000K 9800 63 156 1500 120 103
CYG5980NWDMD 63W - 4000K 9800 63 156 1500 120 103
CYG5980NWDVB3 63W - 4000K 9800 63 156 1607 120 103
CYG5980NWDVS 63W - 4000K 9800 63 156 1500 120 103
CYG5980NWDVSB1 63W - 4000K 9800 63 156 1607 120 103
CYG5980NWDVSB3 63W - 4000K 9800 63 156 1607 120 103
CYG5980NWDVSM 63W - 4000K 9800 63 156 1500 120 103
CYG5980NWM3 63W - 4000K 9800 63 156 1500 120 103
CYG5980NWM3MS 63W - 4000K 9800 63 156 1500 120 103
CYG5980NWM3VB1 63W - 4000K 9800 63 156 1607 120 103
CYG5980NWM3VB2 63W - 4000K 9800 63 156 1607 120 103
CYG5980NWMS 63W - 4000K 9800 63 156 1500 120 103
CYG5980NWVB1 63W - 4000K 9800 63 156 1607 120 103
CYG5980NWVB2 63W - 4000K 9800 63 156 1607 120 103

Our Commitment to TM66

Our commitment to excellence was recognised at the Electrical Industry Awards, with a win in the Project of the Year – Lighting category.

Dixons Carphone
Urban
Dixons Carphone
