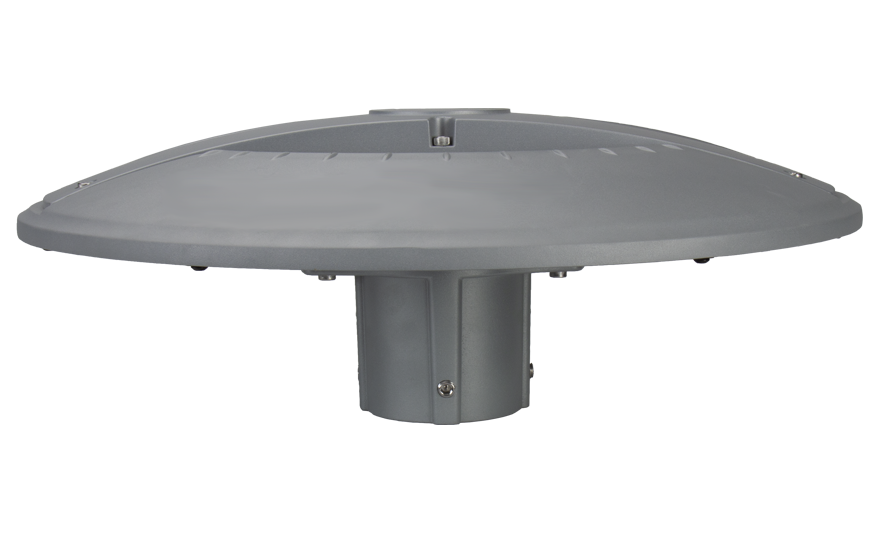

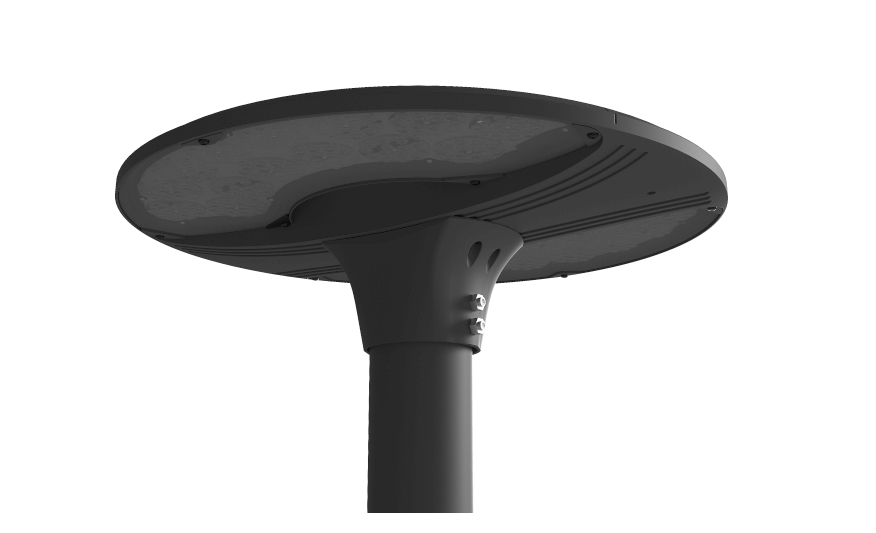

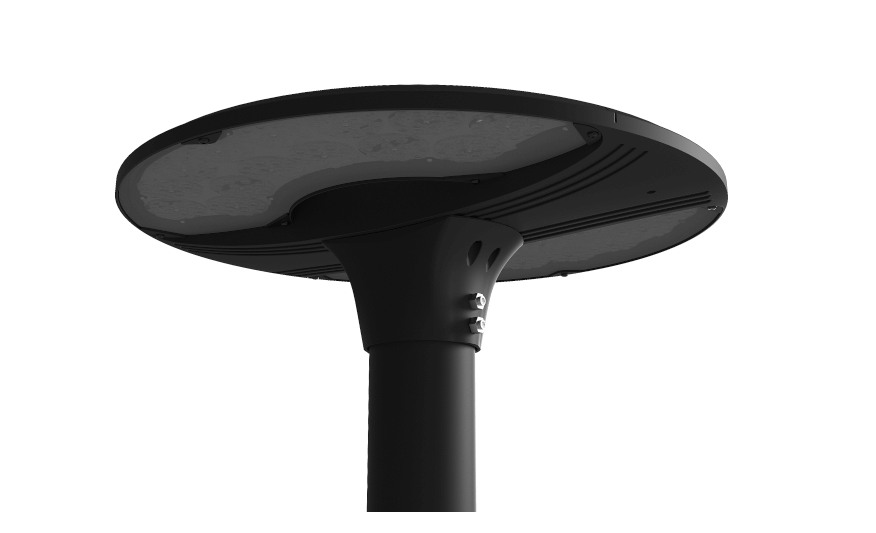

CITY PTL
Large Modern Post Top Lantern with T5 360° Area Optic
- Supplied with T5 360° area optic
- Suitable for exterior building and feature lighting
- TM66 Certified options available for specification
- Available in wide range of outputs, up to 16,700 lumens
- Modern, stylish post top lantern for city beautification projects

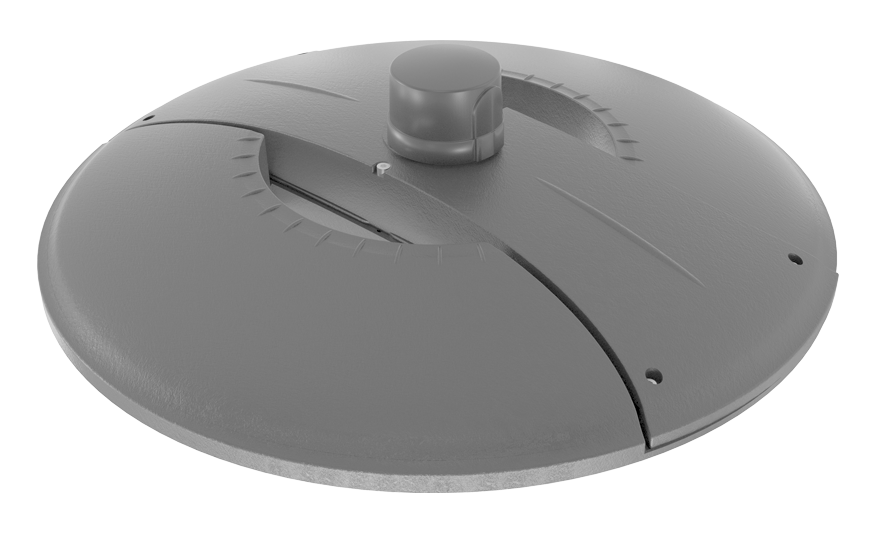

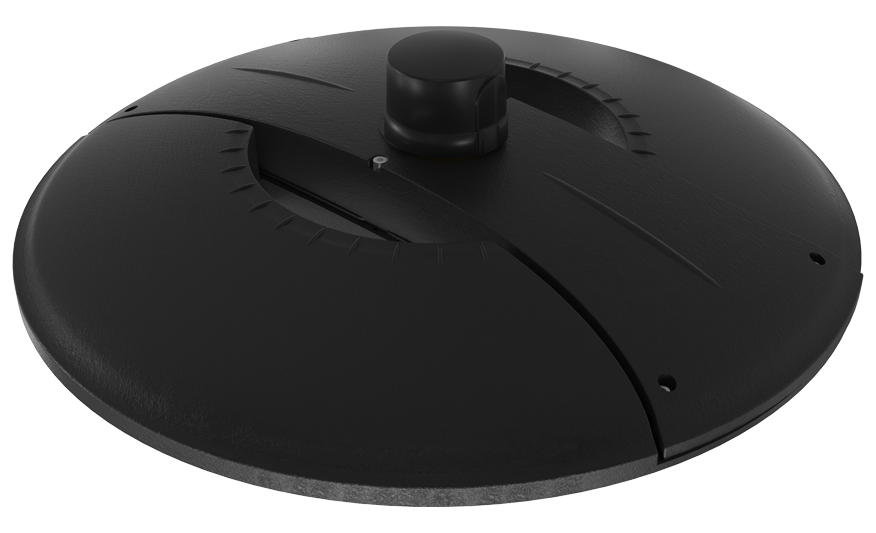

- Photocell option available
- Polycarbonate micro optic with glass cover
- Dark Sky Approvals on versions with 3000k and DALI options
- CRI: Ra>80
- Die-cast aluminium body finished in grey (RAL 9006) or black (RAL 9005)
- Supplied in neutral white (4000K) LED
- Up to 147 lumens per Watt efficacy
Product Filter
If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.
| Order Code | Description | lm | W | lm/W | Dia(mm) | H(mm) |
|---|---|---|---|---|---|---|
| CPTL2200T5NWB | 150W - 360° Area Optic - 4000K - Black | 22000 | 150 | 147 | 520 | 180 |
| CPTL2200T5NWBD | 150W - 360° Area Optic - 4000K - Black | 22000 | 150 | 147 | 520 | 180 |
| CPTL2200T5NWBDPC | 150W - 360° Area Optic - 4000K - Black | 22000 | 150 | 147 | 520 | 235 |
| CPTL2200T5NWBPC | 150W - 360° Area Optic - 4000K - Black | 22000 | 150 | 147 | 520 | 235 |
| CPTL2200T5NWG | 150W - 360° Area Optic - 4000K - Grey | 22000 | 150 | 147 | 520 | 180 |
| CPTL2200T5NWGD | 150W - 360° Area Optic - 4000K - Grey | 22000 | 150 | 147 | 520 | 180 |
| CPTL2200T5NWGDPC | 150W - 360° Area Optic - 4000K - Grey | 22000 | 150 | 147 | 520 | 235 |
| CPTL2200T5NWGPC | 150W - 360° Area Optic - 4000K - Grey | 22000 | 150 | 147 | 520 | 235 |
| CPTL2200T5WWB | 150W - 360° Area Optic - 3000K - Black | 22000 | 150 | 147 | 520 | 180 |
| CPTL2200T5WWBD | 150W - 360° Area Optic - 3000K - Black | 22000 | 150 | 147 | 520 | 180 |
| CPTL2200T5WWBDPC | 150W - 360° Area Optic - 3000K - Black | 22000 | 150 | 147 | 520 | 235 |
| CPTL2200T5WWBPC | 150W - 360° Area Optic - 3000K - Black | 22000 | 150 | 147 | 520 | 235 |
| CPTL2200T5WWG | 150W - 360° Area Optic - 3000K - Grey | 22000 | 150 | 147 | 520 | 180 |
| CPTL2200T5WWGD | 150W - 360° Area Optic - 3000K - Grey | 22000 | 150 | 147 | 520 | 180 |
| CPTL2200T5WWGDPC | 150W - 360° Area Optic - 3000K - Grey | 22000 | 150 | 147 | 520 | 235 |
| CPTL2200T5WWGPC | 150W - 360° Area Optic - 3000K - Grey | 22000 | 150 | 147 | 520 | 235 |
| CPTL3200T5NWB | 240W - 360° Area Optic - 4000K - Black | 32000 | 240 | 133 | 520 | 180 |
| CPTL3200T5NWBD | 240W - 360° Area Optic - 4000K - Black | 32000 | 240 | 133 | 520 | 180 |
| CPTL3200T5NWBDPC | 240W - 360° Area Optic - 4000K - Black | 32000 | 240 | 133 | 520 | 235 |
| CPTL3200T5NWBPC | 240W - 360° Area Optic - 4000K - Black | 32000 | 240 | 133 | 520 | 235 |
| CPTL3200T5NWG | 240W - 360° Area Optic - 4000K - Grey | 32000 | 240 | 133 | 520 | 180 |
| CPTL3200T5NWGD | 240W - 360° Area Optic - 4000K - Grey | 32000 | 240 | 133 | 520 | 180 |
| CPTL3200T5NWGDPC | 240W - 360° Area Optic - 4000K - Grey | 32000 | 240 | 133 | 520 | 235 |
| CPTL3200T5NWGPC | 240W - 360° Area Optic - 4000K - Grey | 32000 | 240 | 133 | 520 | 235 |
| CPTL3200T5WWB | 240W - 360° Area Optic - 3000K - Black | 32000 | 240 | 133 | 520 | 180 |
| CPTL3200T5WWBD | 240W - 360° Area Optic - 3000K - Black | 32000 | 240 | 133 | 520 | 180 |
| CPTL3200T5WWBDPC | 240W - 360° Area Optic - 3000K - Black | 32000 | 240 | 133 | 520 | 235 |
| CPTL3200T5WWBPC | 240W - 360° Area Optic - 3000K - Black | 32000 | 240 | 133 | 520 | 235 |
| CPTL3200T5WWG | 240W - 360° Area Optic - 3000K - Grey | 32000 | 240 | 133 | 520 | 180 |
| CPTL3200T5WWGD | 240W - 360° Area Optic - 3000K - Grey | 32000 | 240 | 133 | 520 | 180 |
| CPTL3200T5WWGDPC | 240W - 360° Area Optic - 3000K - Grey | 32000 | 240 | 133 | 520 | 235 |
| CPTL3200T5WWGPC | 240W - 360° Area Optic - 3000K - Grey | 32000 | 240 | 133 | 520 | 235 |
| CPTL4000T5NWB | 300W - 360° Area Optic - 4000K - Black | 40000 | 300 | 133 | 520 | 180 |
| CPTL4000T5NWBD | 300W - 360° Area Optic - 4000K - Black | 40000 | 300 | 133 | 520 | 180 |
| CPTL4000T5NWBDPC | 300W - 360° Area Optic - 4000K - Black | 40000 | 300 | 133 | 520 | 235 |
| CPTL4000T5NWBPC | 300W - 360° Area Optic - 4000K - Black | 40000 | 300 | 133 | 520 | 235 |
| CPTL4000T5NWG | 300W - 360° Area Optic - 4000K - Grey | 40000 | 300 | 133 | 520 | 180 |
| CPTL4000T5NWGD | 300W - 360° Area Optic - 4000K - Grey | 40000 | 300 | 133 | 520 | 180 |
| CPTL4000T5NWGDPC | 300W - 360° Area Optic - 4000K - Grey | 40000 | 300 | 133 | 520 | 235 |
| CPTL4000T5NWGPC | 300W - 360° Area Optic - 4000K - Grey | 40000 | 300 | 133 | 520 | 235 |
| CPTL4000T5WWB | 300W - 360° Area Optic - 3000K - Black | 40000 | 300 | 133 | 520 | 180 |
| CPTL4000T5WWBD | 300W - 360° Area Optic - 3000K - Black | 40000 | 300 | 133 | 520 | 180 |
| CPTL4000T5WWBDPC | 300W - 360° Area Optic - 3000K - Black | 40000 | 300 | 133 | 520 | 235 |
| CPTL4000T5WWBPC | 300W - 360° Area Optic - 3000K - Black | 40000 | 300 | 133 | 520 | 235 |
| CPTL4000T5WWG | 300W - 360° Area Optic - 3000K - Grey | 40000 | 300 | 133 | 520 | 180 |
| CPTL4000T5WWGD | 300W - 360° Area Optic - 3000K - Grey | 40000 | 300 | 133 | 520 | 180 |
| CPTL4000T5WWGDPC | 300W - 360° Area Optic - 3000K - Grey | 40000 | 300 | 133 | 520 | 235 |
| CPTL4000T5WWGPC | 300W - 360° Area Optic - 3000K - Grey | 40000 | 300 | 133 | 520 | 235 |
