THREAD

Tubular Pendant

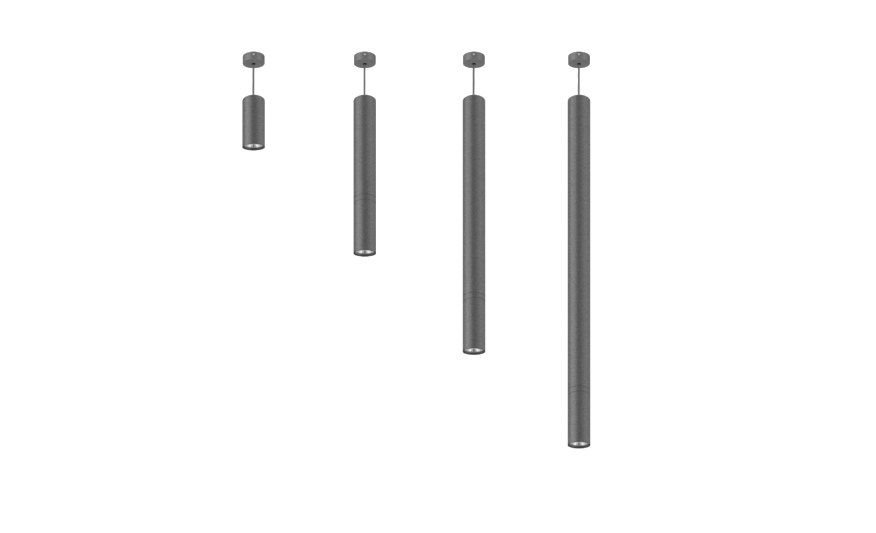

  • Available in 4 sizes and 2 outputs
  • Architectural tubular pendant
  • DALI dimming control gear as standard
  • CRI: Ra>80
  • Extruded aluminium body finished in white (RAL 9016), grey (RAL 9006) or black (RAL 9005)
  • Integral driver simplifying installation
  • Available in warm white (3000K) or neutral white (4000K)
5 Years Warranty2 Years On-Site Warranty (T&C`s Apply)Vision Connect
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Product Leaflet
Instruction leaflet
Polar Curve
Photometric Data
Order Code Description lm lm/W Dia(mm) H(mm) Folio
THL150NWBD 15W - 4000K - Black 1500 100 80 1000
THL150NWGD 15W - 4000K - Grey 1500 100 80 1000
THL150NWWD 15W - 4000K - White 1500 100 80 1000
THL150WWBD 15W - 3000K - Black 1500 100 80 1000
THL150WWGD 15W - 3000K - Grey 1500 100 80 1000
THL150WWWD 15W - 3000K - White 1500 100 80 1000
THM150NWBD 15W - 4000K - Black 1500 100 80 600
THM150NWGD 15W - 4000K - Grey 1500 100 80 600
THM150NWWD 15W - 4000K - White 1500 100 80 600
THM150WWBD 15W - 3000K - Black 1500 100 80 600
THM150WWGD 15W - 3000K - Grey 1500 100 80 600
THM150WWWD 15W - 3000K - White 1500 100 80 600
THS150NWBD 15W - 4000K - Black 1500 100 80 200
THS150NWGD 15W - 4000K - Grey 1500 100 80 200
THS150NWWD 15W - 4000K - White 1500 100 80 200
THS150WWBD 15W - 3000K - Black 1500 100 80 200
THS150WWGD 15W - 3000K - Grey 1500 100 80 200
THS150WWWD 15W - 3000K - White 1500 100 80 200
THX150NWBD 15W - 4000K - Black 1500 100 80 1400
THX150NWGD 15W - 4000K - Grey 1500 100 80 1400
THX150NWWD 15W - 4000K - White 1500 100 80 1400
THX150WWBD 15W - 3000K - Black 1500 100 80 1400
THX150WWGD 15W - 3000K - Grey 1500 100 80 1400
THX150WWWD 15W - 3000K - White 1500 100 80 1400
THL260NWBD 29W - 4000K - Black 2600 90 80 1000
THL260NWGD 29W - 4000K - Grey 2600 90 80 1000
THL260NWWD 29W - 4000K - White 2600 90 80 1000
THL260WWBD 29W - 3000K - Black 2600 90 80 1000
THL260WWGD 29W - 3000K - Grey 2600 90 80 1000
THL260WWWD 29W - 3000K - White 2600 90 80 1000
THM260NWBD 29W - 4000K - Black 2600 90 80 600
THM260NWGD 29W - 4000K - Grey 2600 90 80 600
THM260NWWD 29W - 4000K - White 2600 90 80 600
THM260WWBD 29W - 3000K - Black 2600 90 80 600
THM260WWGD 29W - 3000K - Grey 2600 90 80 600
THM260WWWD 29W - 3000K - White 2600 90 80 600
THS260NWBD 29W - 4000K - Black 2600 90 80 200
THS260NWGD 29W - 4000K - Grey 2600 90 80 200
THS260NWWD 29W - 4000K - White 2600 90 80 200
THS260WWBD 29W - 3000K - Black 2600 90 80 200
THS260WWGD 29W - 3000K - Grey 2600 90 80 200
THS260WWWD 29W - 3000K - White 2600 90 80 200
THX260NWBD 29W - 4000K - Black 2600 90 80 1400
THX260NWGD 29W - 4000K - Grey 2600 90 80 1400
THX260NWWD 29W - 4000K - White 2600 90 80 1400
THX260WWBD 29W - 3000K - Black 2600 90 80 1400
THX260WWGD 29W - 3000K - Grey 2600 90 80 1400
THX260WWWD 29W - 3000K - White 2600 90 80 1400
