Wired via rear cable entry and wired to internal terminal block, suspended via 2-point wire suspension (to be ordered separately)
Order Code: SGN4400PONWWDM3

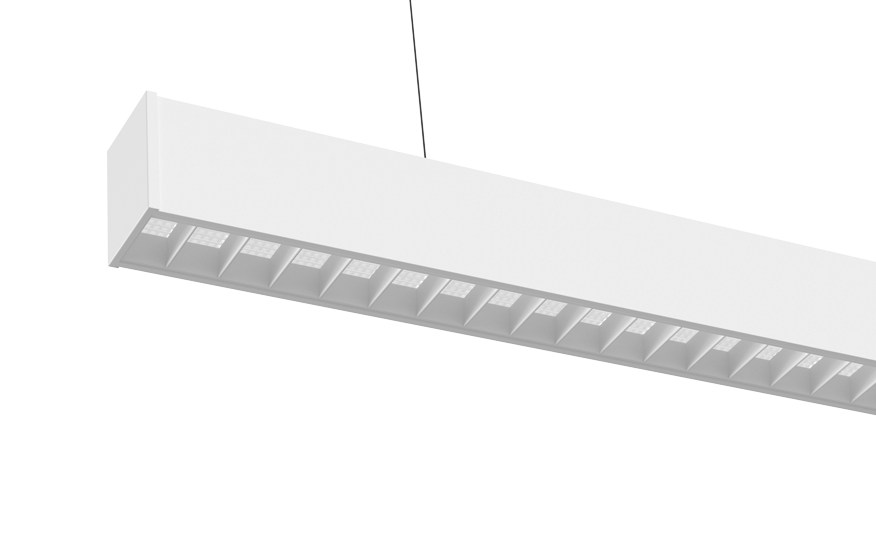

SIGNUM CELL Linear Surface Module 40W - Pod Optic - Dimmable DALI - Emergency - 4000K - White
![7 Years Warranty 7 Years Warranty](/assets/ordercodes/icons/7yrs-tamlite-icon.png)
![2 Years On-Site Warranty (T&C`s Apply) 2 Years On-Site Warranty (T&C`s Apply)](/assets/ordercodes/icons/onsite-warranty-tamlite-icon.png)
Technical Data
Luminaire Wattage (W) 40
Weight (kg) 3.52
Operating Temperature (°C) 5° to 25°
Lumens (lm) 4000
Efficacy (lm/W) 100
Beam Angle (FWHM°) 73
L80 Lifetime (HRS) 72000
L70 Lifetime (HRS) 72000
Rated Input Current (A) 0.18
Power Factor (pf) 0.97
Input Voltage Range (VAC) 220 - 240
Inrush Current Peak (A) 174
Surge Protection (kV) 1
Total Harmonic Distortion (THD) 9
Output LF Ripple 2
Conductor Size (mm) 0.5 to 2.5
Terminal Type SLK series 4-pole grip-wire + 2-pole grip-wire
CCT (K) 4000
CRI 80
Macadam Elipses <3
Driver Current (mA) 275
Forward Voltage (V) 103.7
Driver Lifetime (HRS) 100000
Emergency Lumen Operating 330
![](/assets/images/photometrics/signum-cell-photometric.png)
![](/assets/images/line-drawing/signum-cell-4ft-line-drawing.png)
Features
- Tamlite I-Tech multi-cell optic provides excellent glare control
- Suspended direct/indirect modular with multi-cell optic
- Downward and upward light output (60/40)
- CRI: Ra>80
Installation Notes
Construction
- Aluminium multi-cell optic
- Cable entry via rear cable access and wired to internal terminal block
- Supplied in neutral white (4000K) LED
To Specify
SIGNUM CELL Linear Surface Module 40W - Pod Optic - Dimmable DALI - Emergency - 4000K - White as per Tamlite SIGNUM CELL range.
