Order Code: SGN4400PONWBDA3

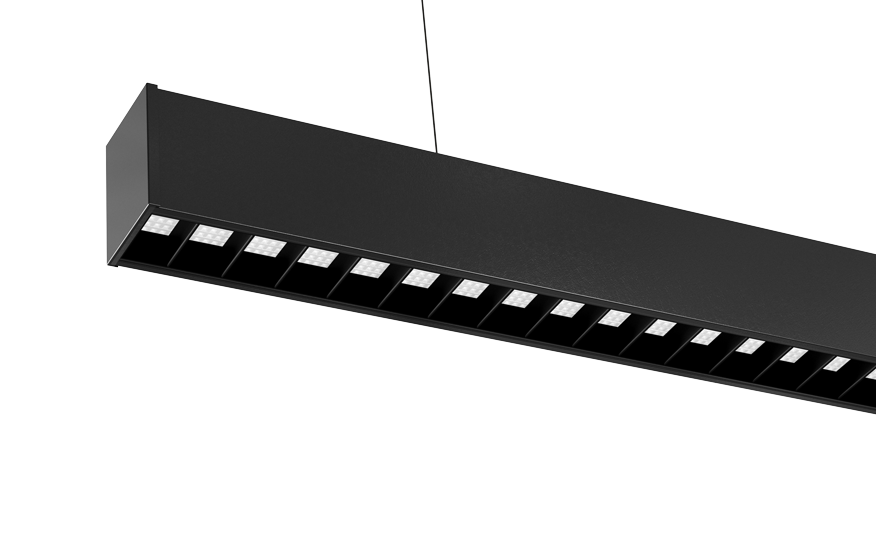

SIGNUM CELL Linear Surface Module 40W - Pod Optic - Dimmable DALI - Emergency Self-test - 4000K - Black

7 Years Warranty2 Years On-Site Warranty (T&C`s Apply)
Technical Data
General

Luminaire Wattage (W) 40

Weight (kg) 3.42

Operating Temperature (°C) 5 to 25

Light Output

Lumens (lm) 4000

Efficacy (lm/W) 100

Beam Angle (FWHM°) 73

Life

L80 Lifetime (HRS) 72000

L70 Lifetime (HRS) 72000

Electrical

Rated Input Current (A) 0.18

Power Factor (pf) 0.97

Input Voltage Range (VAC) 220 - 240

Inrush Current Peak (A) 23

Surge Protection (kV) 1

Total Harmonic Distortion (THD) 9

Output LF Ripple 2

Conductor Size (mm) 0.5 to 2.5

Terminal Type SLK series 4-pole grip-wire + 2-pole grip-wire

LED

CCT (K) 4000

CRI 80

Macadam Elipses <3

Driver

Driver Current (mA) 350

Forward Voltage (V) 103.7

Driver Lifetime (HRS) 100000

Emergency

Emergency Lumen Operating 330

Features
  • Tamlite I-Tech multi-cell optic provides excellent glare control
  • Suspended direct/indirect modular with multi-cell optic
  • Downward and upward light output (60/40)
  • CRI: Ra>80
Installation Notes

Wired via rear cable entry and wired to internal terminal block, suspended via 2-point wire suspension (to be ordered separately)

Construction
  • Aluminium multi-cell optic
  • Cable entry via rear cable access and wired to internal terminal block
  • Supplied in neutral white (4000K) LED
To Specify

SIGNUM CELL Linear Surface Module 40W - Pod Optic - Dimmable DALI - Emergency Self-test - 4000K - Black as per Tamlite SIGNUM CELL range.
