Order Code: SCS5330NWM3

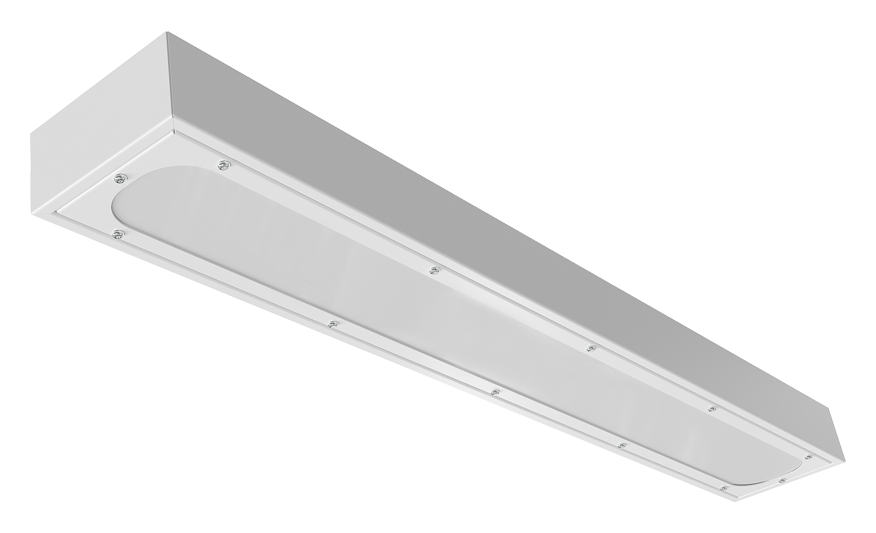

SECURE S Anti-ligature Surface Module 31W - Fixed Output - Emergency - 4000K
Technical Data
Luminaire Wattage (W) 31
Weight (kg) 9.60
Operating Temperature (°C) 5 to 25
Lumens (lm) 3300
Efficacy (lm/W) 106
Beam Angle (FWHM°) 108
L90 Lifetime (HRS) 52000
L80 Lifetime (HRS) 72000
L70 Lifetime (HRS) 72000
Rated Input Current (A) 0.13
Power Factor (pf) 0.97
Input Voltage Range (VAC) 220 - 240
Inrush Current Peak (A) 64
Surge Protection (kV) 1
Total Harmonic Distortion (THD) 10
Output LF Ripple 5
Conductor Size (mm) 0.5 to 2.5
Terminal Type 4-pole grip-wire
CCT (K) 4000
CRI 80
Macadam Elipses <3
Driver Current (mA) 125
Forward Voltage (V) 103.4 - 112.1
Emergency Lumen Operating 262
Emergency Wattage (W) 3
Features
- Secure fitting built to prevent vulnerable people from accidently or intentionally self-harming
- Suitable for low, medium and high risk secure services
- Available in 2 lengths
- Wall or ceiling mount
- Conduit fix via rear cable entry
- For use in hospital wards and corridors
- Vandal-resistant and tamper-proof
- CRI: Ra>80
Construction
- 1.2mm Steel body finished in white (RAL 9010)
- 4mm Opal polycarbonate diffuser secured by Resistorx screws
- Integral driver, simplifying installation and reducing maintenance
- Supplied in neutral white (4000K) LED
To Specify
SECURE S Anti-ligature Surface Module 31W - Fixed Output - Emergency - 4000K as per Tamlite SECURE S range.
