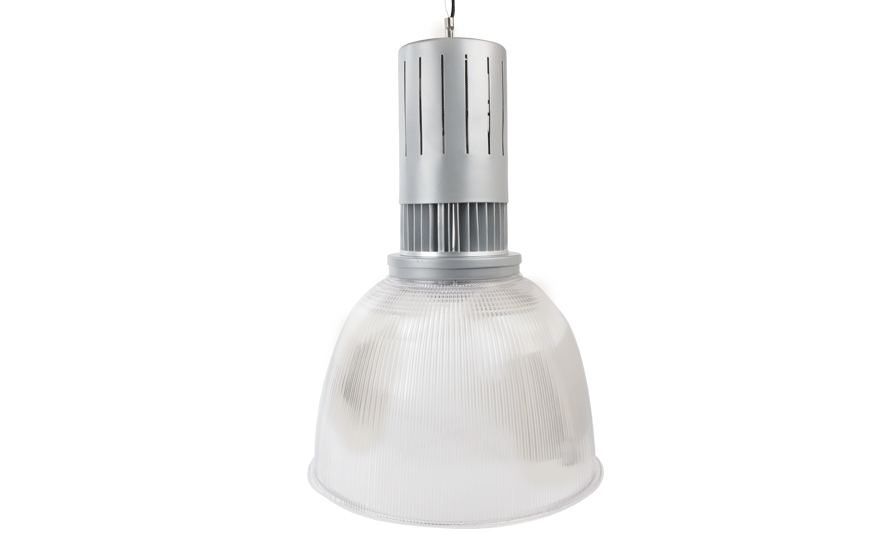

SAPPHIRE
High output LED Pendant
Information downloads
| Order code | Description | lm | W | lm/W | kg | c (mm) | Dia. |
|---|---|---|---|---|---|---|---|
| TSP470NW | 47W - 4000K | 4100 | 47 | 87 | 3.70 | 635 | 405 |
Product accessories
SAPPHIRE LENS
AIR
OLYMPIAN
CONTACT US
Product features
- Decorative pendant suitable for open areas and atriums
- High lumen output ideal for 5-8m mounting heights
- Gear options including DALI and emergency available
- CRI: Ra>80
- Up to 87 lumens per Watt efficacy
- 50,000 hours lifetime (L70/B50)
Construction
- Die-cast aluminium body with heat sink finished in silver (RAL 9022)
- Prismatic polycarbonate refractor
- Supplied with ceiling fixing plate and 2.0m of cable and wire suspension
- Supplied as standard with neutral white (4000K) LED
SAPPHIRE PL
View the non LED version of this product.
To specify
Decorative LED pendant as per Tamlite Sapphire LED range, supplied with gear and module
Installation notes
Suspended via 2.0m wire to ceiling fixing bracket with 2.0m black cable
Gear options
D - Dimmable DALI
M3 - 3 hours integrated emergency
A3 - Emergency self test
D3 - DALI self test
