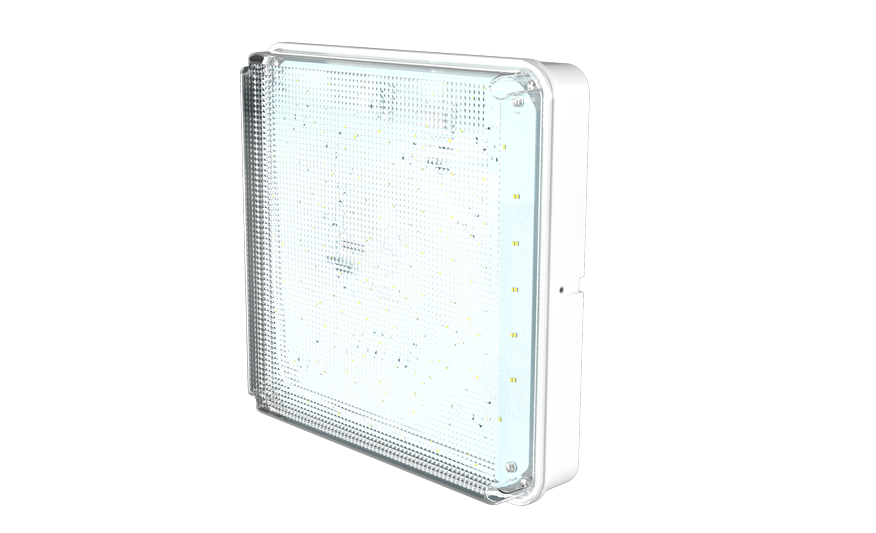

NIMROD S MP

Square Exterior/Interior Bulkhead with Prismatic Diffuser

  • Enhanced Energy Efficiency: Achieves up to 158 lm/W (lumens per watt) output
  • Lumen Output: Achieves up to 2,400 lumens
  • Colour Temperature: Available in Neutral White (4000K) or Warm White (3000K)
  • Operation: Standard or emergency variants available for flexible use and safety
  • Construction: Polycarbonate housing in White (RAL 9016) or Black (RAL 9005)
  • Ingress Protection: IP65 rated for dust and water resistance
  • Microprism Diffuser: minimalizes lumen loss improving efficacy
  • Gear Options: DALI-compatible with emergency options for smart control
  • Smart Integration: Compatible with Tamlite’s VISION lighting controls
IP65IK087 Years Warranty2 Years On-Site Warranty (T&C`s Apply)Vision OneVision ConnectVision Connect ProVision AirVision Air Pro
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Photometric LDT
Instruction leaflet
Polar Curve
Product Leaflet
Order Code Description lm W lm/W L(mm) W(mm) D(mm) Folio
NIMAS240MPNWB 15W - Microprism diffuser - 4000K - Black 2400 15 158 310 310 82
NIMAS240MPNWBA3 15W - Microprism diffuser - 4000K - Black 2400 15 158 310 310 82
NIMAS240MPNWBA3MS 15W - Microprism diffuser - 4000K - Black 2400 15 158 310 310 82
NIMAS240MPNWBD 15W - Microprism diffuser - 4000K - Black 2400 15 158 310 310 82
NIMAS240MPNWBD3 15W - Microprism diffuser - 4000K - Black 2400 15 158 310 310 82
NIMAS240MPNWBD3MS 15W - Microprism diffuser - 4000K - Black 2400 15 158 310 310 82
NIMAS240MPNWBDA3 15W - Microprism diffuser - 4000K - Black 2400 15 158 310 310 82
NIMAS240MPNWBDA3MS 15W - Microprism diffuser - 4000K - Black 2400 15 158 310 310 82
NIMAS240MPNWBDD3 15W - Microprism diffuser - 4000K - Black 2400 15 158 310 310 82
NIMAS240MPNWBDD3MS 15W - Microprism diffuser - 4000K - Black 2400 15 158 310 310 82
NIMAS240MPNWBDM3 15W - Microprism diffuser - 4000K - Black 2400 15 158 310 310 82
NIMAS240MPNWBDM3MS 15W - Microprism diffuser - 4000K - Black 2400 15 158 310 310 82
NIMAS240MPNWBDMS 15W - Microprism diffuser - 4000K - Black 2400 15 158 310 310 82
NIMAS240MPNWBM3 15W - Microprism diffuser - 4000K - Black 2400 15 158 310 310 82
NIMAS240MPNWBM3MS 15W - Microprism diffuser - 4000K - Black 2400 15 158 310 310 82
NIMAS240MPNWBMS 15W - Microprism diffuser - 4000K - Black 2400 15 158 310 310 82
NIMAS240MPNWW 15W - Microprism diffuser - 4000K - White 2400 15 158 310 310 82
NIMAS240MPNWWA3 15W - Microprism diffuser - 4000K - White 2400 15 158 310 310 82
NIMAS240MPNWWA3MS 15W - Microprism diffuser - 4000K - White 2400 15 158 310 310 82
NIMAS240MPNWWD 15W - Microprism diffuser - 4000K - White 2400 15 158 310 310 82
NIMAS240MPNWWD3 15W - Microprism diffuser - 4000K - White 2400 15 158 310 310 82
NIMAS240MPNWWD3MS 15W - Microprism diffuser - 4000K - White 2400 15 158 310 310 82
NIMAS240MPNWWDA3 15W - Microprism diffuser - 4000K - White 2400 15 158 310 310 82
NIMAS240MPNWWDA3MS 15W - Microprism diffuser - 4000K - White 2400 15 158 310 310 82
NIMAS240MPNWWDD3 15W - Microprism diffuser - 4000K - White 2400 15 158 310 310 82
NIMAS240MPNWWDD3MS 15W - Microprism diffuser - 4000K - White 2400 15 158 310 310 82
NIMAS240MPNWWDM3 15W - Microprism diffuser - 4000K - White 2400 15 158 310 310 82
NIMAS240MPNWWDM3MS 15W - Microprism diffuser - 4000K - White 2400 15 158 310 310 82
NIMAS240MPNWWDMS 15W - Microprism diffuser - 4000K - White 2400 15 158 310 310 82
NIMAS240MPNWWM3 15W - Microprism diffuser - 4000K - White 2400 15 158 310 310 82
NIMAS240MPNWWM3MS 15W - Microprism diffuser - 4000K - White 2400 15 158 310 310 82
NIMAS240MPNWWMS 15W - Microprism diffuser - 4000K - White 2400 15 158 310 310 82
NIMAS240MPWWB 15W - Microprism diffuser - 3000K - Black 2400 15 158 310 310 80
NIMAS240MPWWBA3 15W - Microprism diffuser - 3000K - Black 2400 15 158 310 310 80
NIMAS240MPWWBA3MS 15W - Microprism diffuser - 3000K - Black 2400 15 158 310 310 80
NIMAS240MPWWBD 15W - Microprism diffuser - 3000K - Black 2400 15 158 310 310 80
NIMAS240MPWWBD3 15W - Microprism diffuser - 3000K - Black 2400 15 158 310 310 80
NIMAS240MPWWBD3MS 15W - Microprism diffuser - 3000K - Black 2400 15 158 310 310 80
NIMAS240MPWWBDA3 15W - Microprism diffuser - 3000K - Black 2400 15 158 310 310 80
NIMAS240MPWWBDA3MS 15W - Microprism diffuser - 3000K - Black 2400 15 158 310 310 80
NIMAS240MPWWBDD3 15W - Microprism diffuser - 3000K - Black 2400 15 158 310 310 80
NIMAS240MPWWBDD3MS 15W - Microprism diffuser - 3000K - Black 2400 15 158 310 310 80
NIMAS240MPWWBDM3 15W - Microprism diffuser - 3000K - Black 2400 15 158 310 310 80
NIMAS240MPWWBDM3MS 15W - Microprism diffuser - 3000K - Black 2400 15 158 310 310 80
NIMAS240MPWWBDMS 15W - Microprism diffuser - 3000K - Black 2400 15 158 310 310 80
NIMAS240MPWWBM3 15W - Microprism diffuser - 3000K - Black 2400 15 158 310 310 80
NIMAS240MPWWBM3MS 15W - Microprism diffuser - 3000K - Black 2400 15 158 310 310 80
NIMAS240MPWWBMS 15W - Microprism diffuser - 3000K - Black 2400 15 158 310 310 80
NIMAS240MPWWW 15W - Microprism diffuser - 3000K - White 2400 15 158 310 310 80
NIMAS240MPWWWA3 15W - Microprism diffuser - 3000K - White 2400 15 158 310 310 80
NIMAS240MPWWWA3MS 15W - Microprism diffuser - 3000K - White 2400 15 158 310 310 80
NIMAS240MPWWWD 15W - Microprism diffuser - 3000K - White 2400 15 158 310 310 80
NIMAS240MPWWWD3 15W - Microprism diffuser - 3000K - White 2400 15 158 310 310 80
NIMAS240MPWWWD3MS 15W - Microprism diffuser - 3000K - White 2400 15 158 310 310 80
NIMAS240MPWWWDA3 15W - Microprism diffuser - 3000K - White 2400 15 158 310 310 80
NIMAS240MPWWWDA3MS 15W - Microprism diffuser - 3000K - White 2400 15 158 310 310 80
NIMAS240MPWWWDD3 15W - Microprism diffuser - 3000K - White 2400 15 158 310 310 80
NIMAS240MPWWWDD3MS 15W - Microprism diffuser - 3000K - White 2400 15 158 310 310 80
NIMAS240MPWWWDM3 15W - Microprism diffuser - 3000K - White 2400 15 158 310 310 80
NIMAS240MPWWWDM3MS 15W - Microprism diffuser - 3000K - White 2400 15 158 310 310 80
NIMAS240MPWWWDMS 15W - Microprism diffuser - 3000K - White 2400 15 158 310 310 80
NIMAS240MPWWWM3 15W - Microprism diffuser - 3000K - White 2400 15 158 310 310 80
NIMAS240MPWWWM3MS 15W - Microprism diffuser - 3000K - White 2400 15 158 310 310 80
NIMAS240MPWWWMS 15W - Microprism diffuser - 3000K - White 2400 15 158 310 310 80
