NIMROD C MP

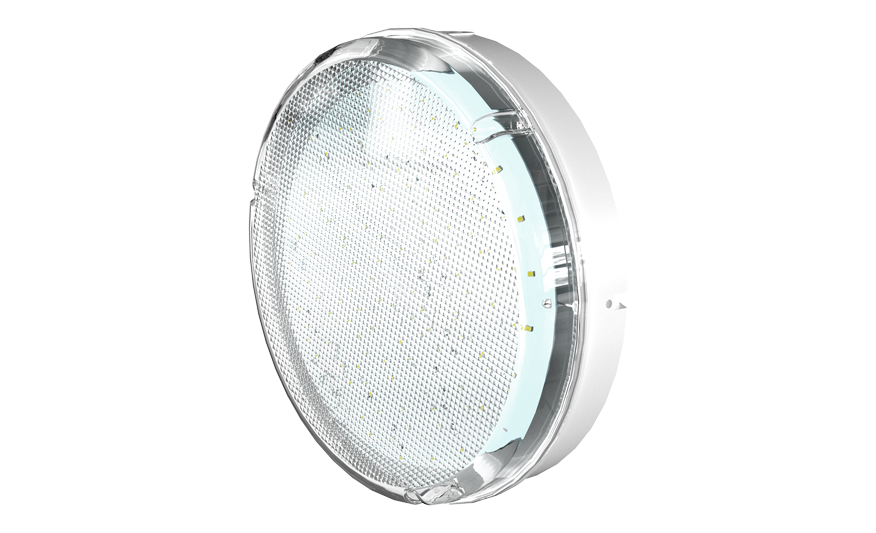

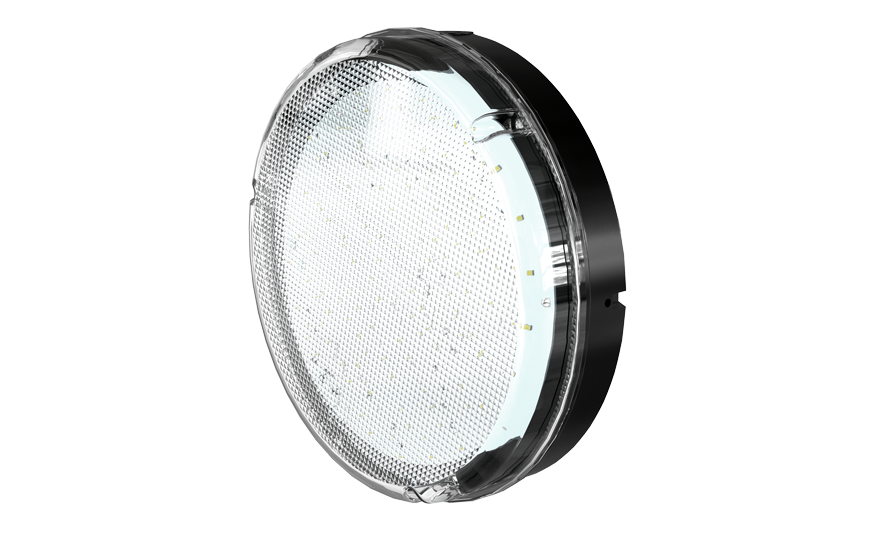

Circular Interior/Exterior Bulkhead with Prismatic Diffuser

  • Enhanced Energy Efficiency: Achieves up to 156 lm/W (lumens per watt) output
  • Lumen Output: Achieves up to 2,400 lumens
  • Colour Temperature: Available in Neutral White (4000K) or Warm White (3000K)
  • Operation: Standard or emergency variants available for flexible use and safety
  • Construction: Polycarbonate housing in White (RAL 9016) or Black (RAL 9005)
  • Ingress Protection: IP65 rated for dust and water resistance
  • Microprism Diffuser: minimalizes lumen loss improving efficacy
  • Gear Options: DALI-compatible with emergency options for smart control
  • Smart Integration: Compatible with Tamlite’s VISION lighting controls
IP65IK087 Years Warranty2 Years On-Site Warranty (T&C`s Apply)Vision OneVision ConnectVision Connect ProVision AirVision Air Pro
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Photometric LDT
Instruction leaflet
Polar Curve
Product Leaflet
Order Code Description lm W lm/W Dia(mm) D(mm) Folio
NIMAC240MPNWB 15W - Microprism diffuser - 4000K - Black 2400 15 156 312 82
NIMAC240MPNWBA3 15W - Microprism diffuser - 4000K - Black 2400 15 156 312 82
NIMAC240MPNWBA3MS 15W - Microprism diffuser - 4000K - Black 2400 15 156 312 82
NIMAC240MPNWBD 15W - Microprism diffuser - 4000K - Black 2400 15 156 312 82
NIMAC240MPNWBD3 15W - Microprism diffuser - 4000K - Black 2400 15 156 312 82
NIMAC240MPNWBD3MS 15W - Microprism diffuser - 4000K - Black 2400 15 156 312 82
NIMAC240MPNWBDA3 15W - Microprism diffuser - 4000K - Black 2400 15 156 312 82
NIMAC240MPNWBDA3MS 15W - Microprism diffuser - 4000K - Black 2400 15 156 312 82
NIMAC240MPNWBDD3 15W - Microprism diffuser - 4000K - Black 2400 15 156 312 82
NIMAC240MPNWBDD3MS 15W - Microprism diffuser - 4000K - Black 2400 15 156 312 82
NIMAC240MPNWBDM3 15W - Microprism diffuser - 4000K - Black 2400 15 156 312 82
NIMAC240MPNWBDM3MS 15W - Microprism diffuser - 4000K - Black 2400 15 156 312 82
NIMAC240MPNWBDMS 15W - Microprism diffuser - 4000K - Black 2400 15 156 312 82
NIMAC240MPNWBM3 15W - Microprism diffuser - 4000K - Black 2400 15 156 312 82
NIMAC240MPNWBM3MS 15W - Microprism diffuser - 4000K - Black 2400 15 156 312 82
NIMAC240MPNWBMS 15W - Microprism diffuser - 4000K - Black 2400 15 156 312 82
NIMAC240MPNWW 15W - Microprism diffuser - 4000K - White 2400 15 156 312 82
NIMAC240MPNWWA3 15W - Microprism diffuser - 4000K - White 2400 15 156 312 82
NIMAC240MPNWWA3MS 15W - Microprism diffuser - 4000K - White 2400 15 156 312 82
NIMAC240MPNWWD 15W - Microprism diffuser - 4000K - White 2400 15 156 312 82
NIMAC240MPNWWD3 15W - Microprism diffuser - 4000K - White 2400 15 156 312 82
NIMAC240MPNWWD3MS 15W - Microprism diffuser - 4000K - White 2400 15 156 312 82
NIMAC240MPNWWDA3 15W - Microprism diffuser - 4000K - White 2400 15 156 312 82
NIMAC240MPNWWDA3MS 15W - Microprism diffuser - 4000K - White 2400 15 156 312 82
NIMAC240MPNWWDD3 15W - Microprism diffuser - 4000K - White 2400 15 156 312 82
NIMAC240MPNWWDD3MS 15W - Microprism diffuser - 4000K - White 2400 15 156 312 82
NIMAC240MPNWWDM3 15W - Microprism diffuser - 4000K - White 2400 15 156 312 82
NIMAC240MPNWWDM3MS 15W - Microprism diffuser - 4000K - White 2400 15 156 312 82
NIMAC240MPNWWDMS 15W - Microprism diffuser - 4000K - White 2400 15 156 312 82
NIMAC240MPNWWM3 15W - Microprism diffuser - 4000K - White 2400 15 156 312 82
NIMAC240MPNWWM3MS 15W - Microprism diffuser - 4000K - White 2400 15 156 312 82
NIMAC240MPNWWMS 15W - Microprism diffuser - 4000K - White 2400 15 156 312 82
NIMAC240MPWWB 15W - Microprism diffuser - 3000K - Black 2400 15 156 310 83
NIMAC240MPWWBA3 15W - Microprism diffuser - 3000K - Black 2400 15 156 310 83
NIMAC240MPWWBA3MS 15W - Microprism diffuser - 3000K - Black 2400 15 156 310 83
NIMAC240MPWWBD 15W - Microprism diffuser - 3000K - Black 2400 15 156 310 83
NIMAC240MPWWBD3 15W - Microprism diffuser - 3000K - Black 2400 15 156 310 83
NIMAC240MPWWBD3MS 15W - Microprism diffuser - 3000K - Black 2400 15 156 310 83
NIMAC240MPWWBDA3 15W - Microprism diffuser - 3000K - Black 2400 15 156 310 83
NIMAC240MPWWBDA3MS 15W - Microprism diffuser - 3000K - Black 2400 15 156 310 83
NIMAC240MPWWBDD3 15W - Microprism diffuser - 3000K - Black 2400 15 156 310 83
NIMAC240MPWWBDD3MS 15W - Microprism diffuser - 3000K - Black 2400 15 156 310 83
NIMAC240MPWWBDM3 15W - Microprism diffuser - 3000K - Black 2400 15 156 310 83
NIMAC240MPWWBDM3MS 15W - Microprism diffuser - 3000K - Black 2400 15 156 310 83
NIMAC240MPWWBDMS 15W - Microprism diffuser - 3000K - Black 2400 15 156 310 83
NIMAC240MPWWBM3 15W - Microprism diffuser - 3000K - Black 2400 15 156 310 83
NIMAC240MPWWBM3MS 15W - Microprism diffuser - 3000K - Black 2400 15 156 310 83
NIMAC240MPWWBMS 15W - Microprism diffuser - 3000K - Black 2400 15 156 310 83
NIMAC240MPWWW 15W - Microprism diffuser - 3000K - White 2400 15 156 310 83
NIMAC240MPWWWA3 15W - Microprism diffuser - 3000K - White 2400 15 156 310 83
NIMAC240MPWWWA3MS 15W - Microprism diffuser - 3000K - White 2400 15 156 310 83
NIMAC240MPWWWD 15W - Microprism diffuser - 3000K - White 2400 15 156 310 83
NIMAC240MPWWWD3 15W - Microprism diffuser - 3000K - White 2400 15 156 310 83
NIMAC240MPWWWD3MS 15W - Microprism diffuser - 3000K - White 2400 15 156 310 83
NIMAC240MPWWWDA3 15W - Microprism diffuser - 3000K - White 2400 15 156 310 83
NIMAC240MPWWWDA3MS 15W - Microprism diffuser - 3000K - White 2400 15 156 310 83
NIMAC240MPWWWDD3 15W - Microprism diffuser - 3000K - White 2400 15 156 310 83
NIMAC240MPWWWDD3MS 15W - Microprism diffuser - 3000K - White 2400 15 156 310 83
NIMAC240MPWWWDM3 15W - Microprism diffuser - 3000K - White 2400 15 156 310 83
NIMAC240MPWWWDM3MS 15W - Microprism diffuser - 3000K - White 2400 15 156 310 83
NIMAC240MPWWWDMS 15W - Microprism diffuser - 3000K - White 2400 15 156 310 83
NIMAC240MPWWWM3 15W - Microprism diffuser - 3000K - White 2400 15 156 310 83
NIMAC240MPWWWM3MS 15W - Microprism diffuser - 3000K - White 2400 15 156 310 83
NIMAC240MPWWWMS 15W - Microprism diffuser - 3000K - White 2400 15 156 310 83
