HYLITE

Gimble Style Recessed Downlight

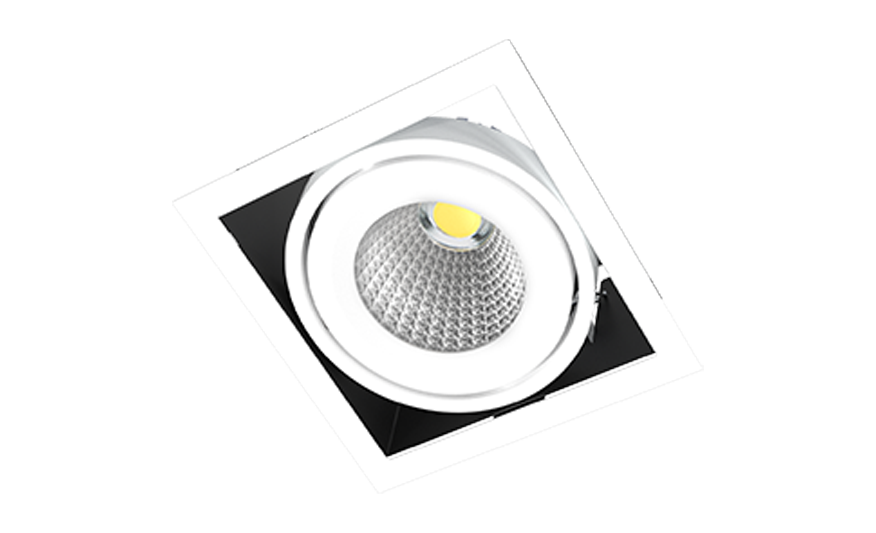

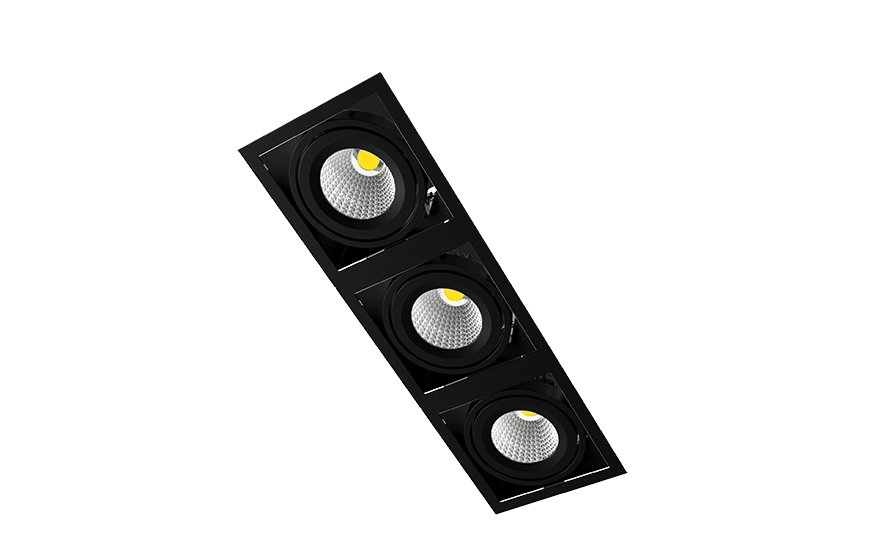

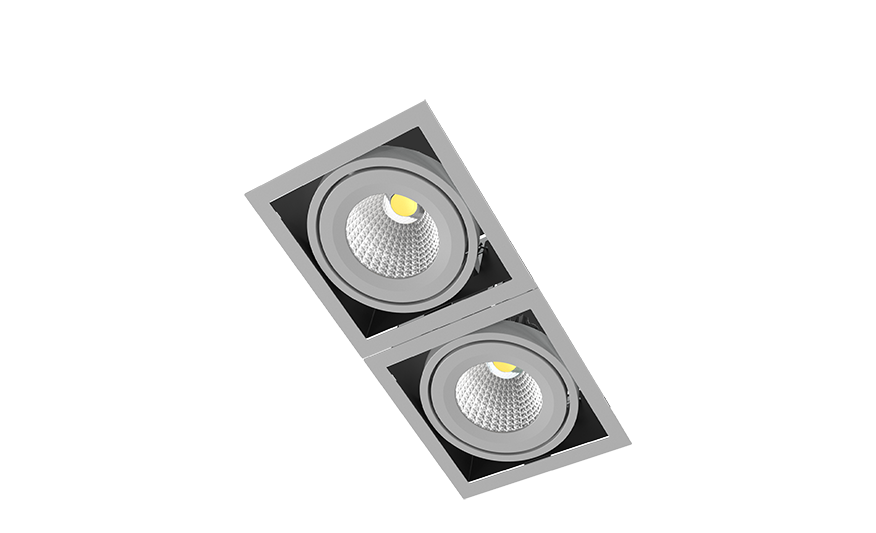

  • Available as single, twin, or triple spot modules
  • Medium beam 52° reflector
  • Fully adjustable and rotatable spot heads
  • Recessed multi-spot LED gimbal for retail or accent areas
  • CRI: Ra>80
  • Die-cast aluminium body finished in grey (RAL 9006), white (RAL 9016) or black (RAL 9005)
  • Supplied in neutral white (4000K) LED
  • Up to 132 lumens per Watt efficacy
7 Years Warranty2 Years On-Site Warranty (T&C`s Apply)
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Product Leaflet
Instruction leaflet
Polar Curve
Photometric Data
Order Code Description lm W lm/W Cut out L(mm) W(mm) D(mm)
HYL1250MNWB 19W - Single - 4000K - Black 2500 19 132 180 189 189 145
HYL1250MNWBD 19W - Single - 4000K - Black 2500 19 132 180 189 189 145
HYL1250MNWG 19W - Single - 4000K - Grey 2500 19 132 180 189 189 145
HYL1250MNWGD 19W - Single - 4000K - Grey 2500 19 132 180 189 189 145
HYL1250MNWW 19W - Single - 4000K - White 2500 19 132 180 189 189 145
HYL1250MNWWD 19W - Single - 4000K - White 2500 19 132 180 189 189 145
HYL1250MWWB 19W - Single - 3000K - Black 2500 19 132 180 189 189 145
HYL1250MWWBD 19W - Single - 3000K - Black 2500 19 132 180 189 189 145
HYL1250MWWG 19W - Single - 3000K - Grey 2500 19 132 180 189 189 145
HYL1250MWWGD 19W - Single - 3000K - Grey 2500 19 132 180 189 189 145
HYL1250MWWW 19W - Single - 3000K - White 2500 19 132 180 189 189 145
HYL1250MWWWD 19W - Single - 3000K - White 2500 19 132 180 189 189 145
HYL2490MNWB 38W - Twin - 4000K - Black 4900 38 129 339 348 189 145
HYL2490MNWBD 38W - Twin - 4000K - Black 4900 38 129 339 348 189 145
HYL2490MNWG 38W - Twin - 4000K - Grey 4900 38 129 339 348 189 145
HYL2490MNWGD 38W - Twin - 4000K - Grey 4900 38 129 339 348 189 145
HYL2490MNWW 38W - Twin - 4000K - White 4900 38 129 339 348 189 145
HYL2490MNWWD 38W - Twin - 4000K - White 4900 38 129 339 348 189 145
HYL2490MWWB 38W - Twin - 3000K - Black 4900 38 129 339 348 189 145
HYL2490MWWBD 38W - Twin - 3000K - Black 4900 38 129 339 348 189 145
HYL2490MWWG 38W - Twin - 3000K - Grey 4900 38 129 339 348 189 145
HYL2490MWWGD 38W - Twin - 3000K - Grey 4900 38 129 339 348 189 145
HYL2490MWWW 38W - Twin - 3000K - White 4900 38 129 339 348 189 145
HYL2490MWWWD 38W - Twin - 3000K - White 4900 38 129 339 348 189 145
HYL3740MNWB 57W - Triple - 4000K - Black 7400 57 130 495 504 189 145
HYL3740MNWBD 57W - Triple - 4000K - Black 7400 57 130 495 504 189 145
HYL3740MNWG 57W - Triple - 4000K - Grey 7400 57 130 495 504 189 145
HYL3740MNWGD 57W - Triple - 4000K - Grey 7400 57 130 495 504 189 145
HYL3740MNWW 57W - Triple - 4000K - White 7400 57 130 495 504 189 145
HYL3740MNWWD 57W - Triple - 4000K - White 7400 57 130 495 504 189 145
HYL3740MWWB 57W - Triple - 3000K - Black 7400 57 130 495 504 189 145
HYL3740MWWBD 57W - Triple - 3000K - Black 7400 57 130 495 504 189 145
HYL3740MWWG 57W - Triple - 3000K - Grey 7400 57 130 495 504 189 145
HYL3740MWWGD 57W - Triple - 3000K - Grey 7400 57 130 495 504 189 145
HYL3740MWWW 57W - Triple - 3000K - White 7400 57 130 495 504 189 145
HYL3740MWWWD 57W - Triple - 3000K - White 7400 57 130 495 504 189 145
