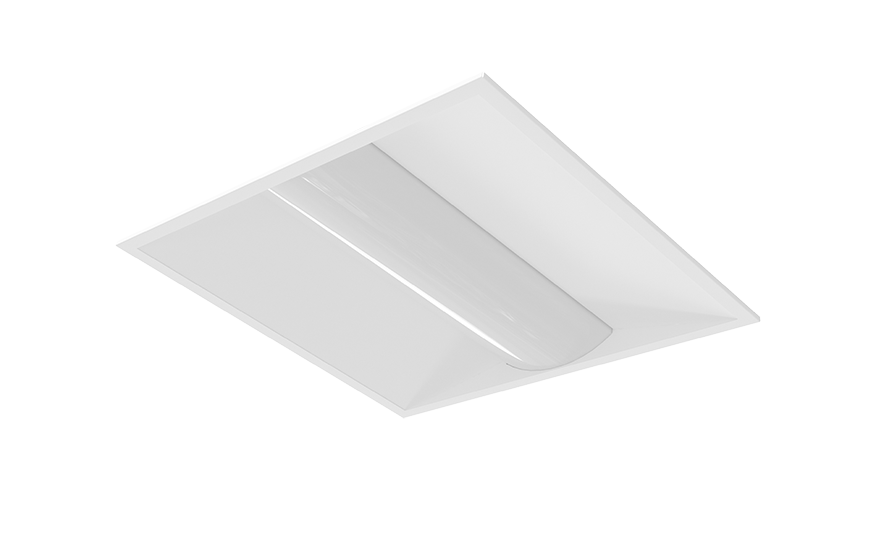

HORIZON COMFORT

Recessed Module

  • TM66 Certified options available for specification
  • Available in 3 different outputs for low, medium or high spacing layouts
  • Tamlite I-Tech diffuser designed for low glare reduction to BS EN-12464 compliance
  • Integrated emergency option available
  • CRI: Ra>80
  • Steel body finished in white (RAL 9016)
  • Opal Polycarbonate TP(a) diffuser
  • Remote driver
  • Supplied in neutral white (4000K) LED
  • Up to 130 lumens per Watt efficacy
7 Years Warranty2 Years On-Site Warranty (T&C`s Apply)
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

TM66 Certificate
Product Leaflet
Instruction leaflet
Polar Curve
Photometric Data
Order Code Description lm W lm/W L(mm) W(mm) D(mm)
HRC66220CW 18W - 5000K 2200 18 122 595 595 90
HRC66220CWA3 18W - 5000K 2200 18 122 595 595 90
HRC66220CWD 18W - 5000K 2200 18 122 595 595 90
HRC66220CWD3 18W - 5000K 2200 18 122 595 595 90
HRC66220CWDA3 18W - 5000K 2200 18 122 595 595 90
HRC66220CWDD3 18W - 5000K 2200 18 122 595 595 90
HRC66220CWDM3 18W - 5000K 2200 18 122 595 595 90
HRC66220CWM3 18W - 5000K 2200 18 122 595 595 90
HRC66220NW 18W - 4000K 2200 18 122 595 595 90
HRC66220NWA3 18W - 4000K 2200 18 122 595 595 90
HRC66220NWD 18W - 4000K 2200 18 122 595 595 90
HRC66220NWD3 18W - 4000K 2200 18 122 595 595 90
HRC66220NWDA3 18W - 4000K 2200 18 122 595 595 90
HRC66220NWDD3 18W - 4000K 2200 18 122 595 595 90
HRC66220NWDM3 18W - 4000K 2200 18 122 595 595 90
HRC66220NWM3 18W - 4000K 2200 18 122 595 595 90
HRC66220WW 18W - 3000K 2200 18 122 595 595 90
HRC66220WWA3 18W - 3000K 2200 18 122 595 595 90
HRC66220WWD 18W - 3000K 2200 18 122 595 595 90
HRC66220WWD3 18W - 3000K 2200 18 122 595 595 90
HRC66220WWDA3 18W - 3000K 2200 18 122 595 595 90
HRC66220WWDD3 18W - 3000K 2200 18 122 595 595 90
HRC66220WWDM3 18W - 3000K 2200 18 122 595 595 90
HRC66220WWM3 18W - 3000K 2200 18 122 595 595 90
HRC66300CW 23W - 5000K 3000 23 130 595 595 90
HRC66300CWA3 23W - 5000K 3000 23 130 595 595 90
HRC66300CWD 23W - 5000K 3000 23 130 595 595 90
HRC66300CWD3 23W - 5000K 3000 23 130 595 595 90
HRC66300CWDA3 23W - 5000K 3000 23 130 595 595 90
HRC66300CWDD3 23W - 5000K 3000 23 130 595 595 90
HRC66300CWDM3 23W - 5000K 3000 23 130 595 595 90
HRC66300CWM3 23W - 5000K 3000 23 130 595 595 90
HRC66300NW 23W - 4000K 3000 23 130 595 595 90
HRC66300NWA3 23W - 4000K 3000 23 130 595 595 90
HRC66300NWD 23W - 4000K 3000 23 130 595 595 90
HRC66300NWD3 23W - 4000K 3000 23 130 595 595 90
HRC66300NWDA3 23W - 4000K 3000 23 130 595 595 90
HRC66300NWDD3 23W - 4000K 3000 23 130 595 595 90
HRC66300NWDM3 23W - 4000K 3000 23 130 595 595 90
HRC66300NWM3 23W - 4000K 3000 23 130 595 595 90
HRC66300WW 23W - 3000K 3000 23 130 595 595 90
HRC66300WWA3 23W - 3000K 3000 23 130 595 595 90
HRC66300WWD 23W - 3000K 3000 23 130 595 595 90
HRC66300WWD3 23W - 3000K 3000 23 130 595 595 90
HRC66300WWDA3 23W - 3000K 3000 23 130 595 595 90
HRC66300WWDD3 23W - 3000K 3000 23 130 595 595 90
HRC66300WWDM3 23W - 3000K 3000 23 130 595 595 90
HRC66300WWM3 23W - 3000K 3000 23 130 595 595 90
HRC66450CW 36W - 5000K 4500 36 125 595 595 90
HRC66450CWA3 36W - 5000K 4500 36 125 595 595 90
HRC66450CWD 36W - 5000K 4500 36 125 595 595 90
HRC66450CWD3 36W - 5000K 4500 36 125 595 595 90
HRC66450CWDA3 36W - 5000K 4500 36 125 595 595 90
HRC66450CWDD3 36W - 5000K 4500 36 125 595 595 90
HRC66450CWDM3 36W - 5000K 4500 36 125 595 595 90
HRC66450CWM3 36W - 5000K 4500 36 125 595 595 90
HRC66450NW 36W - 4000K 4500 36 125 595 595 90
HRC66450NWA3 36W - 4000K 4500 36 125 595 595 90
HRC66450NWD 36W - 4000K 4500 36 125 595 595 90
HRC66450NWD3 36W - 4000K 4500 36 125 595 595 90
HRC66450NWDA3 36W - 4000K 4500 36 125 595 595 90
HRC66450NWDD3 36W - 4000K 4500 36 125 595 595 90
HRC66450NWDM3 36W - 4000K 4500 36 125 595 595 90
HRC66450NWM3 36W - 4000K 4500 36 125 595 595 90
HRC66450WW 36W - 3000K 4500 36 125 595 595 90
HRC66450WWA3 36W - 3000K 4500 36 125 595 595 90
HRC66450WWD 36W - 3000K 4500 36 125 595 595 90
HRC66450WWD3 36W - 3000K 4500 36 125 595 595 90
HRC66450WWDA3 36W - 3000K 4500 36 125 595 595 90
HRC66450WWDD3 36W - 3000K 4500 36 125 595 595 90
HRC66450WWDM3 36W - 3000K 4500 36 125 595 595 90
HRC66450WWM3 36W - 3000K 4500 36 125 595 595 90
