Home > Products > GEMINI > GEM225WWWD

Order Code: GEM225WWWD

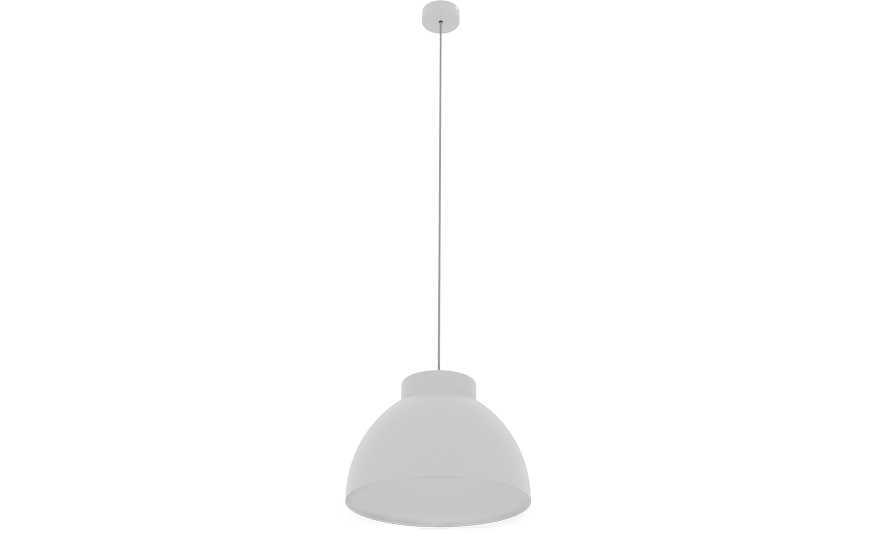

GEMINI Pendant White 20W - Dimmable DALI - 3000K

Technical Data

General

Luminaire Wattage (W) 20

Weight (kg) 2.30

Operating Temperature (°C) -15 to 50

Light Output

Lumens (lm) 2250

Efficacy (lm/W) 113

Beam Angle (FWHM°) 103

Life

L80 Lifetime (HRS) L80B10 >72.000h

Electrical

Rated Input Current (A) 0.14 ? 0.18

Power Factor (pf) >0.95

Input Voltage Range (V) 198 - 264

Inrush Current Peak (A) 7

Surge Protection (kV) 1

Total Harmonic Distortion (THD) < 17 %

Output LF Ripple < 2 %* at ? 120 Hz

Conductor Size (mm) 1.5 to 2.5mm

Terminal Type push fit

LED

CCT (K) 3000

CRI 80

Macadam Elipses 4

Driver

Driver Current (mA) 500

Forward Voltage (V) 33.6

Driver Lifetime (HRS) 50000

Resources

Photometric LDT Product Leaflet Instruction leaflet Line Drawing Photometric Data Data Sheet

Features

Suitable for retail, hotel or restaurants
Integrated LED module for long life and colour quality
72,000 hours lifetime (L80/B10)

Construction

Opal Polycarbonate TP(a) diffuser
Integral driver simplifying installation

To Specify

GEMINI Pendant White 20W - Dimmable DALI - 3000K as per Tamlite GEMINI range.
