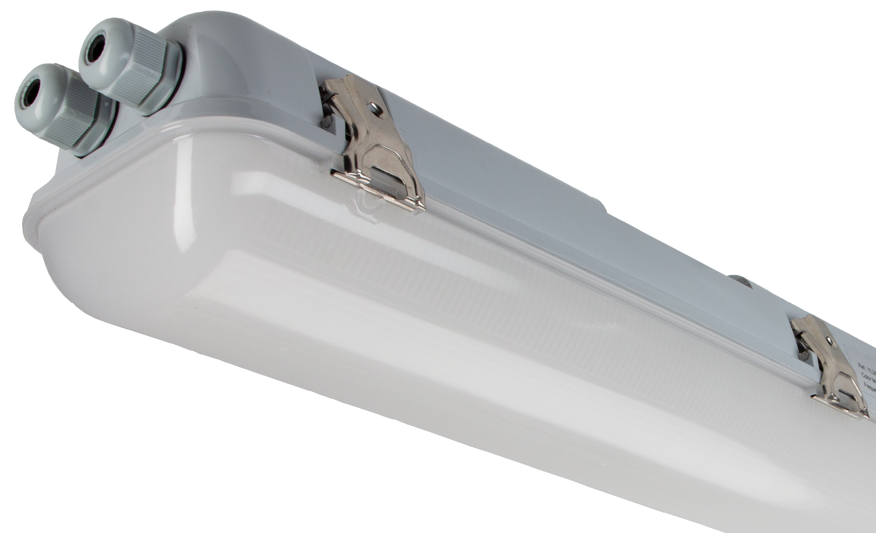

CYCLONE P

IP66 Weatherproof Polycarbonate Luminaire

  • TM66 Certified options available for specification
  • Suitable for internal or external use in industrial-warehousing areas
  • PIR and microwave sensor options
  • Gear options including DALI and emergency available
  • Moisture-proof, dust-resistant and chemical-resistant IP66 fixture
  • CRI: Ra>80
  • Polycarbonate Plastic body with Polycarbonate Opal diffuser
  • Integral driver

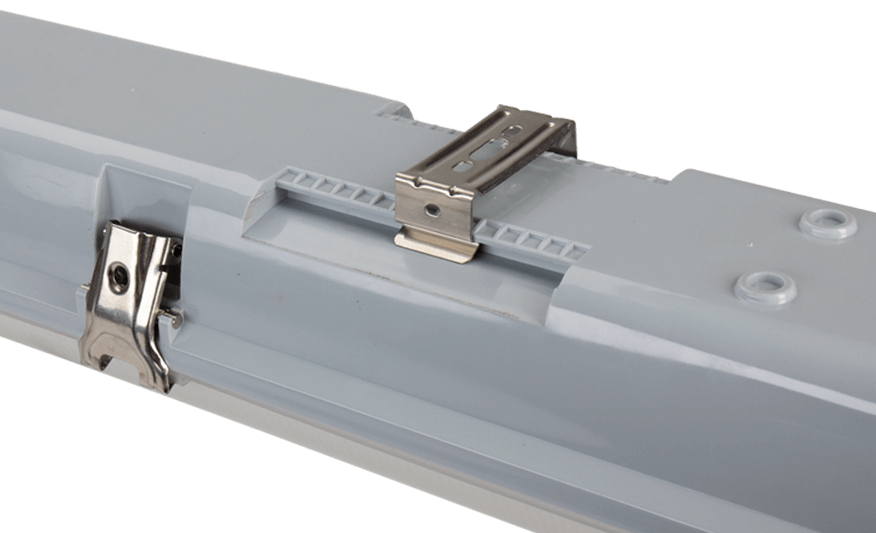

  • Stainless steel fixing clips
  • Loop in/out cable entries
  • Supplied in neutral white (4000K) LED
  • Up to 149 lumens per Watt efficacy
Batten fit PIR + photocellMicrowave sensorIP66IK08Electrical class 17 Years Warranty
≤9.4K lm
≤63 W
≤149 lm/W
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Application table
Product Leaflet
Instruction leaflet
Polar Curve
Photometric Data
Order CodeDescriptionlmWlm/WL(mm)W(mm)D(mm)Add to Project
CYP4310NW22W - 4000K3100221411200120103
CYP4310NWA322W - 4000K3100221411200120103
CYP4310NWA3MS22W - 4000K3100221411200120103
CYP4310NWA3VB122W - 4000K3100221411307120103
CYP4310NWA3VB222W - 4000K3100221411307120103
CYP4310NWD22W - 4000K3100221411200120103
CYP4310NWD322W - 4000K3100221411200120103
CYP4310NWD3MS22W - 4000K3100221411200120103
CYP4310NWD3VB122W - 4000K3100221411307120103
CYP4310NWD3VB222W - 4000K3100221411307120103
CYP4310NWDA322W - 4000K3100221411200120103
CYP4310NWDA3MD22W - 4000K3100221411200120103
CYP4310NWDA3VB322W - 4000K3100221411307120103
CYP4310NWDD322W - 4000K3100221411200120103
CYP4310NWDD3MD22W - 4000K3100221411200120103
CYP4310NWDD3VB322W - 4000K3100221411307120103
CYP4310NWDM322W - 4000K3100221411200120103
CYP4310NWDM3MD22W - 4000K3100221411200120103
CYP4310NWDM3VB322W - 4000K3100221411307120103
CYP4310NWDMD22W - 4000K3100221411200120103
CYP4310NWDVB322W - 4000K3100221411307120103
CYP4310NWM322W - 4000K3100221411200120103
CYP4310NWM3MS22W - 4000K3100221411200120103
CYP4310NWM3VB122W - 4000K3100221411307120103
CYP4310NWM3VB222W - 4000K3100221411307120103
CYP4310NWMS22W - 4000K3100221411200120103
CYP4310NWVB122W - 4000K3100221411307120103
CYP4310NWVB222W - 4000K3100221411307120103
CYP5430NW29W - 4000K4300291481500120103
CYP5430NWA329W - 4000K4300291481500120103
CYP5430NWA3MS29W - 4000K4300291481500120103
CYP5430NWA3VB129W - 4000K4300291481607120103
CYP5430NWA3VB229W - 4000K4300291481607120103
CYP5430NWD29W - 4000K4300291481500120103
CYP5430NWD329W - 4000K4300291481500120103
CYP5430NWD3MS29W - 4000K4300291481500120103
CYP5430NWD3VB129W - 4000K4300291481607120103
CYP5430NWD3VB229W - 4000K4300291481607120103
CYP5430NWDA329W - 4000K4300291481500120103
CYP5430NWDA3MD29W - 4000K4300291481500120103
CYP5430NWDA3VB329W - 4000K4300291481607120103
CYP5430NWDD329W - 4000K4300291481500120103
CYP5430NWDD3MD29W - 4000K4300291481500120103
CYP5430NWDD3VB329W - 4000K4300291481607120103
CYP5430NWDM329W - 4000K4300291481500120103
CYP5430NWDM3MD29W - 4000K4300291481500120103
CYP5430NWDM3VB329W - 4000K4300291481607120103
CYP5430NWDMD29W - 4000K4300291481500120103
CYP5430NWDVB329W - 4000K4300291481607120103
CYP5430NWM329W - 4000K4300291481500120103
CYP5430NWM3MS29W - 4000K4300291481500120103
CYP5430NWM3VB129W - 4000K4300291481607120103
CYP5430NWM3VB229W - 4000K4300291481607120103
CYP5430NWMS29W - 4000K4300291481500120103
CYP5430NWVB129W - 4000K4300291481607120103
CYP5430NWVB229W - 4000K4300291481607120103
CYP4670NW45W - 4000K6700451491200120103
CYP4670NWA345W - 4000K6700451491200120103
CYP4670NWA3MS45W - 4000K6700451491200120103
CYP4670NWA3VB145W - 4000K6700451491307120103
CYP4670NWA3VB245W - 4000K6700451491307120103
CYP4670NWD45W - 4000K6700451491200120103
CYP4670NWD345W - 4000K6700451491200120103
CYP4670NWD3MS45W - 4000K6700451491200120103
CYP4670NWD3VB145W - 4000K6700451491307120103
CYP4670NWD3VB245W - 4000K6700451491307120103
CYP4670NWDA345W - 4000K6700451491200120103
CYP4670NWDA3MD45W - 4000K6700451491200120103
CYP4670NWDA3VB345W - 4000K6700451491307120103
CYP4670NWDD345W - 4000K6700451491200120103
CYP4670NWDD3MD45W - 4000K6700451491200120103
CYP4670NWDD3VB345W - 4000K6700451491307120103
CYP4670NWDM345W - 4000K6700451491200120103
CYP4670NWDM3MD45W - 4000K6700451491200120103
CYP4670NWDM3VB345W - 4000K6700451491307120103
CYP4670NWDMD45W - 4000K6700451491200120103
CYP4670NWDVB345W - 4000K6700451491307120103
CYP4670NWM345W - 4000K6700451491200120103
CYP4670NWM3MS45W - 4000K6700451491200120103
CYP4670NWM3VB145W - 4000K6700451491307120103
CYP4670NWM3VB245W - 4000K6700451491307120103
CYP4670NWMS45W - 4000K6700451491200120103
CYP4670NWVB145W - 4000K6700451491307120103
CYP4670NWVB245W - 4000K6700451491307120103
CYP5670NW45W - 4000K6700451491500120103
CYP5670NWA345W - 4000K6700451491500120103
CYP5670NWA3MS45W - 4000K6700451491500120103
CYP5670NWA3VB145W - 4000K6700451491607120103
CYP5670NWA3VB245W - 4000K6700451491607120103
CYP5670NWD45W - 4000K6700451491500120103
CYP5670NWD345W - 4000K6700451491500120103
CYP5670NWD3MS45W - 4000K6700451491500120103
CYP5670NWD3VB145W - 4000K6700451491607120103
CYP5670NWD3VB245W - 4000K6700451491607120103
CYP5670NWDA345W - 4000K6700451491500120103
CYP5670NWDA3MD45W - 4000K6700451491500120103
CYP5670NWDA3VB345W - 4000K6700451491607120103
CYP5670NWDD345W - 4000K6700451491500120103
CYP5670NWDD3MD45W - 4000K6700451491500120103
CYP5670NWDD3VB345W - 4000K6700451491607120103
CYP5670NWDM345W - 4000K6700451491500120103
CYP5670NWDM3MD45W - 4000K6700451491500120103
CYP5670NWDM3VB345W - 4000K6700451491607120103
CYP5670NWDMD45W - 4000K6700451491500120103
CYP5670NWDVB345W - 4000K6700451491607120103
CYP5670NWM345W - 4000K6700451491500120103
CYP5670NWM3MS45W - 4000K6700451491500120103
CYP5670NWM3VB145W - 4000K6700451491607120103
CYP5670NWM3VB245W - 4000K6700451491607120103
CYP5670NWMS45W - 4000K6700451491500120103
CYP5670NWVB145W - 4000K6700451491607120103
CYP5670NWVB245W - 4000K6700451491607120103
CYP5940NW63W - 4000K9400631491500120103
CYP5940NWA363W - 4000K9400631491500120103
CYP5940NWA3MS63W - 4000K9400631491500120103
CYP5940NWA3VB163W - 4000K9400631491607120103
CYP5940NWA3VB263W - 4000K9400631491607120103
CYP5940NWD63W - 4000K9400631491500120103
CYP5940NWD363W - 4000K9400631491500120103
CYP5940NWD3MS63W - 4000K9400631491500120103
CYP5940NWD3VB163W - 4000K9400631491607120103
CYP5940NWD3VB263W - 4000K9400631491607120103
CYP5940NWDA363W - 4000K9400631491500120103
CYP5940NWDA3MD63W - 4000K9400631491500120103
CYP5940NWDA3VB363W - 4000K9400631491607120103
CYP5940NWDD363W - 4000K9400631491500120103
CYP5940NWDD3MD63W - 4000K9400631491500120103
CYP5940NWDD3VB363W - 4000K9400631491607120103
CYP5940NWDM363W - 4000K9400631491500120103
CYP5940NWDM3MD63W - 4000K9400631491500120103
CYP5940NWDM3VB363W - 4000K9400631491607120103
CYP5940NWDMD63W - 4000K9400631491500120103
CYP5940NWDVB363W - 4000K9400631491607120103
CYP5940NWM363W - 4000K9400631491500120103
CYP5940NWM3MS63W - 4000K9400631491500120103
CYP5940NWM3VB163W - 4000K9400631491607120103
CYP5940NWM3VB263W - 4000K9400631491607120103
CYP5940NWMS63W - 4000K9400631491500120103
CYP5940NWVB163W - 4000K9400631491607120103
CYP5940NWVB263W - 4000K9400631491607120103
