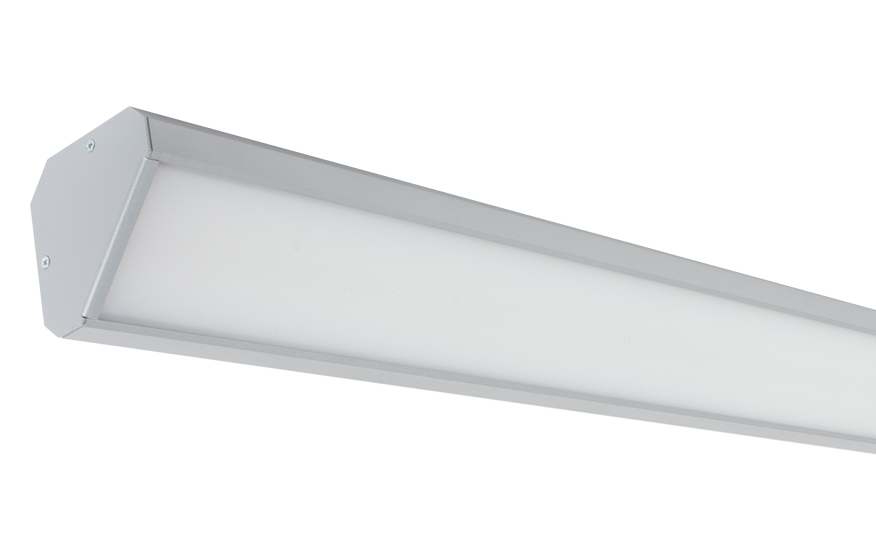

CORNICE

Surface or Corner Mount Luminaire

  • Corner mounted profile suitable for corridor and walkway areas
  • Suspended mounting option available
  • Integrated emergency option available
  • CRI: Ra>80
  • Extruded aluminium body finished in white (RAL 9016) or grey (RAL 9006)
  • Opal Polycarbonate TP(a) diffuser
  • Rear or 2x side cable entry
  • Supplied in neutral white (4000K) LED
  • Up to 111 lumens per Watt efficacy
7 Years Warranty2 Years On-Site Warranty (T&C`s Apply)Vision ConnectVision Connect ProVision AirVision Air Pro
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Product Leaflet
Instruction leaflet
Polar Curve
Photometric Data
Order Code Description lm W lm/W Dia(mm) H(mm) L(mm) W(mm) D(mm)
COR3240NWG 23W - 4000K - Grey 2400 23 104 0 0 875 101 64
COR3240NWGA3 23W - 4000K - Grey 2400 23 104 0 0 875 101 64
COR3240NWGD 23W - 4000K - Grey 2400 23 104 0 0 875 101 64
COR3240NWGD3 23W - 4000K - Grey 2400 23 104 0 0 875 101 64
COR3240NWGDA3 23W - 4000K - Grey 2400 23 104 0 0 875 101 64
COR3240NWGDD3 23W - 4000K - Grey 2400 23 104 0 0 875 101 64
COR3240NWGDM3 23W - 4000K - Grey 2400 23 104 0 0 875 101 64
COR3240NWGM3 23W - 4000K - Grey 2400 23 104 0 0 875 101 64
COR3240NWW 23W - 4000K - White 2400 23 104 0 0 875 101 64
COR3240NWWA3 23W - 4000K - White 2400 23 104 0 0 875 101 64
COR3240NWWD 23W - 4000K - White 2400 23 104 0 0 875 101 64
COR3240NWWD3 23W - 4000K - White 2400 23 104 0 0 875 101 64
COR3240NWWDA3 23W - 4000K - White 2400 23 104 0 0 875 101 64
COR3240NWWDD3 23W - 4000K - White 2400 23 104 0 0 875 101 64
COR3240NWWDM3 23W - 4000K - White 2400 23 104 0 0 875 101 64
COR3240NWWM3 23W - 4000K - White 2400 23 104 0 0 875 101 64
COR4300NWG 28W - 4000K - Grey 3000 28 107 0 0 1165 101 64
COR4300NWGA3 28W - 4000K - Grey 3000 28 107 0 0 1165 101 64
COR4300NWGD 28W - 4000K - Grey 3000 28 107 0 0 1165 101 64
COR4300NWGD3 28W - 4000K - Grey 3000 28 107 0 0 1165 101 64
COR4300NWGDA3 28W - 4000K - Grey 3000 28 107 0 0 1165 101 64
COR4300NWGDD3 28W - 4000K - Grey 3000 28 107 0 0 1165 101 64
COR4300NWGDM3 28W - 4000K - Grey 3000 28 107 0 0 1165 101 64
COR4300NWGM3 28W - 4000K - Grey 3000 28 107 0 0 1165 101 64
COR4300NWW 28W - 4000K - White 3000 28 107 0 0 1165 101 64
COR4300NWWA3 28W - 4000K - White 3000 28 107 0 0 1165 101 64
COR4300NWWD 28W - 4000K - White 3000 28 107 0 0 1165 101 64
COR4300NWWD3 28W - 4000K - White 3000 28 107 0 0 1165 101 64
COR4300NWWDA3 28W - 4000K - White 3000 28 107 0 0 1165 101 64
COR4300NWWDD3 28W - 4000K - White 3000 28 107 0 0 1165 101 64
COR4300NWWDM3 28W - 4000K - White 3000 28 107 0 0 1165 101 64
COR4300NWWM3 28W - 4000K - White 3000 28 107 0 0 1165 101 64
COR5420NWG 38W - 4000K - Grey 4200 38 111 0 0 1455 101 64
COR5420NWGA3 38W - 4000K - Grey 4200 38 111 0 0 1455 101 64
COR5420NWGD 38W - 4000K - Grey 4200 38 111 0 0 1455 101 64
COR5420NWGD3 38W - 4000K - Grey 4200 38 111 0 0 1455 101 64
COR5420NWGDA3 38W - 4000K - Grey 4200 38 111 0 0 1455 101 64
COR5420NWGDD3 38W - 4000K - Grey 4200 38 111 0 0 1455 101 64
COR5420NWGDM3 38W - 4000K - Grey 4200 38 111 0 0 1455 101 64
COR5420NWGM3 38W - 4000K - Grey 4200 38 111 0 0 1455 101 64
COR5420NWW 38W - 4000K - White 4200 38 111 0 0 1455 101 64
COR5420NWWA3 38W - 4000K - White 4200 38 111 0 0 1455 101 64
COR5420NWWD 38W - 4000K - White 4200 38 111 0 0 1455 101 64
COR5420NWWD3 38W - 4000K - White 4200 38 111 0 0 1455 101 64
COR5420NWWDA3 38W - 4000K - White 4200 38 111 0 0 1455 101 64
COR5420NWWDD3 38W - 4000K - White 4200 38 111 0 0 1455 101 64
COR5420NWWDM3 38W - 4000K - White 4200 38 111 0 0 1455 101 64
COR5420NWWM3 38W - 4000K - White 4200 38 111 0 0 1455 101 64
