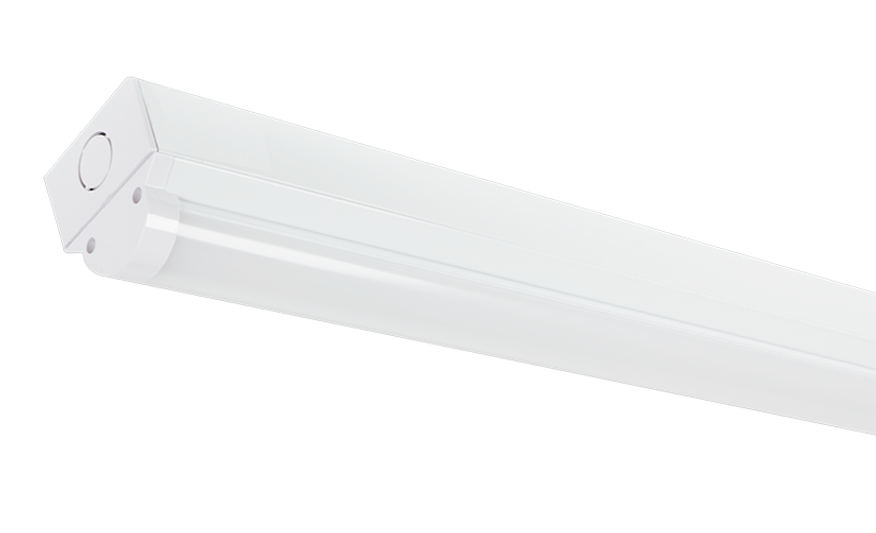

TBX

High Performance Batten

Suitable for general use in industrial-warehousing or commercial applications
Gear options including DALI and emergency available
CRI: Ra>80
Steel body finished in white (RAL 9010)
Opal diffuser for wide beam distribution
Opal Polycarbonate TP(a) diffuser
Integral driver
Polycarbonate end caps
Supplied in neutral white (4000K) LED
Up to 156 lumens per Watt efficacy

≤10K lm

≤69 W

≤156 lm/W

Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Colour Temperature (CCTK)

Vision Controls

Emergency

DALI

Order Code	Description	lm	W	lm/W	L(mm)	W(mm)	D(mm)
TBX2140NW	9W - 4000K	1400	9	156	600	55	58
TBX2140NWD	9W - 4000K	1400	9	156	600	55	58
TBX2140NWDVB3	9W - 4000K	1400	9	156	707	55	58
TBX2140NWVB1	9W - 4000K	1400	9	156	707	55	58
TBX2140NWVB2	9W - 4000K	1400	9	156	707	55	58
TBX4250NW	16W - 4000K	2500	16	156	1200	55	58
TBX4250NWA3	16W - 4000K	2500	16	156	1200	55	58
TBX4250NWA3VB1	16W - 4000K	2500	16	156	1307	55	58
TBX4250NWA3VB2	16W - 4000K	2500	16	156	1307	55	58
TBX4250NWD	16W - 4000K	2500	16	156	1200	55	58
TBX4250NWD3	16W - 4000K	2500	16	156	1200	55	58
TBX4250NWD3VB1	16W - 4000K	2500	16	156	1307	55	58
TBX4250NWD3VB2	16W - 4000K	2500	16	156	1307	55	58
TBX4250NWDA3	16W - 4000K	2500	16	156	1200	55	58
TBX4250NWDA3VB3	16W - 4000K	2500	16	156	1307	55	58
TBX4250NWDD3	16W - 4000K	2500	16	156	1200	55	58
TBX4250NWDD3VB3	16W - 4000K	2500	16	156	1307	55	58
TBX4250NWDM3	16W - 4000K	2500	16	156	1200	55	58
TBX4250NWDM3VB3	16W - 4000K	2500	16	156	1307	55	58
TBX4250NWDVB3	16W - 4000K	2500	16	156	1307	55	58
TBX4250NWM3	16W - 4000K	2500	16	156	1200	55	58
TBX4250NWM3VB1	16W - 4000K	2500	16	156	1307	55	58
TBX4250NWM3VB2	16W - 4000K	2500	16	156	1307	55	58
TBX4250NWVB1	16W - 4000K	2500	16	156	1307	55	58
TBX4250NWVB2	16W - 4000K	2500	16	156	1307	55	58
TBX5400NW	27W - 4000K	4000	27	148	1500	55	58
TBX5400NWA3	27W - 4000K	4000	27	148	1500	55	58
TBX5400NWA3VB1	27W - 4000K	4000	27	148	1607	55	58
TBX5400NWA3VB2	27W - 4000K	4000	27	148	1607	55	58
TBX5400NWD	27W - 4000K	4000	27	148	1500	55	58
TBX5400NWD3	27W - 4000K	4000	27	148	1500	55	58
TBX5400NWD3VB1	27W - 4000K	4000	27	148	1607	55	58
TBX5400NWD3VB2	27W - 4000K	4000	27	148	1607	55	58
TBX5400NWDA3	27W - 4000K	4000	27	148	1500	55	58
TBX5400NWDA3VB3	27W - 4000K	4000	27	148	1607	55	58
TBX5400NWDD3	27W - 4000K	4000	27	148	1500	55	58
TBX5400NWDD3VB3	27W - 4000K	4000	27	148	1607	55	58
TBX5400NWDM3	27W - 4000K	4000	27	148	1500	55	58
TBX5400NWDM3VB3	27W - 4000K	4000	27	148	1607	55	58
TBX5400NWDVB3	27W - 4000K	4000	27	148	1607	55	58
TBX5400NWM3	27W - 4000K	4000	27	148	1500	55	58
TBX5400NWM3VB1	27W - 4000K	4000	27	148	1607	55	58
TBX5400NWM3VB2	27W - 4000K	4000	27	148	1607	55	58
TBX5400NWVB1	27W - 4000K	4000	27	148	1607	55	58
TBX5400NWVB2	27W - 4000K	4000	27	148	1607	55	58
TBX4450NW	31W - 4000K	4500	31	145	1200	55	58
TBX4450NWA3	31W - 4000K	4500	31	145	1200	55	58
TBX4450NWA3VB1	31W - 4000K	4500	31	145	1307	55	58
TBX4450NWA3VB2	31W - 4000K	4500	31	145	1307	55	58
TBX4450NWD	31W - 4000K	4500	31	145	1200	55	58
TBX4450NWD3	31W - 4000K	4500	31	145	1200	55	58
TBX4450NWD3VB1	31W - 4000K	4500	31	145	1307	55	58
TBX4450NWD3VB2	31W - 4000K	4500	31	145	1307	55	58
TBX4450NWDA3	31W - 4000K	4500	31	145	1200	55	58
TBX4450NWDA3VB3	31W - 4000K	4500	31	145	1307	55	58
TBX4450NWDD3	31W - 4000K	4500	31	145	1200	55	58
TBX4450NWDD3VB3	31W - 4000K	4500	31	145	1307	55	58
TBX4450NWDM3	31W - 4000K	4500	31	145	1200	55	58
TBX4450NWDM3VB3	31W - 4000K	4500	31	145	1307	55	58
TBX4450NWDVB3	31W - 4000K	4500	31	145	1307	55	58
TBX4450NWM3	31W - 4000K	4500	31	145	1200	55	58
TBX4450NWM3VB1	31W - 4000K	4500	31	145	1307	55	58
TBX4450NWM3VB2	31W - 4000K	4500	31	145	1307	55	58
TBX4450NWVB1	31W - 4000K	4500	31	145	1307	55	58
TBX4450NWVB2	31W - 4000K	4500	31	145	1307	55	58
TBX6470NW	31W - 4000K	4700	31	152	1800	55	58
TBX6470NWA3	31W - 4000K	4700	31	152	1800	55	58
TBX6470NWA3VB1	31W - 4000K	4700	31	152	1907	55	58
TBX6470NWA3VB2	31W - 4000K	4700	31	152	1907	55	58
TBX6470NWD	31W - 4000K	4700	31	152	1800	55	58
TBX6470NWD3	31W - 4000K	4700	31	152	1800	55	58
TBX6470NWD3VB1	31W - 4000K	4700	31	152	1907	55	58
TBX6470NWD3VB2	31W - 4000K	4700	31	152	1907	55	58
TBX6470NWDA3	31W - 4000K	4700	31	152	1800	55	58
TBX6470NWDA3VB3	31W - 4000K	4700	31	152	1907	55	58
TBX6470NWDD3	31W - 4000K	4700	31	152	1800	55	58
TBX6470NWDD3VB3	31W - 4000K	4700	31	152	1907	55	58
TBX6470NWDM3	31W - 4000K	4700	31	152	1800	55	58
TBX6470NWDM3VB3	31W - 4000K	4700	31	152	1907	55	58
TBX6470NWDVB3	31W - 4000K	4700	31	152	1907	55	58
TBX6470NWM3	31W - 4000K	4700	31	152	1800	55	58
TBX6470NWM3VB1	31W - 4000K	4700	31	152	1907	55	58
TBX6470NWM3VB2	31W - 4000K	4700	31	152	1907	55	58
TBX6470NWVB1	31W - 4000K	4700	31	152	1907	55	58
TBX6470NWVB2	31W - 4000K	4700	31	152	1907	55	58
TBX5730NW	50W - 4000K	7300	50	146	1500	55	58
TBX5730NWA3	50W - 4000K	7300	50	146	1500	55	58
TBX5730NWA3VB1	50W - 4000K	7300	50	146	1607	55	58
TBX5730NWA3VB2	50W - 4000K	7300	50	146	1607	55	58
TBX5730NWD	50W - 4000K	7300	50	146	1500	55	58
TBX5730NWD3	50W - 4000K	7300	50	146	1500	55	58
TBX5730NWD3VB1	50W - 4000K	7300	50	146	1607	55	58
TBX5730NWD3VB2	50W - 4000K	7300	50	146	1607	55	58
TBX5730NWDA3	50W - 4000K	7300	50	146	1500	55	58
TBX5730NWDA3VB3	50W - 4000K	7300	50	146	1607	55	58
TBX5730NWDD3	50W - 4000K	7300	50	146	1500	55	58
TBX5730NWDD3VB3	50W - 4000K	7300	50	146	1607	55	58
TBX5730NWDM3	50W - 4000K	7300	50	146	1500	55	58
TBX5730NWDM3VB3	50W - 4000K	7300	50	146	1607	55	58
TBX5730NWDVB3	50W - 4000K	7300	50	146	1607	55	58
TBX5730NWM3	50W - 4000K	7300	50	146	1500	55	58
TBX5730NWM3VB1	50W - 4000K	7300	50	146	1607	55	58
TBX5730NWM3VB2	50W - 4000K	7300	50	146	1607	55	58
TBX5730NWVB1	50W - 4000K	7300	50	146	1607	55	58
TBX5730NWVB2	50W - 4000K	7300	50	146	1607	55	58
TBX61000NW	69W - 4000K	10000	69	145	1800	55	58
TBX61000NWA3	69W - 4000K	10000	69	145	1800	55	58
TBX61000NWA3VB1	69W - 4000K	10000	69	145	1907	55	58
TBX61000NWA3VB2	69W - 4000K	10000	69	145	1907	55	58
TBX61000NWD	69W - 4000K	10000	69	145	1800	55	58
TBX61000NWD3	69W - 4000K	10000	69	145	1800	55	58
TBX61000NWD3VB1	69W - 4000K	10000	69	145	1907	55	58
TBX61000NWD3VB2	69W - 4000K	10000	69	145	1907	55	58
TBX61000NWDA3	69W - 4000K	10000	69	145	1800	55	58
TBX61000NWDA3VB3	69W - 4000K	10000	69	145	1907	55	58
TBX61000NWDD3	69W - 4000K	10000	69	145	1800	55	58
TBX61000NWDD3VB3	69W - 4000K	10000	69	145	1907	55	58
TBX61000NWDM3	69W - 4000K	10000	69	145	1800	55	58
TBX61000NWDM3VB3	69W - 4000K	10000	69	145	1907	55	58
TBX61000NWDVB3	69W - 4000K	10000	69	145	1907	55	58
TBX61000NWM3	69W - 4000K	10000	69	145	1800	55	58
TBX61000NWM3VB1	69W - 4000K	10000	69	145	1907	55	58
TBX61000NWM3VB2	69W - 4000K	10000	69	145	1907	55	58
TBX61000NWVB1	69W - 4000K	10000	69	145	1907	55	58
TBX61000NWVB2	69W - 4000K	10000	69	145	1907	55	58
